Siemens 3SE50000AV04 3SE5000-0AV04 Actuator unit separate actuator Mechanical lock 1 pc(s)

A metallic milling attachment with angular form and precise cutting edges, suitable for CNC machining.

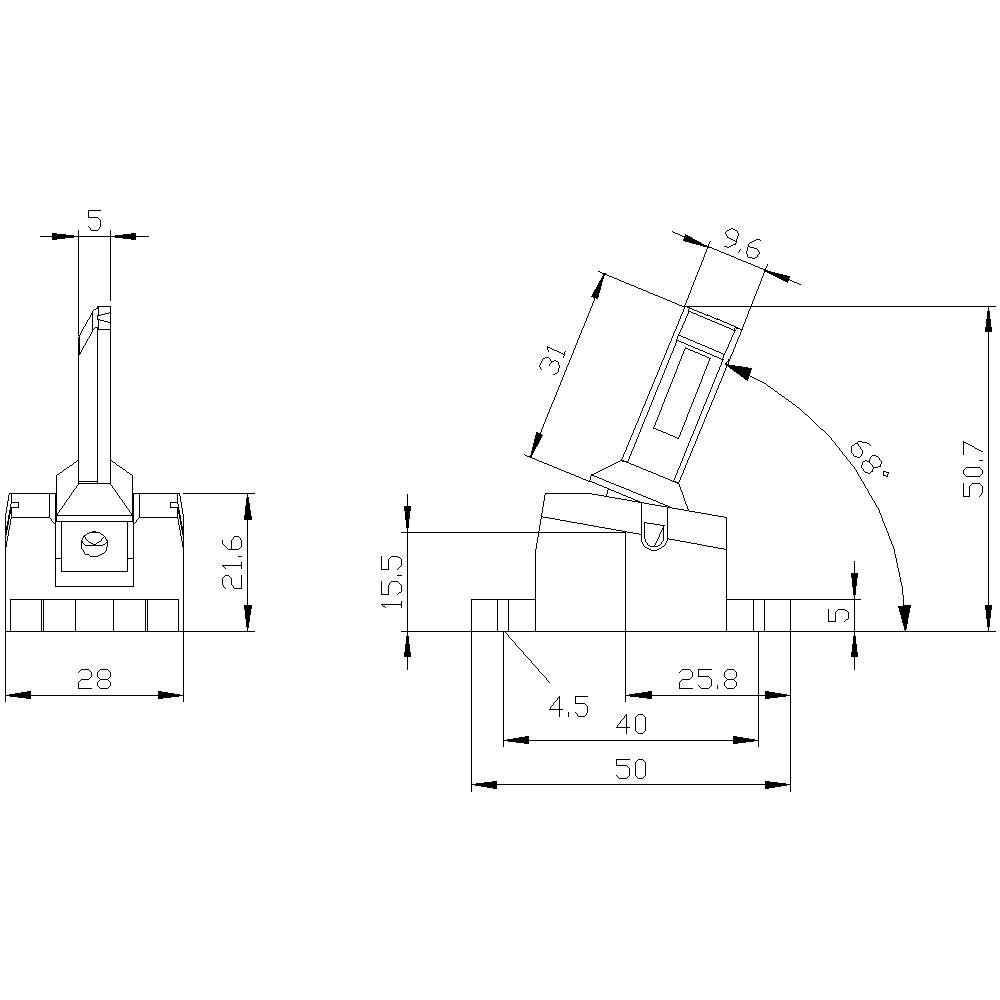

Technical drawing of a component with multiple dimensions and angles, including height 50.7 mm and angle 68 degrees.
1/2
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 32.99 / piece)
€ 32.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: screw fastening
Packaging type

Piece

Product type

Actuator unit

Connection

M12 plug

Operation type

separate actuator

Functions

Mechanical lock

Weight

83 g

Min. temperature

-25 °C

Max. temperature

+85 °C

Durability

1000000

Compatible with (details)

For position switches

Type

3SE5000-0AV04

Content

1 pc(s)

RoHS-compliant

Yes

None

None

None

Roller cam straight

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1746593 Siemens 3SE50000AV04 3SE5000-0AV04 Actuator unit separate actuator Mechanical lock 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1746593 Siemens 3SE50000AV04 3SE5000-0AV04 Actuator unit separate actuator Mechanical lock 1 pc(s)

Description

Position switch Plastic enclosure, 31 mm according to EN 50047 1 NO/1 NC quick action contacts with M12 connector, 5-pole, fixed 2x LED yellow/green 24 V DC Teflon plunger Pin assignment: Pin1=21, Pin2=22 Pin3=13 and LED green, Pin4=14 and LED yellow, Pin5=ground LED
