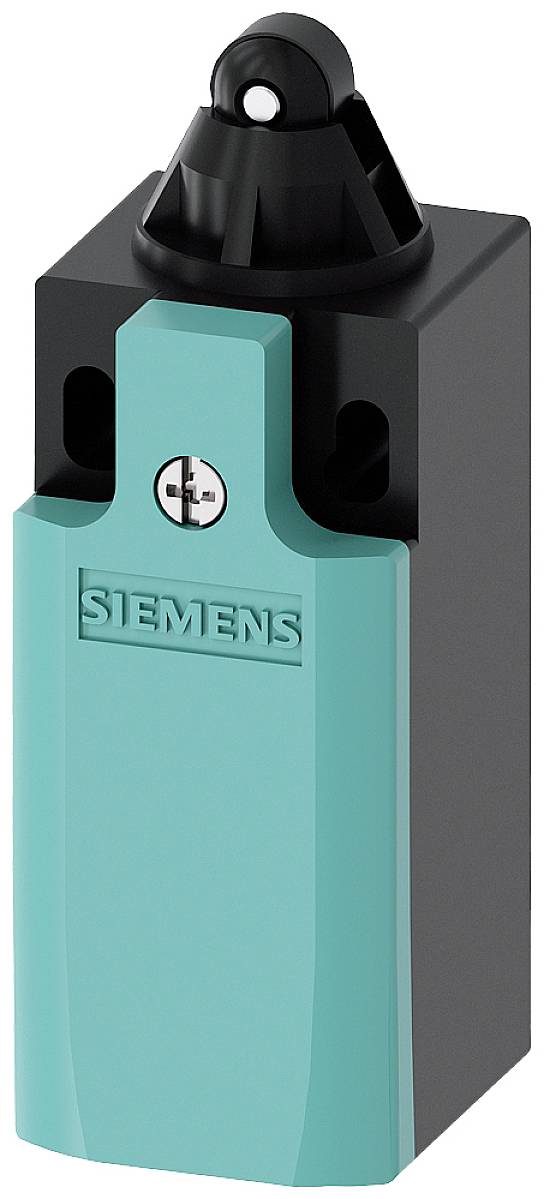

Name: Siemens 3SE52320HD03 3SE5232-0HD03 Door-operated switch 6 A Tappet, Plastic wheel IP65 1 pc(s)
Brand: Siemens
SKU: 1746394
Availability: InStock

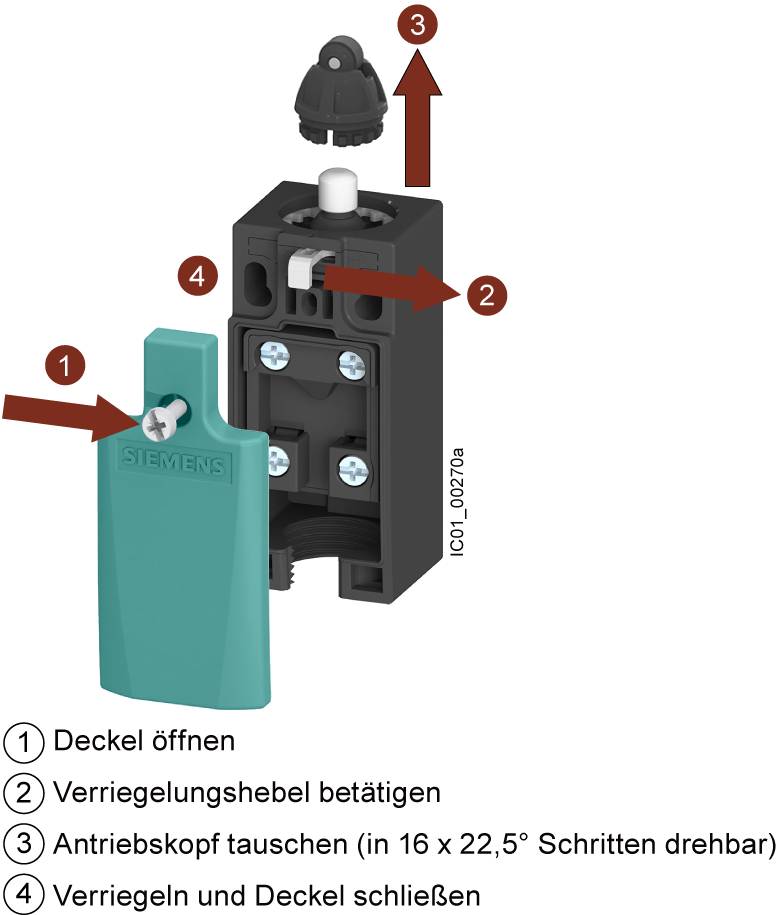

'Maintenance Instructions: 1. Open cover. 2. Activate locking lever. 3. Replace drive head. 4. Lock and close.'

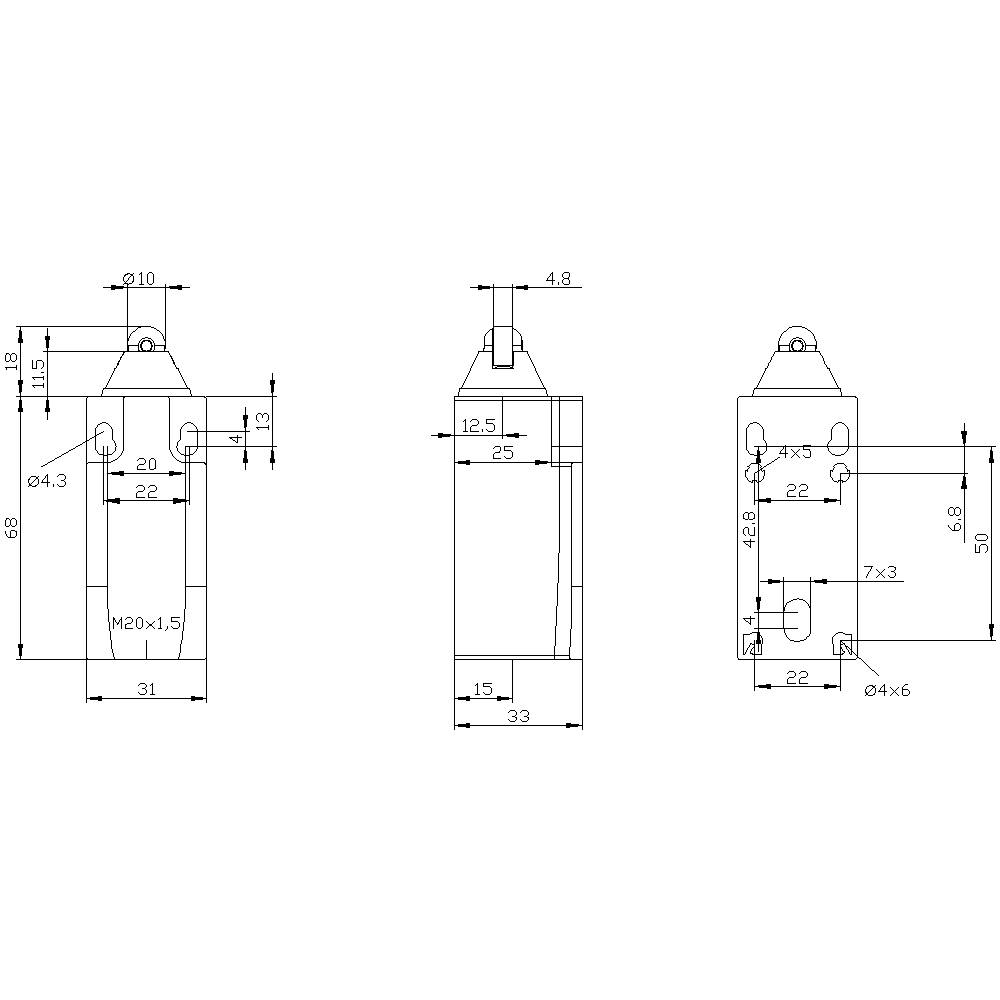

Technical drawing of a mechanical component with dimensions in millimetres. Three views: front view, side view, and top view.

1/3

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

22 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 31.99 / piece)

€ 31.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening
Number of switching contacts: 1
Operating frequency: 50/60 Hz
Isolation voltage: 400 V

Packaging type: Piece

Product type: Door-operated switch

Connection: Screws

Operation type: Tappet
Plastic wheel

Switching current (max.): 6 A

Contact type: 1 breaker
1 maker
1 change-over

Contact material: Silver alloy

Weight: 88 g

Actuating force: 20 N

Min. temperature: -25 °C

Max. temperature: +85 °C

: IP65

Thread size: M20 x 1.5

Durability: 15000000

Electrical lifespan: 100000

Material: Plastic

Width: 31 mm

Type: 3SE5232-0HD03

Content: 1 pc(s)

Dim: (L x W) 86 mm x 31 mm

RoHS-compliant: Yes

Length: 86 mm

: Quick-break switch

: Plastic

: TRUE

: Other

: FALSE

: None

: None

: None

: Cuboid

: IP65

: TRUE

: 1

: Roller cam

: None

: FALSE

: 6 A

: 0.55 A

: 3 A

: 31 mm

: 33 mm

: 86 mm

: FALSE

: -25-85 °C

: 1

: 1

: 0

: Roller cam straight

: 12

UKCA: yes
