Siemens 3SE52320KD03 3SE5232-0KD03 Door-operated switch 6 A Tappet, Plastic wheel IP65 1 pc(s)

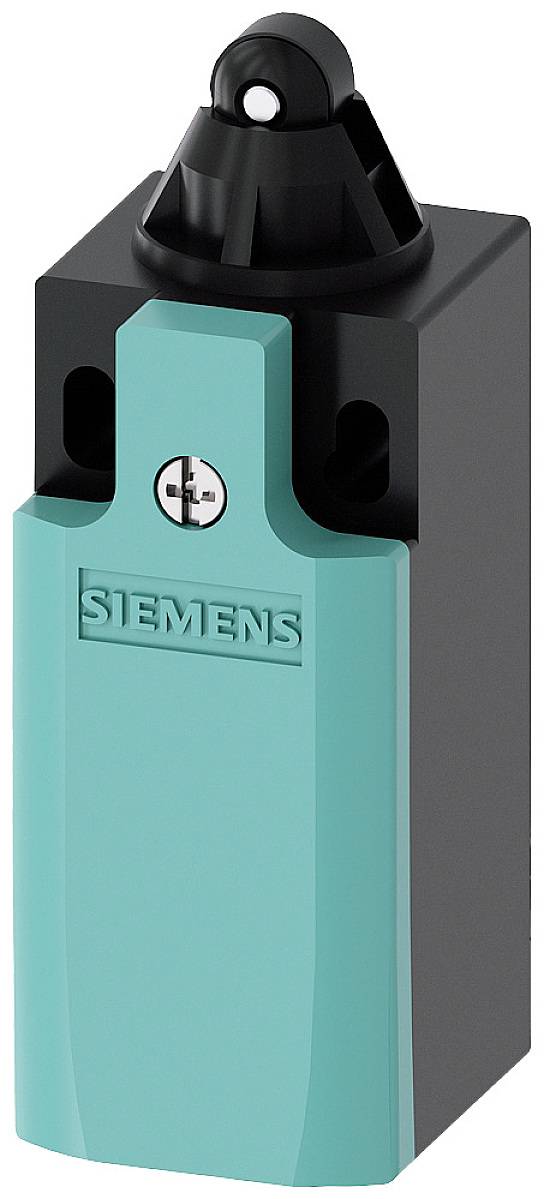

A green Siemens limit switch with a black roller lever, used for industrial applications to determine position.

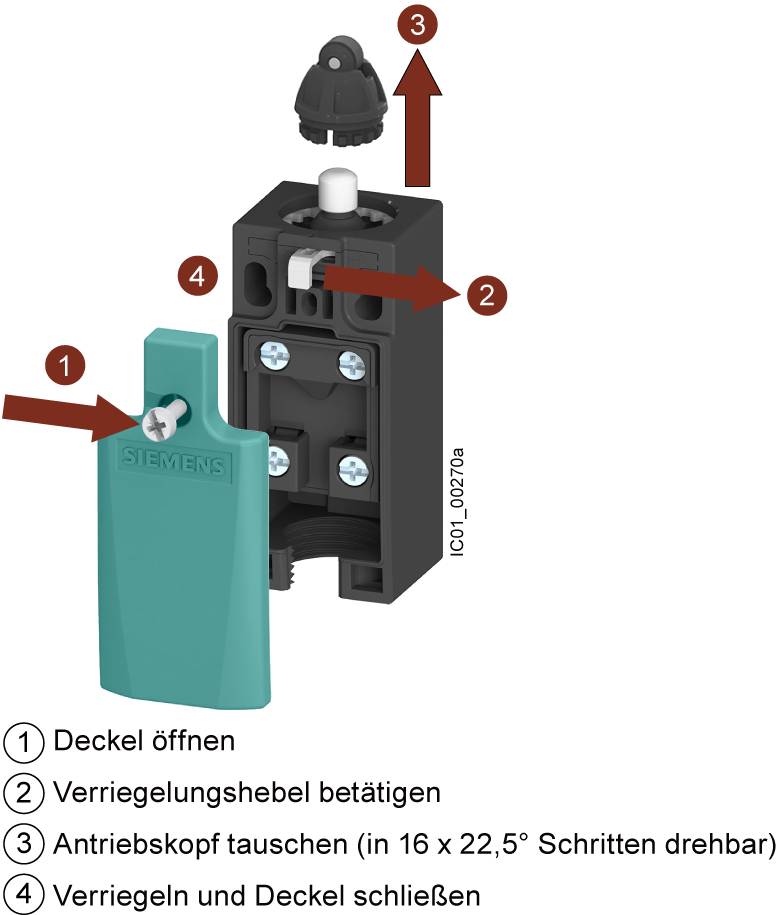

'Diagram for Operating and Locking a Device: 1) Open lid, 2) Activate lever, 3) Replace motor head, 4) Lock and close lid.'

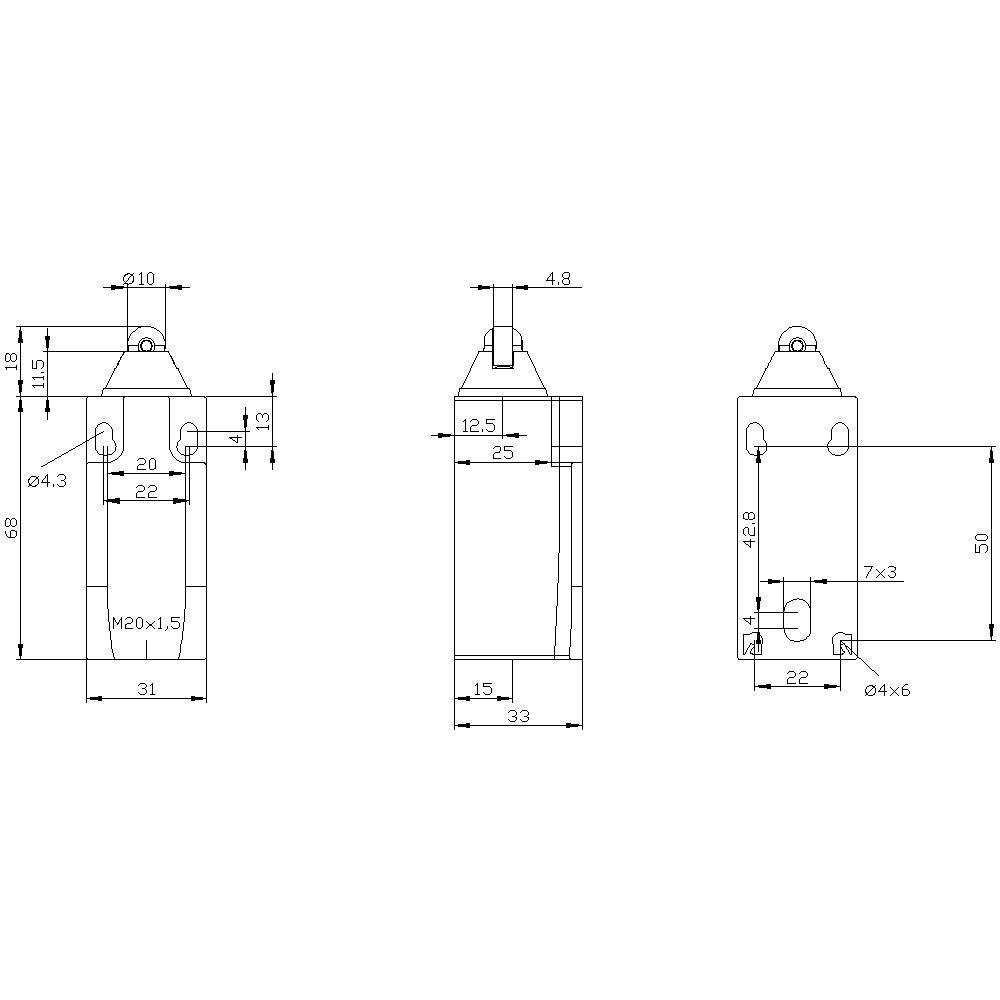

Technical drawing of a component with different views and dimensions. Shows precise measurements and specifications of the component.
1/3
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 33.99 / piece)
€ 33.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: screw fastening
  • Number of switching contacts: 2
  • Operating frequency: 50/60 Hz
  • Isolation voltage: 400 V
Packaging type

Piece

Product type

Door-operated switch

Connection

Screws

Operation type

Tappet

Plastic wheel

Switching current (max.)

6 A

Contact type

2 breakers

1 maker

1 change-over

Contact material

Silver alloy

Weight

90 g

Actuating force

20 N

Min. temperature

-25 °C

Max. temperature

+85 °C

IP65

Thread size

M20 x 1.5

Durability

15000000

Electrical lifespan

100000

Material

Plastic

Width

31 mm

Type

3SE5232-0KD03

Content

1 pc(s)

Dim

(L x W) 86 mm x 31 mm

RoHS-compliant

Yes

Length

86 mm

Slow-action switch

Plastic

TRUE

Other

FALSE

None

None

None

Cuboid

IP65

TRUE

2

Roller cam

None

FALSE

6 A

0.55 A

3 A

31 mm

33 mm

86 mm

FALSE

-25-85 °C

2

1

0

Roller cam straight

12

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1746406 Siemens 3SE52320KD03 3SE5232-0KD03 Door-operated switch 6 A Tappet, Plastic wheel IP65 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1746406 Siemens 3SE52320KD03 3SE5232-0KD03 Door-operated switch 6 A Tappet, Plastic wheel IP65 1 pc(s)

Conformity certificate

Conformity certificate 1746406 Siemens 3SE52320KD03 3SE5232-0KD03 Door-operated switch 6 A Tappet, Plastic wheel IP65 1 pc(s)

Description

Position switch Plastic enclosure according to EN 50047, 50 mm Device connection 2 x (M20 x 1.5) 1 NO/1 NC quick action contacts Teflon plunger
