Name: Siemens 3SE52320LU21 3SE5232-0LU21 Hinge switch 6 A Rotation actuator, Lever arm IP65 1 pc(s)
Brand: Siemens
SKU: 1746417
Availability: BackOrder

Yellow and black safety switch with cylinder operation, suitable for industrial applications.

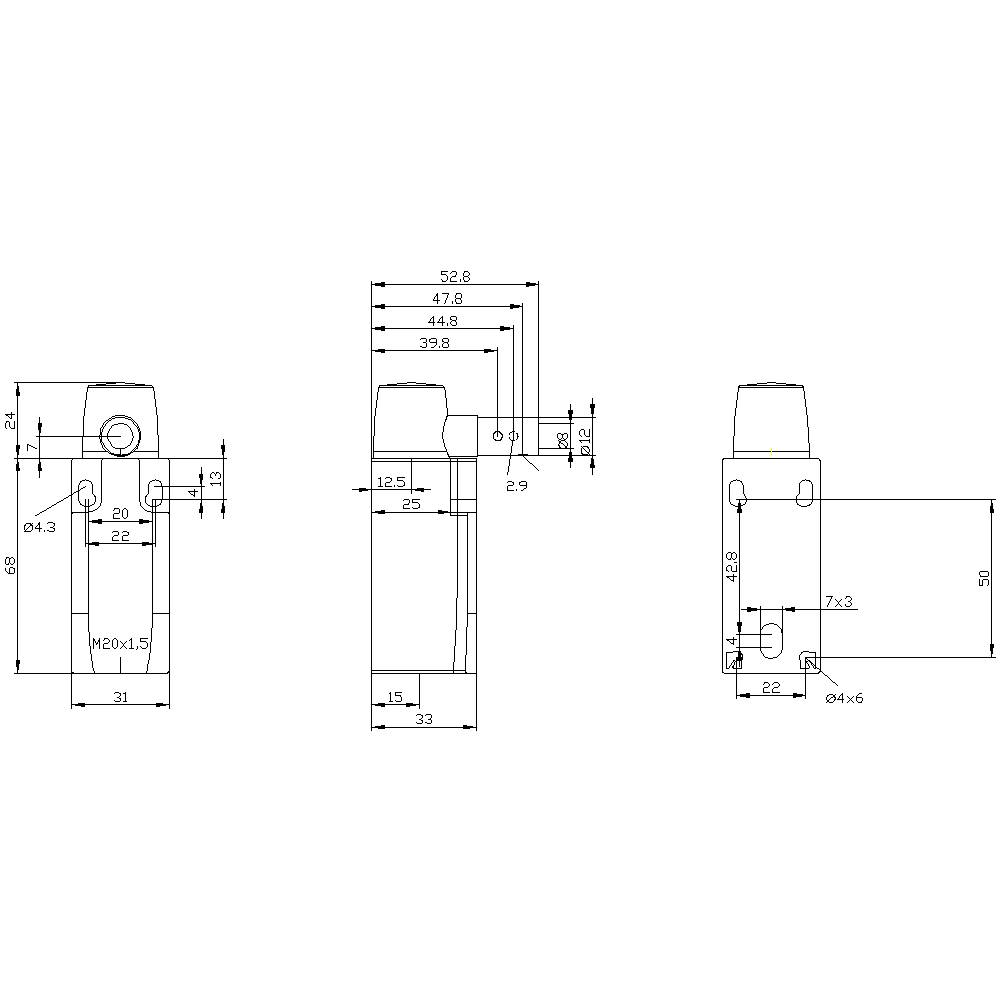

Technical drawing of a mechanical component with dimensions: height, width, and length specified. Detailed views with precise measurements.

1/2

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 65.99 / piece)

€ 65.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening
Number of switching contacts: 2
Operating frequency: 50/60 Hz
Isolation voltage: 400 V

Packaging type: Piece

Product type: Hinge switch

Connection: Screws

Operation type: Rotation actuator
Lever arm

Switching current (max.): 6 A

Contact type: 2 breakers
1 maker
1 change-over

Contact material: Silver alloy

Weight: 126 g

Min. temperature: -25 °C

Max. temperature: +85 °C

: IP65

Thread size: M20 x 1.5

Durability: 1000000

Electrical lifespan: 100000

Material: Plastic

Dim. (add. text): Casing

Width: 31 mm

Type: 3SE5232-0LU21

Content: 1 pc(s)

Dim: (L x W) 92 mm x 31 mm (Casing)

RoHS-compliant: Yes

Length: 92 mm

: Plastic

: TRUE

: Other

: FALSE

: None

: None

: None

: Cuboid

: IP65

: TRUE

: 2

: Hollow shaft

: None

: 6 A

: 0.55 A

: 3 A

: 31 mm

: 52.8 mm

: 92 mm

: -25-85 °C

: 2

: 1

: 0

: Roller cam straight

: 12

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Contact type

IP rating

Operation type

Packaging type

Switching current (max.)

Siemens 3SE52320LU21 3SE5232-0LU21 Hinge switch 6 A Rotation actuator, Lever arm IP65 1 pc(s)

Item no:1746417

Dispatches on Tue 10 Nov

Conrad Electronic

This article

2 breakers

IP65

Rotation actuator

Piece

6 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 65.99^*

Siemens 3SE22830GA43 3SE2283-0GA43 Hinge switch 2 A Rotary actuator IP65 1 pc(s)

Item no:1745903

Dispatches on Fri 13 Nov

Conrad Electronic

2 breakers

IP65

Rotary actuator

Piece

2 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 295.00^*

Siemens 3SE22830GA44 3SE2283-0GA44 Hinge switch 2 A Rotary actuator IP65 1 pc(s)

Item no:1745904

Dispatches on Tue 10 Nov

Conrad Electronic

2 breakers

IP65

Rotary actuator

Piece

2 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Siemens 3SE22830GA53 3SE2283-0GA53 Hinge switch 2 A Rotary actuator IP65 1 pc(s)

Item no:1745905

Dispatches on Tue 10 Nov

Conrad Electronic

2 breakers

IP65

Rotary actuator

2 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 295.00^*

Siemens 3SE22836GA43 3SE2283-6GA43 Hinge switch 2 A Rotary actuator IP65 1 pc(s)

Item no:1704541

Dispatches on Tue 10 Nov

Conrad Electronic

3 breakers

IP65

Rotary actuator

Piece

2 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 295.00^*

Siemens 3SE22836GA53 3SE2283-6GA53 Hinge switch 2 A Rotary actuator IP65 1 pc(s)

Item no:1704542

Dispatches on Fri 13 Nov

Conrad Electronic

3 breakers

IP65

Rotary actuator

Piece

2 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

Siemens 3SE51120LU21 3SE5112-0LU21 Hinge switch 6 A Rotation actuator momentary IP66, IP67 1 pc(s)

Item no:1747506

Dispatches on Tue 10 Nov

Conrad Electronic

2 breakers

IP66

Rotation actuator

Piece

6 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Siemens 3SE51120LU22 3SE5112-0LU22 Hinge switch 6 A Rotation actuator IP66, IP67 1 pc(s)

Item no:1747507

Dispatches on Tue 10 Nov

Conrad Electronic

2 breakers

IP66

Rotation actuator

Piece

6 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3SE51320LU21 3SE5132-0LU21 Hinge switch 6 A Rotation actuator IP66, IP67 1 pc(s)

Item no:1745488

Dispatches on Tue 10 Nov

Conrad Electronic

2 breakers

IP66

Rotation actuator

Piece

6 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Siemens 3SE51320LU22 3SE5132-0LU22 Hinge switch 6 A Rotation actuator Mechanical lock IP66, IP67 1 pc(s)

Item no:1748962

Dispatches on Tue 10 Nov

Conrad Electronic

2 breakers

IP66

Rotation actuator

Piece

6 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Documents & Downloads

Datasheet

Datasheet 1746417 Siemens 3SE52320LU21 3SE5232-0LU21 Hinge switch 6 A Rotation actuator, Lever arm IP65 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1746417 Siemens 3SE52320LU21 3SE5232-0LU21 Hinge switch 6 A Rotation actuator, Lever arm IP65 1 pc(s)

Description

Safety position switch with separate actuator Plastic enclosure, 31 mm according to EN 50047 1 NO/1 NC slow-action contacts with M12 connector, 5-pole, fixed and 2 LEDs yellow/green 24 V DC, 5 directions of approaches Pin assignment: Pin1=21, Pin2=22 Pin3=14 and LED green, Pin4=13 and LED yellow, Pin5=ground LED The matching separate actuator 3SE5000-0AV0. must be ordered separately
