Siemens 3SE71601AE00 3SE7160-1AE00 Pull cord switch Pull cord latch IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 432.77 / piece)
€ 432.77
plus VAT.
Technical specifications
- Isolation voltage: 400 V
- Impulse withstand voltage rated value: 6 kV
- Operating current: 2 A
- Packaging type
Piece
- Product type
Pull cord switch
- Connection
Screws
- Operation type
Pull cord
- Contact type
2 breakers
2 makers
- Contact material
Silver
- Functions
latch
- Weight
1218 g
- Factory colour
Black
Grey
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP65
- Thread size
M25
- Durability
100000
- Material
Metal
- Compatible with (details)
Cable lengths up to 2 x 100 m.
- Width
127 mm
- Type
3SE7160-1AE00
- Content
1 pc(s)

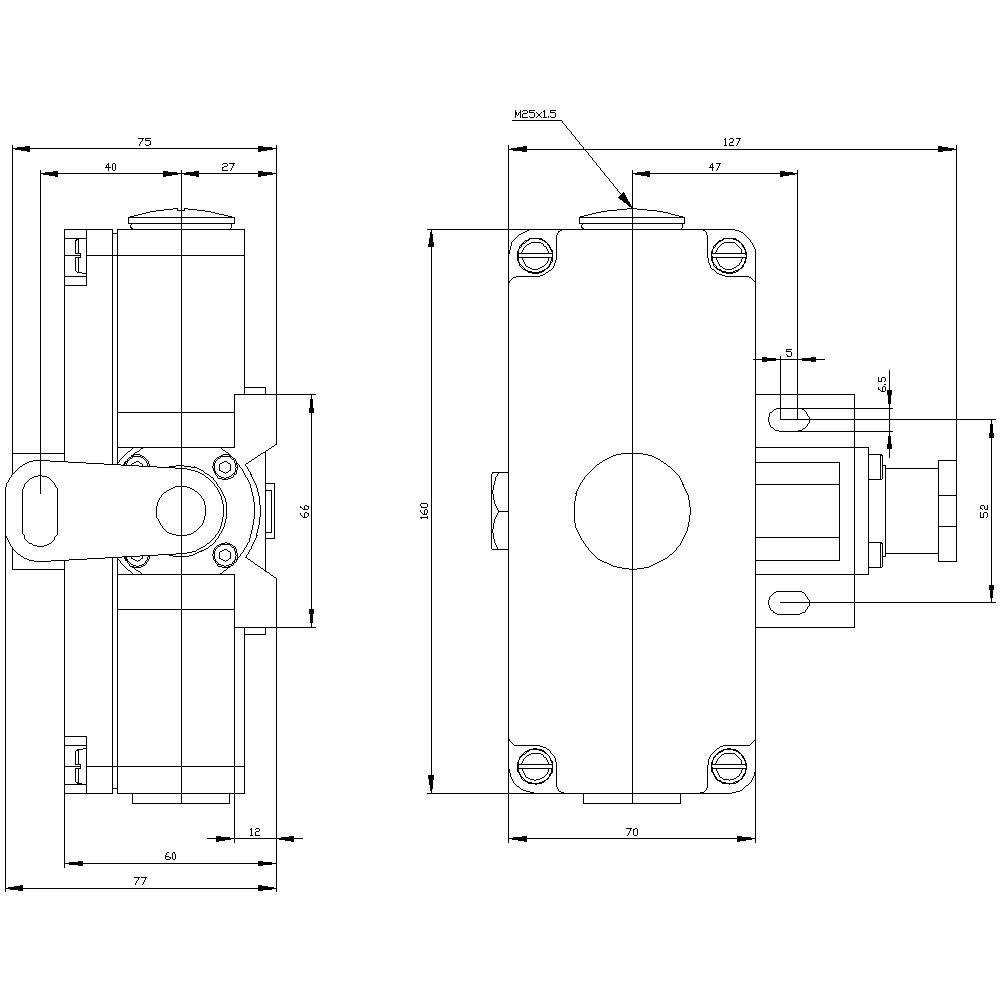

- Dim
(W x H x D) 127 x 160 x 77 mm
- RoHS-compliant
Yes
- Height
160 mm
- Depth
77 mm
-25--25 °C
IP65
200 m
2
2
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1740559 Siemens 3SE71601AE00 3SE7160-1AE00 Pull cord switch Pull cord latch IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1740559 Siemens 3SE71601AE00 3SE7160-1AE00 Pull cord switch Pull cord latch IP65 1 pc(s)
Description
Reversing starter 1 NO Size 00, AC-3, 4 kW/400 V 48 V AC 50/60 Hz 48 V AC 50/60 Hz AC operation AC operation
