Siemens 3SE71601AE04 3SE7160-1AE04 Pull cord switch Pull cord latch IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 525.21 / piece)
€ 525.21
plus VAT.
Technical specifications
- Isolation voltage: 400 V
- Impulse withstand voltage rated value: 6 kV
- Operating current: 6 A
- Product type
Pull cord switch
- Connection
Screws
- Operation type
Pull cord
- Contact type
2 breakers
2 makers
- Contact material
Silver
- Functions
latch
- Weight
1187 g
- Factory colour
Black
Grey
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP65
- Thread size
M25
- Durability
100000
- Material
Metal
- Compatible with (details)
Cable lengths up to 2 x 100 m.
- Width
127 mm
- Type
3SE7160-1AE04
- Content
1 pc(s)

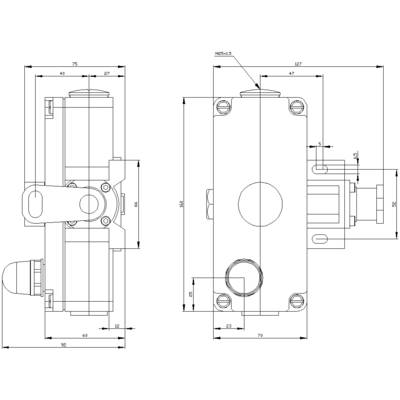

- Dim
(W x H x D) 127 x 160 x 92 mm
- RoHS-compliant
Yes
- Height
160 mm
- Depth
92 mm
-25--25 °C
IP65
200 m
2
2
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1740626 Siemens 3SE71601AE04 3SE7160-1AE04 Pull cord switch Pull cord latch IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1740626 Siemens 3SE71601AE04 3SE7160-1AE04 Pull cord switch Pull cord latch IP65 1 pc(s)
Description
Conveyor belt unbalance tracker Metal enclosure, 2 x M25 x 1.5 2 NO+2 NC, with latching according to EN ISO 13850 Pushbutton release
