Siemens 3SE7310-1AE04 3SE73101AE04 Misalignment sensor + kill switch (L x W x H) 206 x 135 x 160 mm EMERGENCY STOP Grey,

Safety limit switch with long lever arm and blue push button, used in industrial installations for position monitoring.

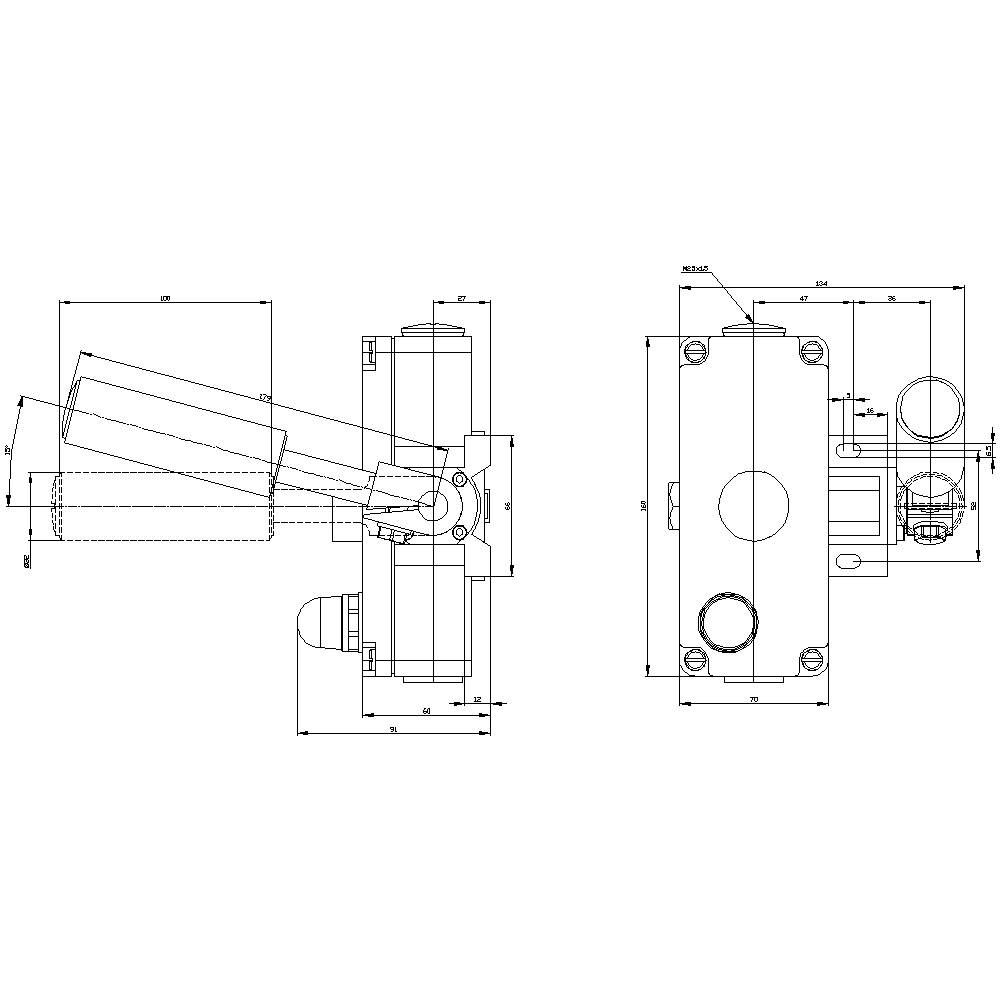

Technical drawing of a mechanical component with multiple views and dimensional specifications, showing details and measurements.
1/2
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 799.00 / piece)
€ 799.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

SAF. CABLE-OP. SW. 2NO + 2NC 115VAC MET.

Our service for you

Technical specifications

  • Mounting type: screw fastening
  • Isolation voltage: 400 V
Packaging type

Piece

Product type

Misalignment sensor

Switch/button features

+ kill switch

Type

2 x M25 x 1.5

Material

Metal

Factory colour

Grey

Black

Print motif

EMERGENCY STOP

Connection

Screws

Length

206 mm

Width

135 mm

Height

160 mm

Dim

(L x W x H) 206 x 135 x 160 mm

Switching current (max.)

6 A

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Content

1 pc(s)

Type

3SE7310-1AE04

RoHS-compliant

Yes

Grey

Metal

1

IP65

1

0

2

2

0

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 1740692 Siemens 3SE7310-1AE04 3SE73101AE04 Misalignment sensor + kill switch (L x W x H) 206 x 135 x 160 mm EMERGENCY STOP Grey,

User & Safety Instructions

User & Safety Instructions 1740692 Siemens 3SE7310-1AE04 3SE73101AE04 Misalignment sensor + kill switch (L x W x H) 206 x 135 x 160 mm EMERGENCY STOP Grey,

Description

Safety cable-operated switch Metal enclosure, 2 xM25 x 1.5 2 NO/2 NC, red LED, 115 V AC, with latching according to EN ISO 13850 Pushbutton release, 2-sided operation, for wire lengths up to 2x100 m
