Siemens 3SU10003EA100AA0 3SU1000-3EA10-0AA0 Toggle switch IP66, IP67, IP69/IP69K 1 pc(s)

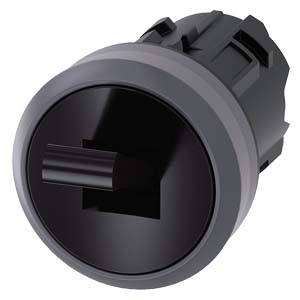

Black, round press button with a rectangular shape and a small handle in the centre for operation.
Cable car gondola in a modern terminal warehouse with a control panel in the foreground, surrounded by mountains on a sunny day.

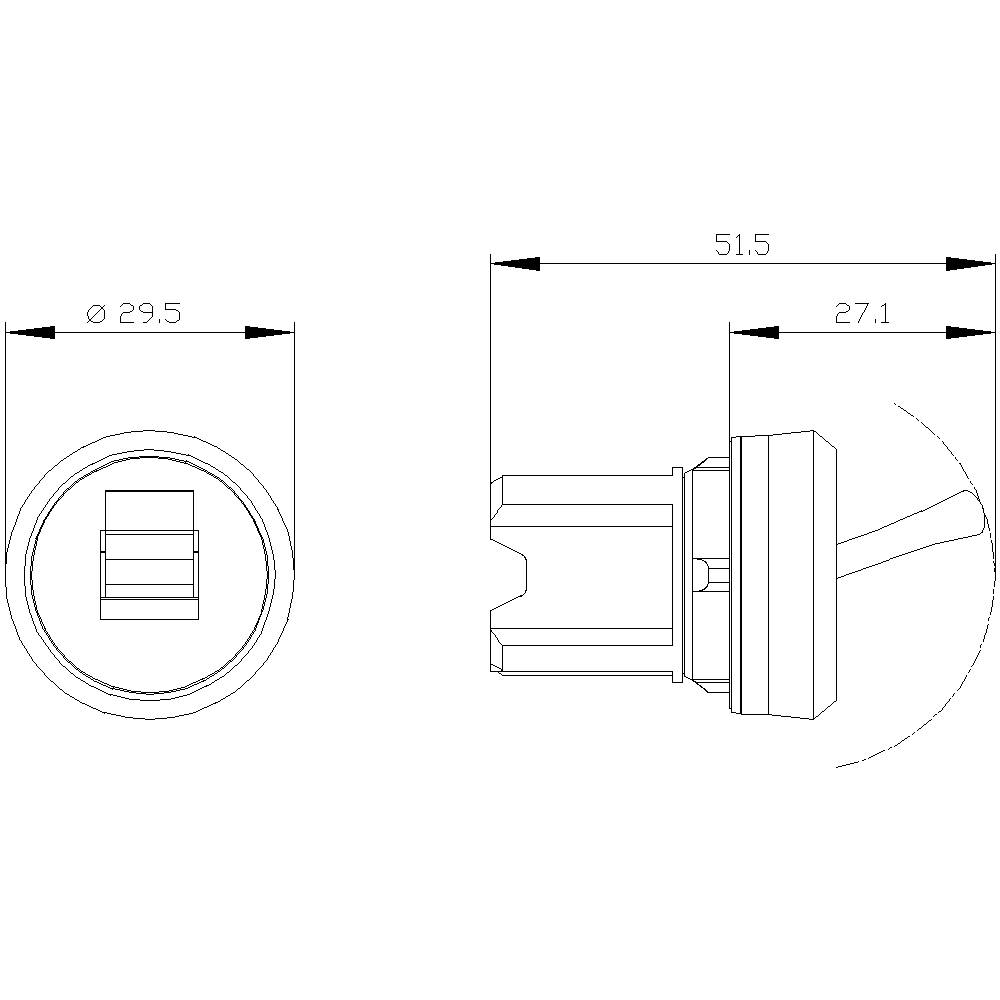

'Technical drawing of a round switch with dimensions: diameter 29.5 mm, length 51.5 mm. Side and top view.'
1/3
Image similar
Product type
Toggle switch
Casing/button colour
Black
Lighting type
None
Recess diameter
22.3 mm
IP rating
IP66
IP67
IP69/IP69K
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 21.99 / piece)
€ 21.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

EM. STOP MUSHROOM PUSHBUTTON, 40MM, RED

  • ()

Technical specifications

  • External diameter of actuator: 29.45 mm
  • Switching frequency max. 1800 1/h
  • Operating angle 75°
Product type

Toggle switch

Casing/button colour

Black

Type

Actuation/signaling element

Lighting type

None

Material

Plastic

Min. temperature

-25 °C

Max. temperature

+70 °C

Width

29.45 mm

Height

22.3 mm

Recess diameter

22.3 mm

Durability

1000000

Recess depth

26.3 mm

IP66

IP67

IP69/IP69K

Dim

(W x H) 29.45 mm x 22.3 mm

RoHS-compliant

Yes

Type

3SU1000-3EA10-0AA0

22.3 mm

2

FALSE

FALSE

Black

IP67/IP69K

29.45 mm

22.3 mm

Plastic

TRUE

Round

Other

Black

TRUE

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1705458 Siemens 3SU10003EA100AA0 3SU1000-3EA10-0AA0 Toggle switch IP66, IP67, IP69/IP69K 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1705458 Siemens 3SU10003EA100AA0 3SU1000-3EA10-0AA0 Toggle switch IP66, IP67, IP69/IP69K 1 pc(s)

Information

Information 1705458 Siemens 3SU10003EA100AA0 3SU1000-3EA10-0AA0 Toggle switch IP66, IP67, IP69/IP69K 1 pc(s)

Description

Emergency stop mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, latching according to EN ISO 13850, rotate-to-unlatch

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
