Name: Siemens 3SU1400-1AA10-1LA0 Contact module 1 maker 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 2862321
Availability: InStock

Black electrical switch with two circular openings, labelled '.3 NO' and '.4 NO', for controlling electrical circuits.

Cable car station with an orange gondola positioned at a modern terminal in a mountainous landscape. Control panel in the foreground.

A rectangular shape with two vertical lines: the left one labelled 'NO.3', the right one 'NO.4', shows an electrical switch.

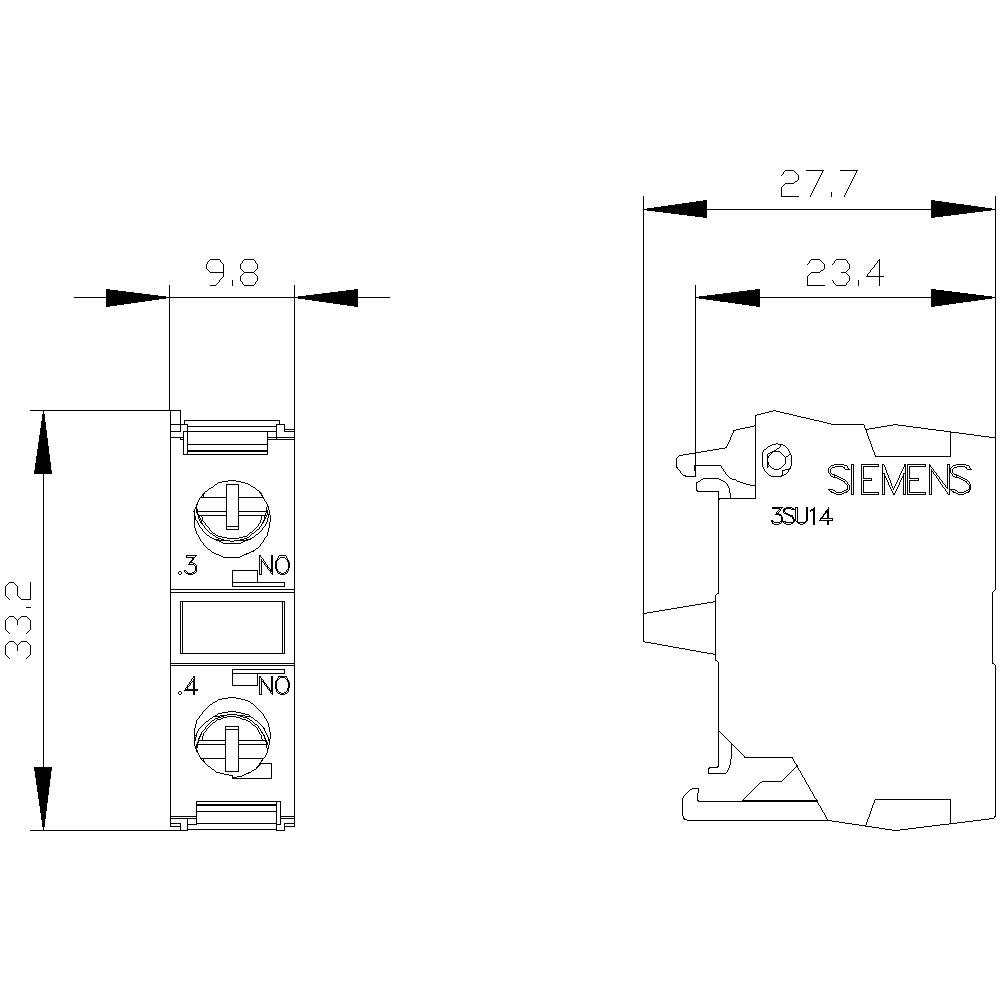

Technical drawing of a Siemens electrical switch with dimensions: height 33.2 mm, width 9.8 mm, depth 27.7 mm.

1/4

Image similar

Product type

Contact module

No. of pins

2-pin

Nominal voltage

500 V DC/AC

Connection

Screws

Type

3SU1400-1AA10-1LA0

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

2 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Switching frequency / maximum [1/h]: 3600Application area: For switching circuitsTightening torque / with screw connection / minimum: 0.8 NmTightening torque / for screw connection / maximum: 0.9 NmSurge voltage resistance: 6 kVPollution level 3Suitability for integration / pressure selector switch: YesSuitability for integration / Front element: YesSuitable for integration / hanging switch: YesSuitable for integration / hanging switch: YesProtection class IP / the connection terminal IP20Protection class IP / of housing: IP40Design of the contact / of the auxiliary contacts: Gold-platedInsulation voltage 500 VThermal current 10 AType of connectable wire cross-sections / for AWG lines: 2x (18 ... 14)Type of connectable wire cross-sections / single wire / with wire-end processing: 2x (0.5 ... 0.75 mm²Type of connectable wire cross-sections / single wire / without wire-end processing: 2x (1.0 ... 1.5 mm²Type of connectable wire cross-sections / fine wire / with wire-end processing: 2x (0.5 ... 1.5 mm²Type of connectable wire cross-sections / fine wire / without wire-end processing: 2x (1.0 ... 1.5 mm²

Product type: Contact module

Type: 3SU1400-1AA10-1LA0

No. of pins: 2-pin

Contact type: 1 maker

Contact material: Gold plated contacts

Auxiliary contact type: 1 maker

Nominal voltage: 500 V DC/AC

Switching voltage (max.): 500 V DC/AC

Permanent current (max.): 10 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Front

Connection: Screws

Electrical lifespan: 10000000

Durability: 10000000

Min. temperature: -25 °C

Max. temperature: +70 °C

Width: 9.8 mm

Height: 33.2 mm

Depth: 27.7 mm

Dim: (W x H x D) 9.8 x 33.2 x 27.7 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes

Variants(All information include VAT, plus shipping costs)

No. of pins

Nominal voltage

Siemens 3SU1400-1AA10-1LA0 Contact module 1 maker 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2862321

Fast track dispatch on Wed 14 Oct

2 Set(s)Conrad Electronic

This article

2-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Siemens 3SU1400-1AA10-1MA0 Contact module 1 breaker 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2862322

Fast track dispatch on Wed 14 Oct

38 Set(s)Conrad Electronic

1-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Siemens 3SU1400-1AA10-3DA0 Contact module 2 makers 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2862323

Fast track dispatch on Wed 14 Oct

3 Set(s)Conrad Electronic

2-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

Siemens 3SU1400-1AA10-3HA0 Contact module 1 breaker 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2862325

Fast track dispatch on Wed 14 Oct

10 Set(s)Conrad Electronic

1-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Siemens 3SU1400-1AA10-1DA0 Contact module 2 makers 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2260279

Unavailable

Conrad Electronic

2-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3SU1400-1AA10-1DA0 Contact module 2 makers 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2862320

Unavailable

10 Set(s)Conrad Electronic

2-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3SU1400-1AA10-1FA0 Contact module 500 V DC/AC Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:2260280

Unavailable

Conrad Electronic

2-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3SU1400-1AA10-1LA0 Contact module 1 maker 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2260281

Unavailable

Conrad Electronic

1-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3SU1400-1AA10-1MA0 Contact module 1 breaker 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2260282

Unavailable

Conrad Electronic

1-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3SU1400-1AA10-3DA0 Contact module 2 makers 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:2260283

Unavailable

Conrad Electronic

2-pin

500 V DC/AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2862321 Siemens 3SU1400-1AA10-1LA0 Contact module 1 maker 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2862321 Siemens 3SU1400-1AA10-1LA0 Contact module 1 maker 500 V DC/AC Compatible with (relay brand): Siemens 1 pc(s)

Description

Contact module with 1 switching element, 1S, gold-plated contacts, screw terminals, for front plate mounting contact module SIRIUS ACT for switching circuits.Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. Manual, 3D data, connection diagram) is available.Available designs: Various switching functions, various connection and mounting types, 1- and 2-pole.SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
