Siemens 3SU1401-1BF40-3AA0 LED module + LED Green Contact 230 V 1 pc(s)

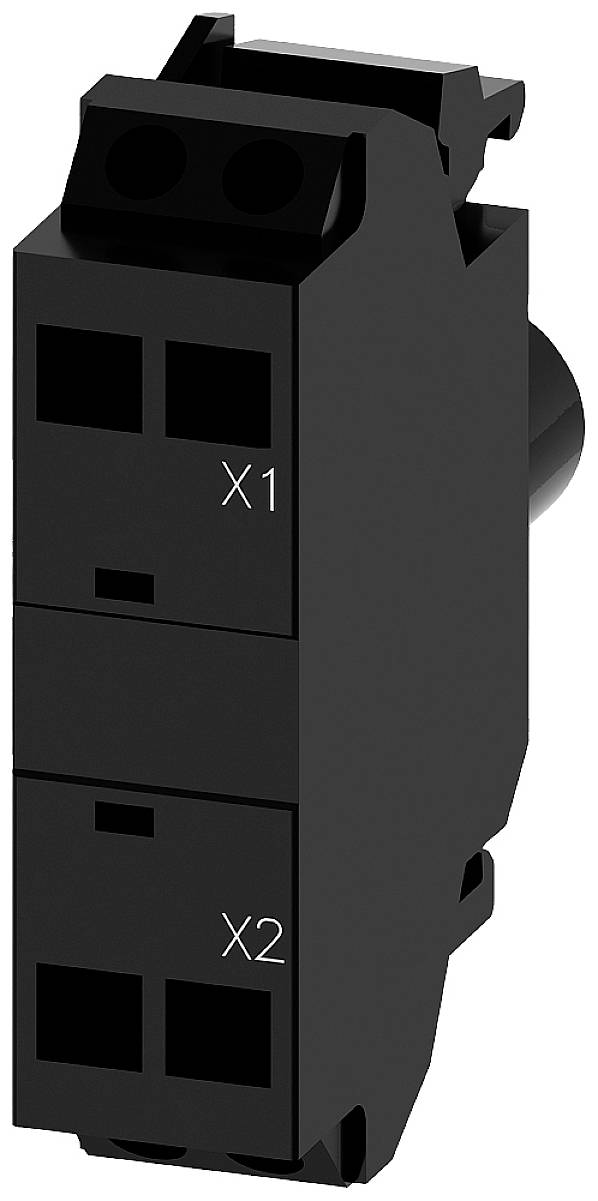

Black electrical switch with two buttons, labelled 'X1' and 'X2'. Designed for control or switching in electrical devices.
Cable car station with an orange gondola, emergency control panel in the foreground, panoramic mountain view in the background.
'Circuit diagram with LED and voltage indication -P 230 V AC.'

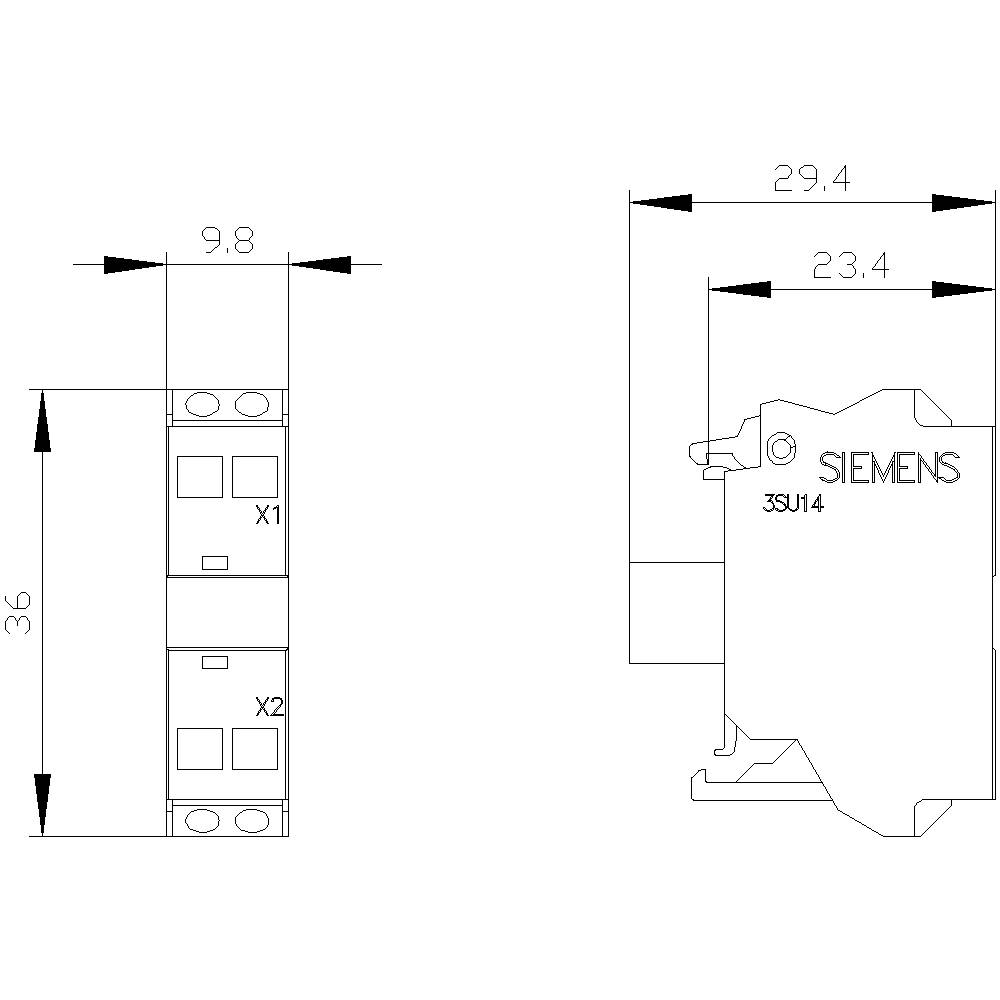

Technical drawing of a Siemens switch, showing dimensions: height 36 mm, width 9.8 mm, depth 29.4 mm.
1/4
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 17.99 / piece)
€ 17.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Maximum light intensity: 1400 mcd
  • Design of the electrical connection: Spring-loaded connection
Product type

LED module

Switch/button features

+ LED

Connection

Spring-loaded connector

Type

LED

Functions

Contact

Colour

Green

Switching voltage

230 V

Switching current (max.)

20 mA

IP40

Min. temperature

-25 °C

Max. temperature

+70 °C

Width

9.8 mm

Height

36 mm

Electrical lifespan

100000

Mounting type

Front panel fixed

Content

1 pc(s)

Dim

(W x H x D) 9.8 x 36 x 29.4 mm

RoHS-compliant

Yes

Weight

0.0088 kg

Depth

29.4 mm

Type

3SU1401-1BF40-3AA0

Factory colour

Multicolour

Light bulb included

Yes

None

FALSE

FALSE

TRUE

Green

LED

TRUE

Spring clamp connection

AC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1730662 Siemens 3SU1401-1BF40-3AA0 LED module + LED Green Contact 230 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730662 Siemens 3SU1401-1BF40-3AA0 LED module + LED Green Contact 230 V 1 pc(s)

Information

Information 1730662 Siemens 3SU1401-1BF40-3AA0 LED module + LED Green Contact 230 V 1 pc(s)

Description

Protective collar for mushroom pushbutton, 40 mm, 22 mm design, 360° metal Viewable from the side
