Siemens 3SU1401-2BF40-1AA0 LED module for floor mounting Green 230 V 1 pc(s)

A black switch with two round openings, marked with 'X1' and 'X2', visible on the front.
An orange cable car hangs in a cable car station with mechanical control elements in the foreground and a mountain view in the background.
'Circuit diagram with 230 V AC supply and diode. Connection X1 at the top, X2 at the bottom. Polarity -P. Diode symbol indicates current direction.'

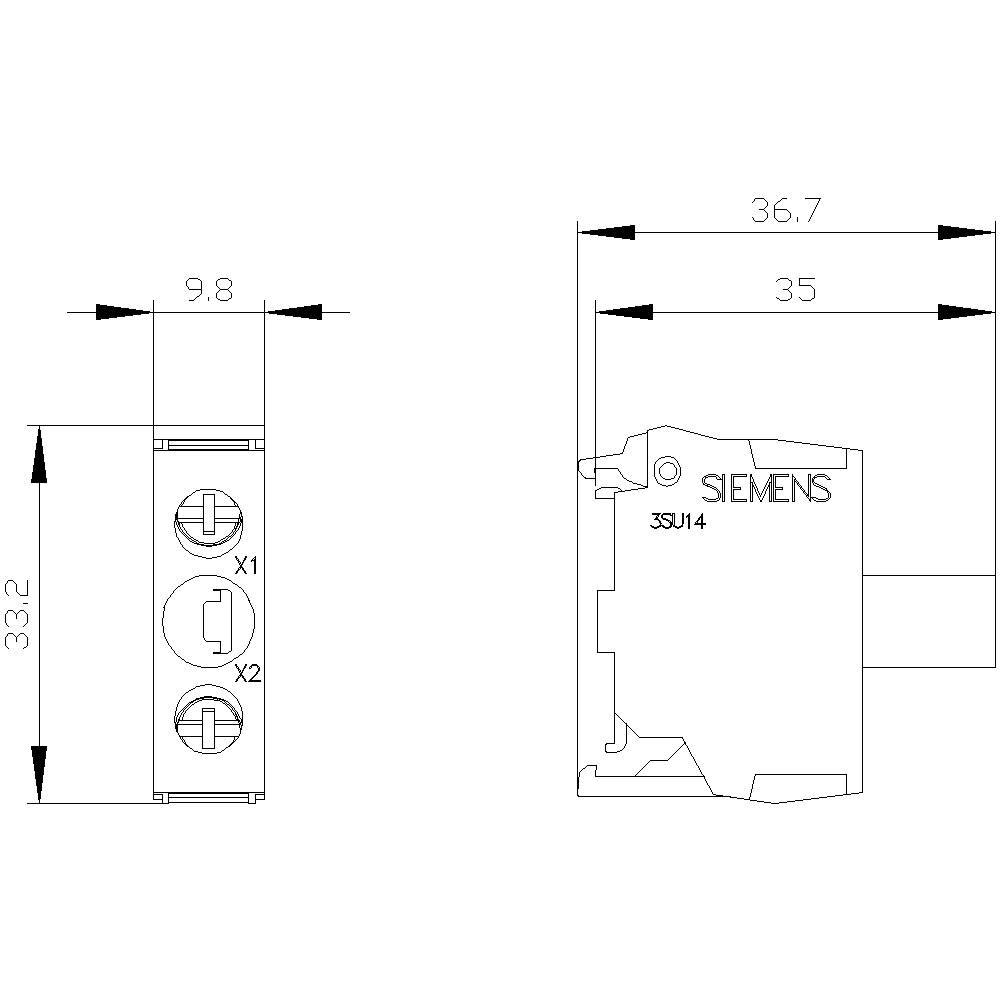

Technical drawing of an electrical component module with dimensions: Width 9.8 mm, Height 33.2 mm, Depth 36.7 mm. Marked with connectors X1 and X2.
1/4
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Maximum light intensity: 1400 mcd
  • Design of the Electrical Connection: screw terminals.
Product type

LED module

Switch/button features

for floor mounting

Type

LED

Colour

Green

Switching voltage

230 V

Switching current (max.)

20 mA

IP40

Min. temperature

-25 °C

Max. temperature

+70 °C

Width

9.8 mm

Height

33.2 mm

Electrical lifespan

100000

Mounting type

Floor fixed

Content

1 pc(s)

Dim

(W x H x D) 9.8 x 33.2 x 29.4 mm

RoHS-compliant

Yes

Weight

0.0120 kg

Depth

29.4 mm

Type

3SU1401-2BF40-1AA0

Factory colour

Multicolour

Light bulb included

Yes

None

FALSE

FALSE

TRUE

Green

LED

TRUE

Screw connection

AC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1731719 Siemens 3SU1401-2BF40-1AA0 LED module for floor mounting Green 230 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1731719 Siemens 3SU1401-2BF40-1AA0 LED module for floor mounting Green 230 V 1 pc(s)

Information

Information 1731719 Siemens 3SU1401-2BF40-1AA0 LED module for floor mounting Green 230 V 1 pc(s)

Description

Labeling plate for snapping on or gluing to label holder, label size 12.5x27mm, silver label, black font, with inscription:
