Siemens 3SU1401-2BF60-1AA0 LED module for floor mounting White 230 V 1 pc(s)

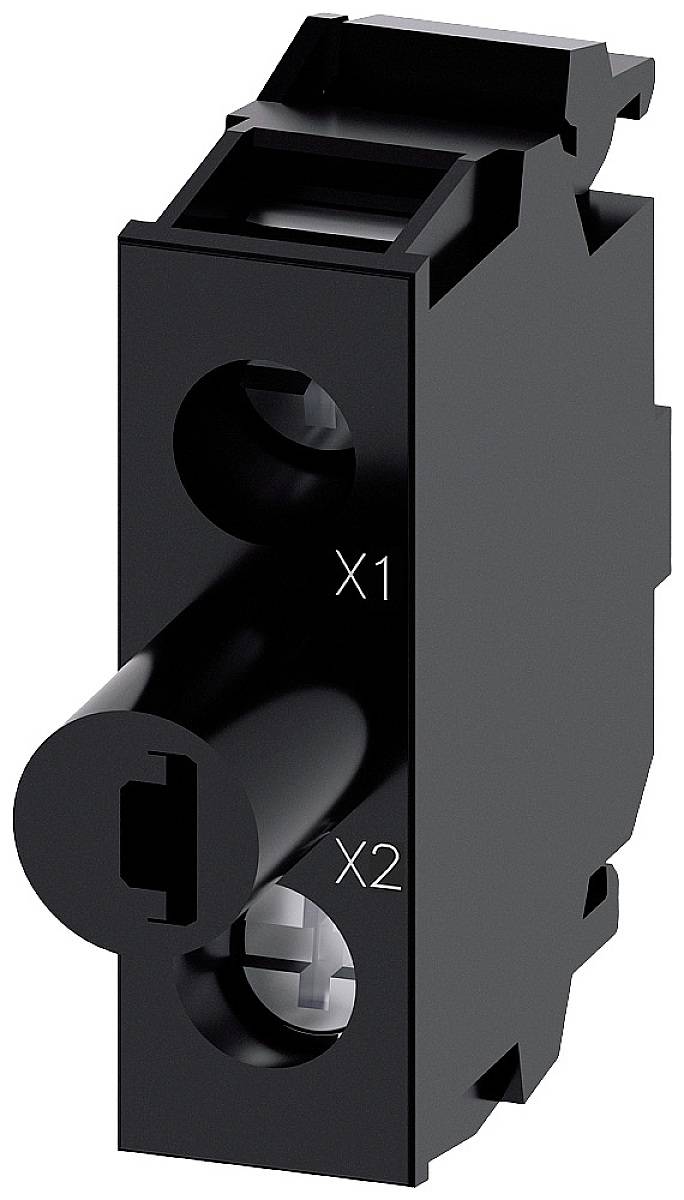

A black electrical component with two openings, labelled 'X1' and 'X2', likely a connection module or adapter.
Cable car gondola in a modern mountain station with a control panel in the foreground and a panoramic view of mountainous landscape in the background.

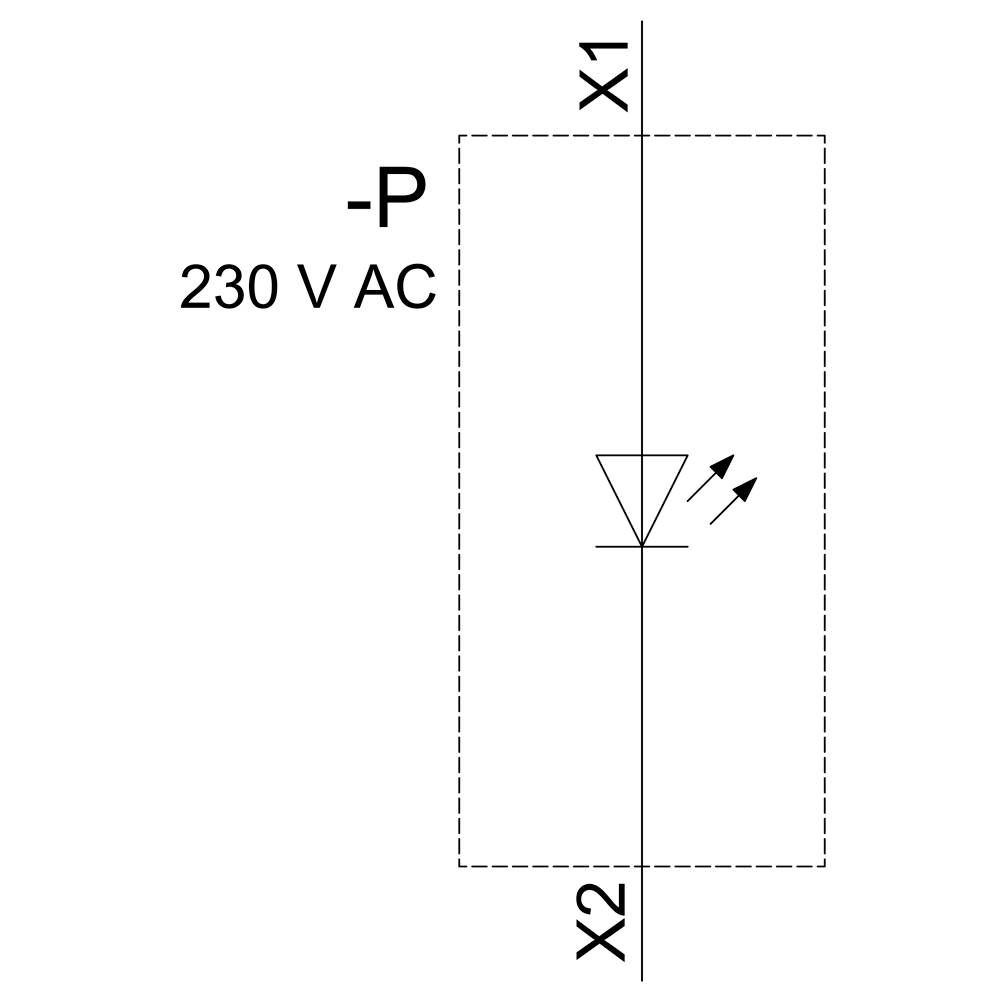

'Electronic control unit with symbolised diode, connected to 230 V AC, represented with X1 and X2 as connection terminals.'

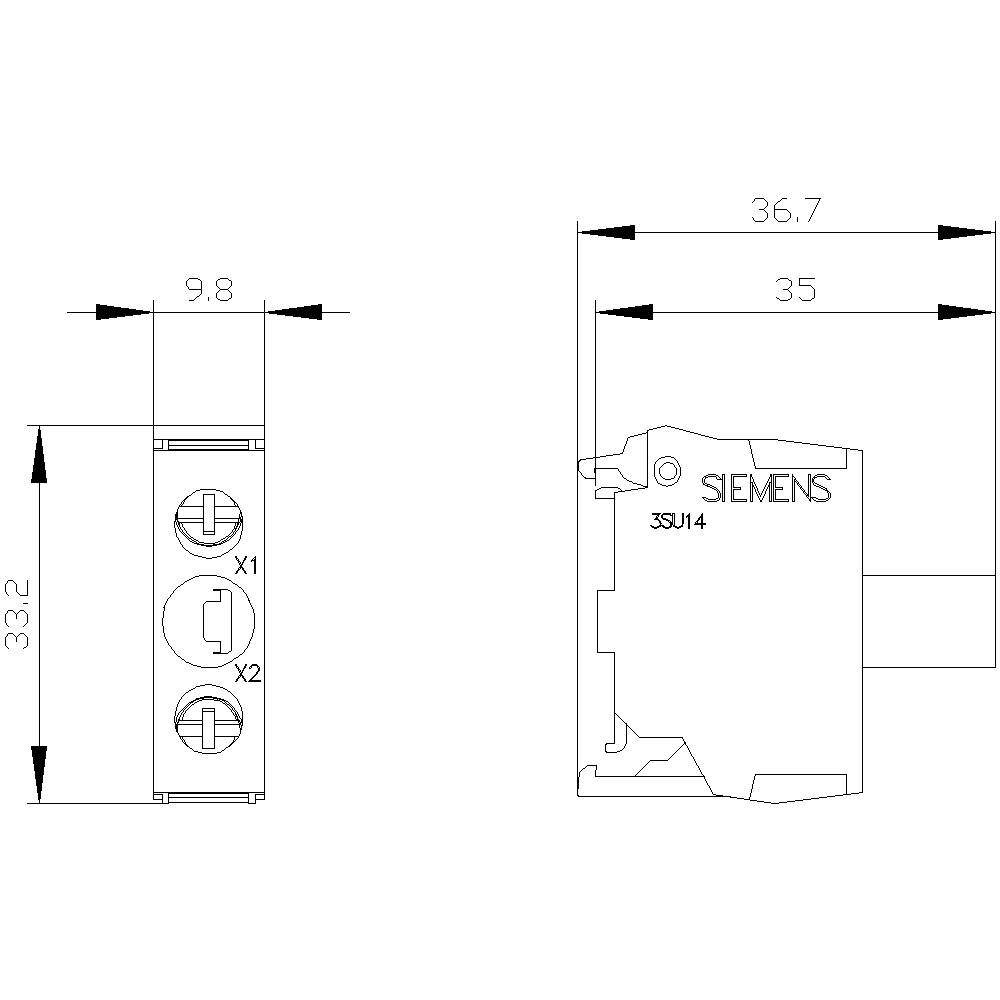

Technical drawing of a Siemens device with dimensions: Width 36.7 mm, Height 33.2 mm, Depth 35 mm. Connections X1, X2 on the left.
1/4
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Maximum light intensity: 1400 mcd
  • Design of the Electrical Connection: screw terminals.
Product type

LED module

Switch/button features

for floor mounting

Type

LED

Colour

White

Switching voltage

230 V

Switching current (max.)

20 mA

IP40

Min. temperature

-25 °C

Max. temperature

+70 °C

Width

9.8 mm

Height

33.2 mm

Electrical lifespan

100000

Mounting type

Floor fixed

Content

1 pc(s)

Dim

(W x H x D) 9.8 x 33.2 x 29.4 mm

RoHS-compliant

Yes

Weight

0.0120 kg

Depth

29.4 mm

Type

3SU1401-2BF60-1AA0

Factory colour

Multicolour

Light bulb included

Yes

None

FALSE

FALSE

TRUE

White

LED

TRUE

Screw connection

AC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1731721 Siemens 3SU1401-2BF60-1AA0 LED module for floor mounting White 230 V 1 pc(s)

Datasheet 1731721 Siemens 3SU1401-2BF60-1AA0 LED module for floor mounting White 230 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1731721 Siemens 3SU1401-2BF60-1AA0 LED module for floor mounting White 230 V 1 pc(s)

Information

Information 1731721 Siemens 3SU1401-2BF60-1AA0 LED module for floor mounting White 230 V 1 pc(s)

Description

Labeling plate for snapping on or gluing on label holder, Label size 17.5 x 27 mm, black label, white font, with inscription: Down
