Name: Siemens 3SU1501-1AG50-1LA0 Triple module holder 3-way 2 makers, 2 breakers Blue Contact 1 pc(s) Piece
Brand: Siemens
SKU: 1731798
Availability: InStock

A black and grey electrical component with a round connector and square housing, used for industrial control systems.

Cable car station in the mountains with an orange gondola, control panel in the foreground. Clear, modern architecture, mountain landscape visible.

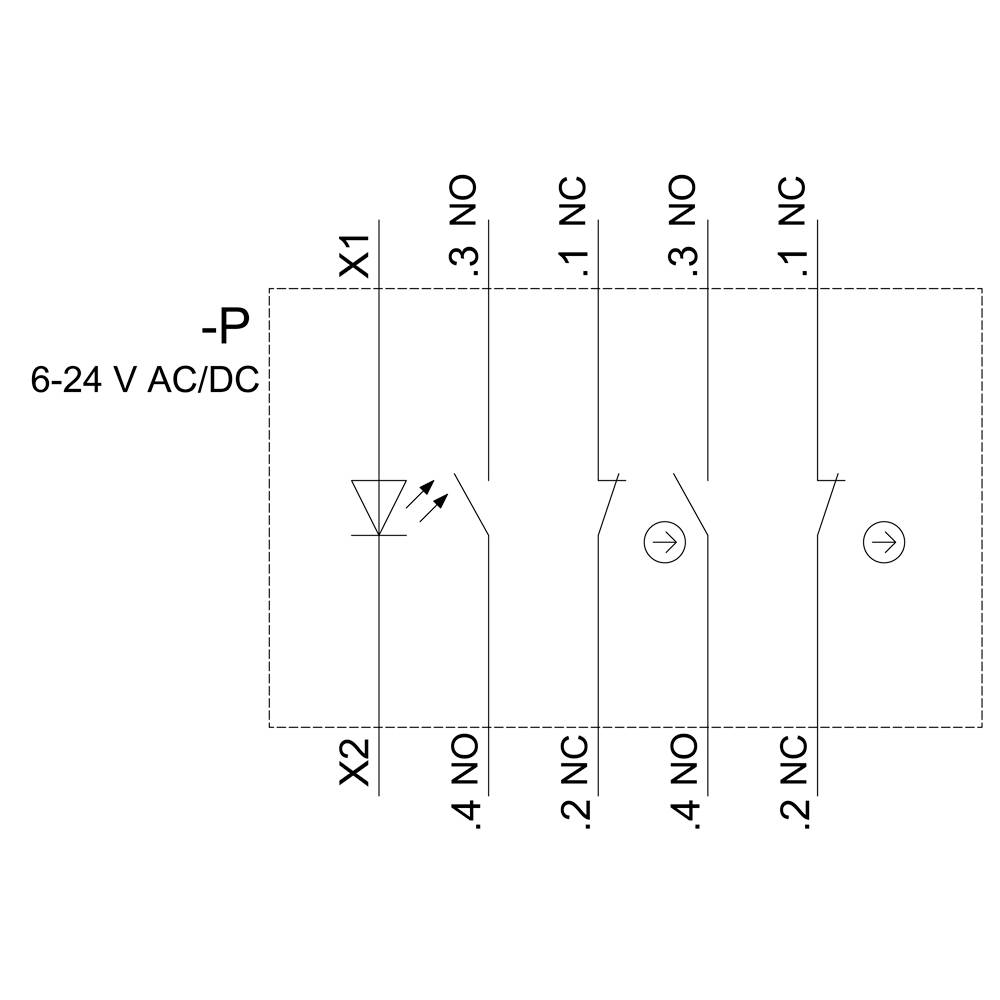

Circuit diagram of a relay for 6-24 V AC/DC with connections: X1 '3 NO', '1 NC'; X2 '4 NO', '2 NC'. LED indicator for switch state indication.

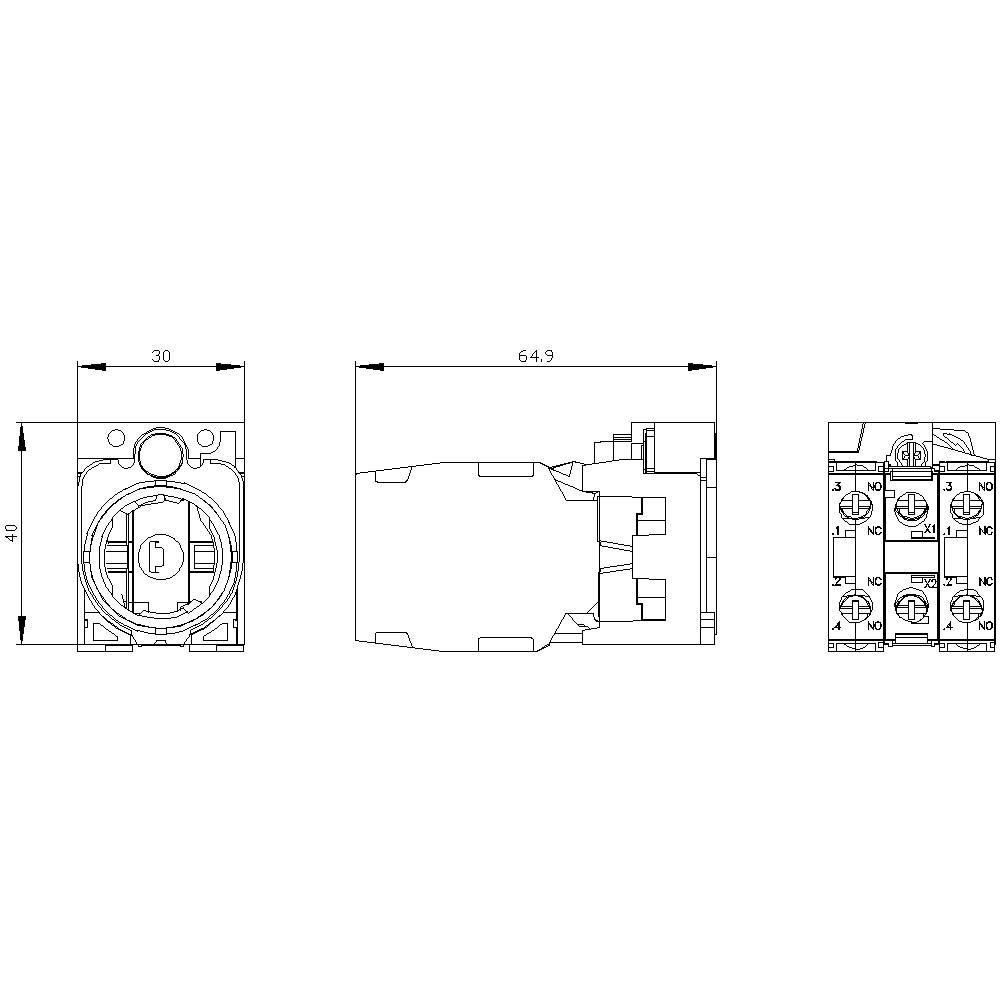

Technical drawing of an electrical switch with dimensions: height 40 mm, width 30 mm, length 64.9 mm. Shows front, side, and top views.

1/4

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 37.99 / piece)

€ 37.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Material of the holder: plastic
Number of contact modules: 2
The number of LED modules: 1
Isolation voltage: 320 V
Switching frequency: 3600 1/h.
Operating current: 6 A
Operating voltage: 6 V, -24 V
Shape: round
Type of connectable conductor cross-sections, and single-core with wire finishing: 2 x (0.5 mm²-0.75 mm²)

Packaging type: Piece

Product type: Triple module holder

Switch/button features: 3-way

Connection: Screws

Type: 3-way with module

Recess depth: 71.8 mm

Functions: Contact

Contact type: 2 makers
2 breakers

Colour: Blue

Switching current (max.): 10 A

: IP20

Dielectric strength: 4 kV

Min. temperature: -25 °C

Max. temperature: +70 °C

Width: 30 mm

Height: 40 mm

Compatible with (details): 3 modules

Durability: 10

Mounting type: Front panel fixed

Content: 1 pc(s)

Dim: (W x H) 30 mm x 40 mm

RoHS-compliant: Yes

Weight: 70 g

Type: 3SU1501-1AG50-1LA0

UKCA: yes
