Siemens 3UF70131AB000 3UF7013-1AB00-0 Motor controller 24 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 909.00 / piece)
€ 909.00
incl. VAT
14-day return policy included
Technical specifications
- Design of the Electrical Connection: screw terminals.
- Isolation voltage: 300 V
- Electrical life: 100000
- Mechanical life: 1000 0000
- Consumed real power: 3.9 W
- Product type
Motor controller
- Type
3UF7013-1AB00-0
- Manufacturer part #
3UF70131AB000
- No. of digital inputs (max.)
4
- No. of inputs (max.)
4
- No. of outputs (max.)
3
- Operating voltage
24 V DC

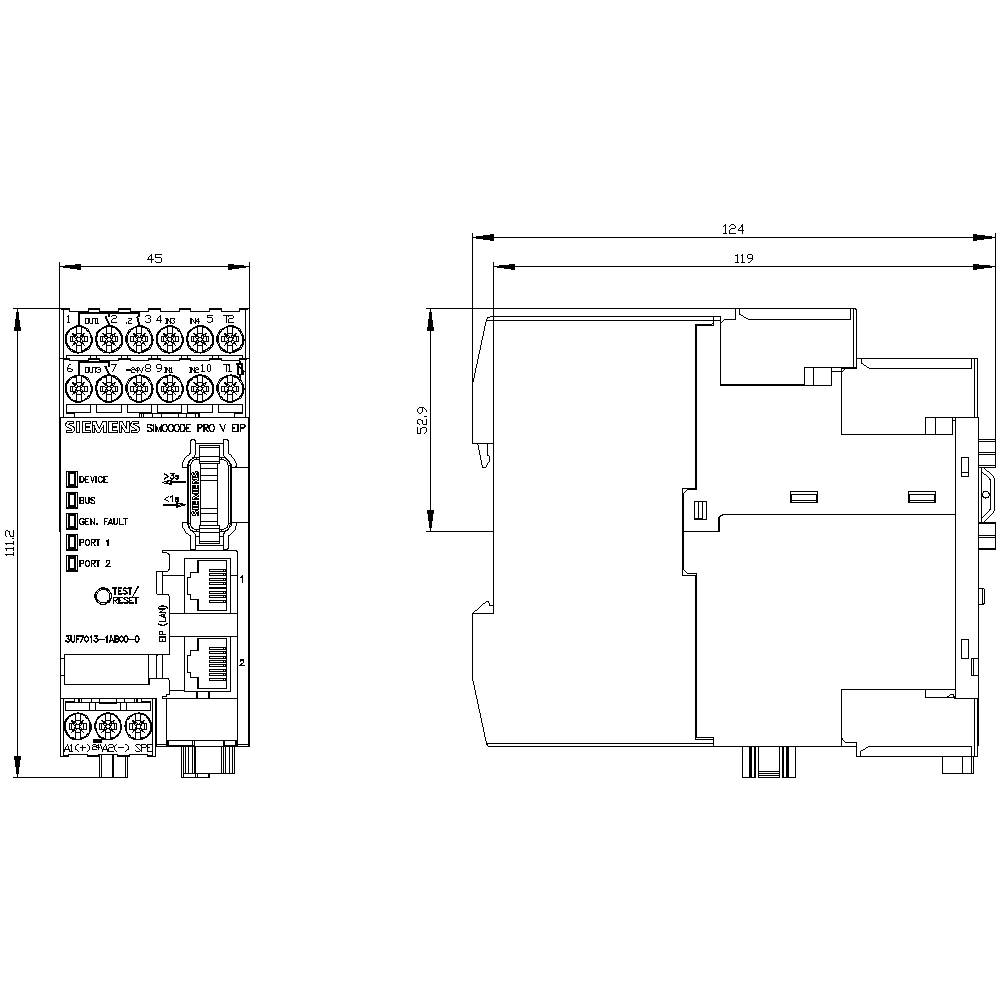

- Height
111 mm
- Length
124 mm
- Width
45 mm
IP20
- Series
ET 200
- Dim
(L x W x H) 124 x 45 x 111 mm
- Content
1 pc(s)
- Display
Yes (optional)
- Fitting type (details)
Screw and snap
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
Mono stable
4
4
IP20
0
3
Screw connection
FALSE
TRUE
TRUE
TRUE
None
DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1740702 Siemens 3UF70131AB000 3UF7013-1AB00-0 Motor controller 24 V DC
User & Safety Instructions
User & Safety Instructions 1740702 Siemens 3UF70131AB000 3UF7013-1AB00-0 Motor controller 24 V DC
Description
Safety position switch with tumbler, locking force 1300 N, 5 directions of approaches, solenoid-locked, magnet voltage 24 V DC, monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO, wired with M12 connector, 8-pole, The matching separate actuator 3SE5000-0AV0. or 3SE5000-0AW4/5. must be ordered separately.
