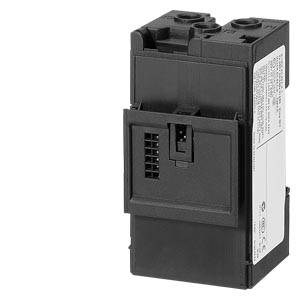

Siemens 3UF71001AA000 3UF7100-1AA00-0 PLC current detector 690 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 154.99 / piece)
€ 154.99
incl. VAT
14-day return policy included
Technical specifications
- Operating frequency: 50/60 Hz
- Pins for main circuit: 3
- Surge voltage resistance: 6000 V
- Product type
PLC current detector
- Type
3UF7100-1AA00-0
- Manufacturer part #
3UF71001AA000
- Type
Through-hole converter
- Min. operating voltage
110 V AC
- Operating voltage
110 - 690 V AC
- Max. operating voltage
690 V AC
- Operating voltage
690 V AC
- Height
84 mm
- Length
45 mm
- Width
45 mm
IP20
- Series
ET 200

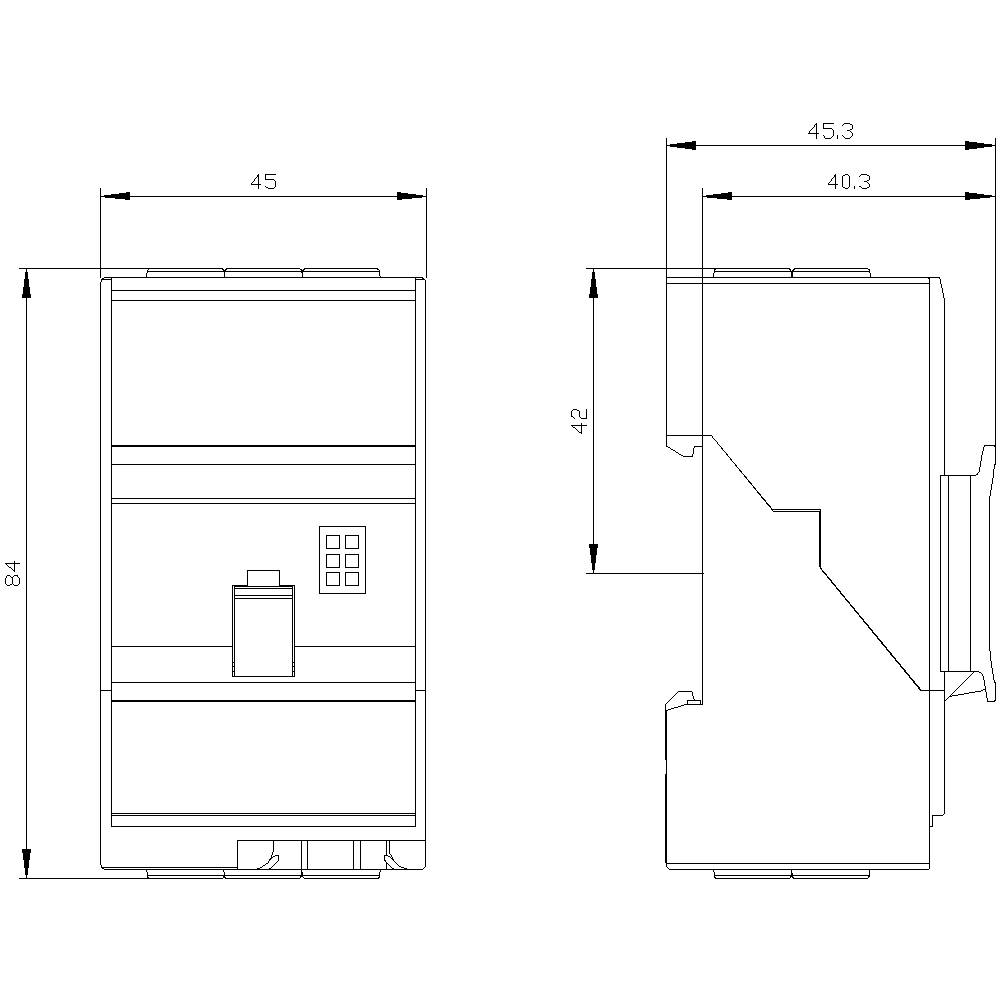

- Dim
(L x W x H) 45 x 45 x 84 mm
- Content
1 pc(s)
- Fitting type (details)
Screw and snap
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
IP20
0
FALSE
FALSE
TRUE
Through-feed technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1740706 Siemens 3UF71001AA000 3UF7100-1AA00-0 PLC current detector 690 V AC
User & Safety Instructions
User & Safety Instructions 1740706 Siemens 3UF71001AA000 3UF7100-1AA00-0 PLC current detector 690 V AC
Description
Surge suppressor Varistor 24 V DC for contactors size 8...12
