Buy Siemens 3UF71021AA000 3UF7102-1AA00-0 PLC current detector 690 V AC

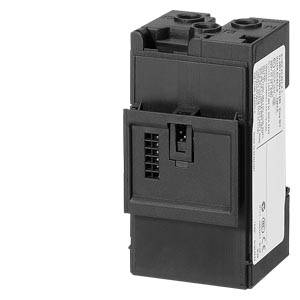

A black electrical junction box with connections at the top, side labelling, and a rectangular front face. Primarily used for electrical installations.

Image similar

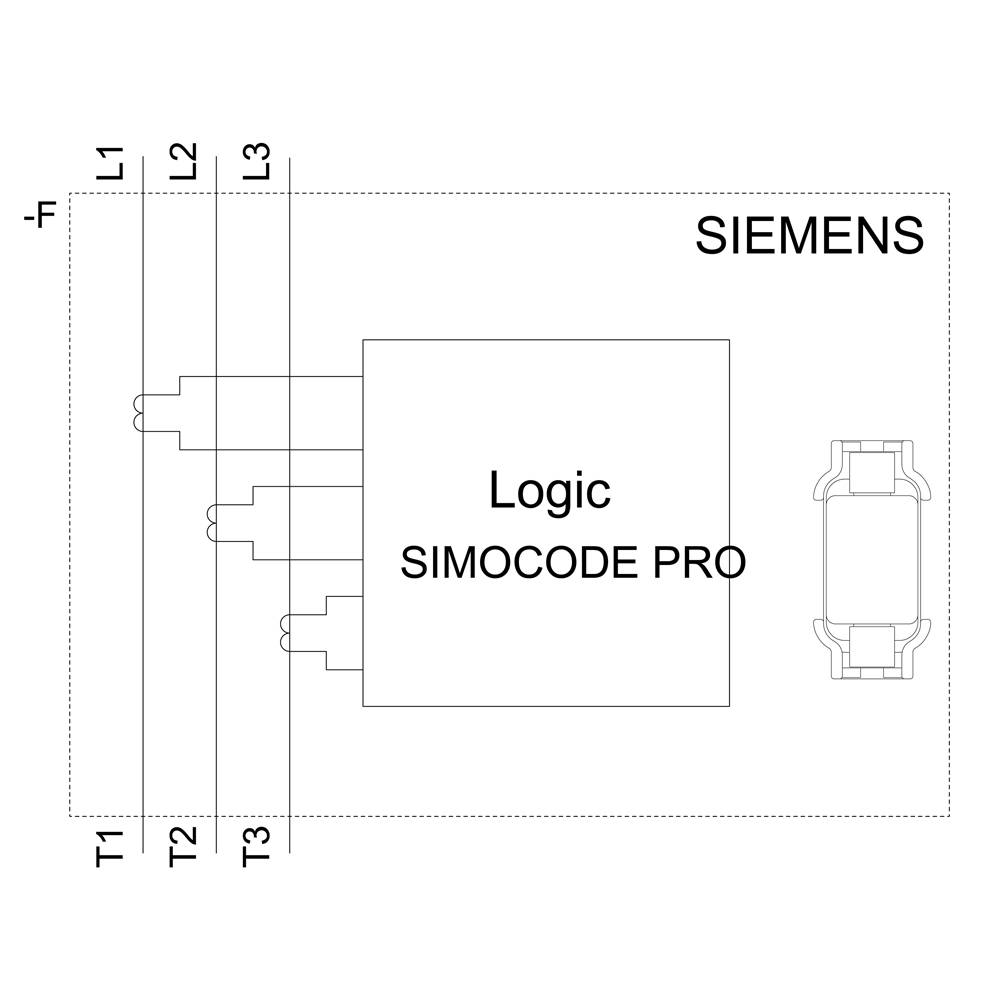

'Circuit diagram shows Siemens Logic SIMOCODE PRO. Top: L1, L2, L3 lines; Left: T1, T2, T3 connections; Right: Cylinder.'

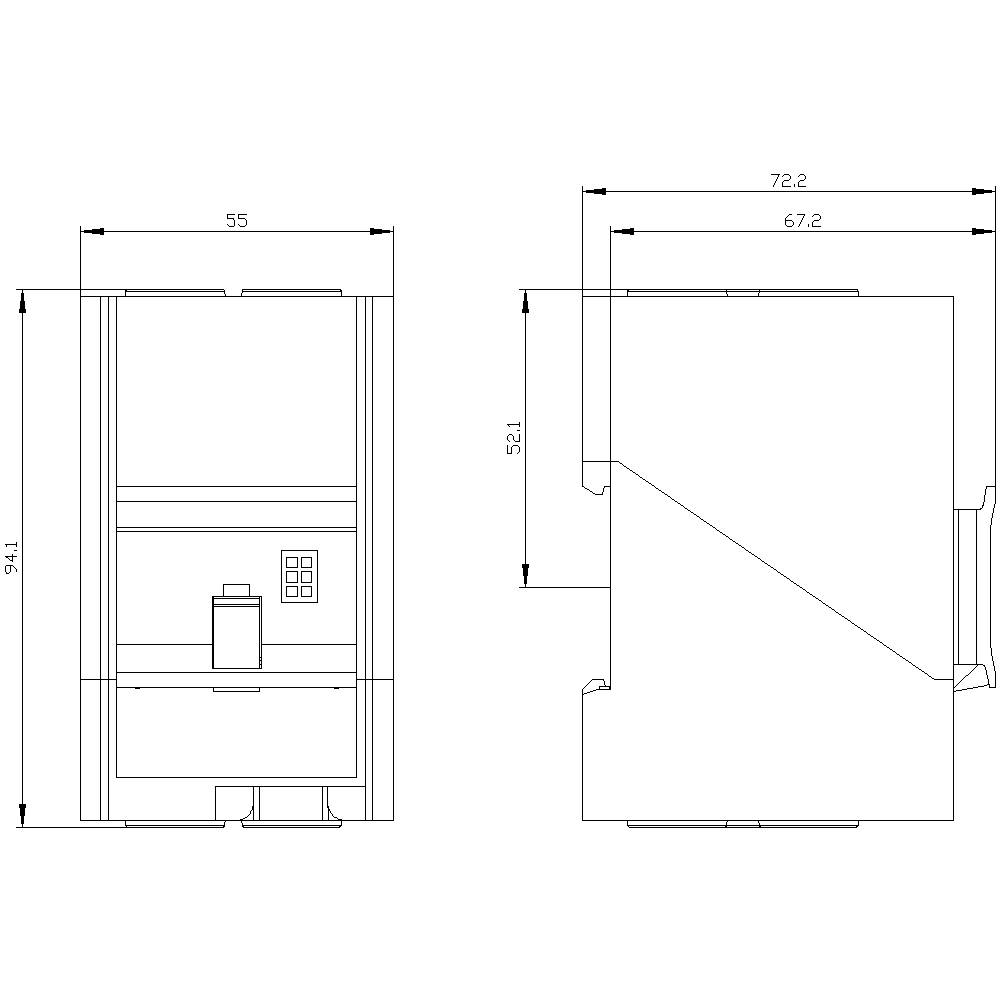

Dimensional drawing of a rectangular device with digital control panel. Dimensions: height 941 mm, width 55 mm, depth 72.2 mm.

1/3

Image similar

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 147.05 / piece)

€ 147.05

plus VAT.

Report legal concerns

Technical specifications

Operating frequency: 50/60 Hz
Pins for main circuit: 3
Surge voltage resistance: 6000 V

Product type: PLC current detector

Type: 3UF7102-1AA00-0

Manufacturer part #: 3UF71021AA000

Type: Through-hole converter

Min. operating voltage: 110 V AC

Operating voltage: 110 - 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC

Height: 94 mm

Length: 72 mm

Width: 55 mm

: IP20

Dim: (L x W x H) 72 x 55 x 94 mm

Content: 1 pc(s)

Fitting type (details): Screw and snap

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: IP20

: 0

: FALSE

: FALSE

: TRUE

: Through-feed technique

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1740707 Siemens 3UF71021AA000 3UF7102-1AA00-0 PLC current detector 690 V AC

User & Safety Instructions

User & Safety Instructions 1740707 Siemens 3UF71021AA000 3UF7102-1AA00-0 PLC current detector 690 V AC

Description

Connection to the expansion module 3UF51 or to operator panel 3UF52 9-pole, 2.5 m long Shielded connectors 45 degrees angled
