Siemens 3UF71101AA010 3UF7110-1AA01-0 PLC current/voltage detector 690 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 305.00 / piece)
€ 305.00
incl. VAT
14-day return policy included
Technical specifications
- Operating frequency: 50/60 Hz
- Pins for main circuit: 3
- Surge voltage resistance: 6000 V
- Design of the Electrical Connection: screw terminals.
- Product type
PLC current/voltage detector
- Type
3UF7110-1AA01-0
- Manufacturer part #
3UF71101AA010
- Type
Through-hole converter
- Min. operating voltage
110 V AC
- Operating voltage
110 - 690 V AC
- Max. operating voltage
690 V AC
- Operating voltage
690 V AC

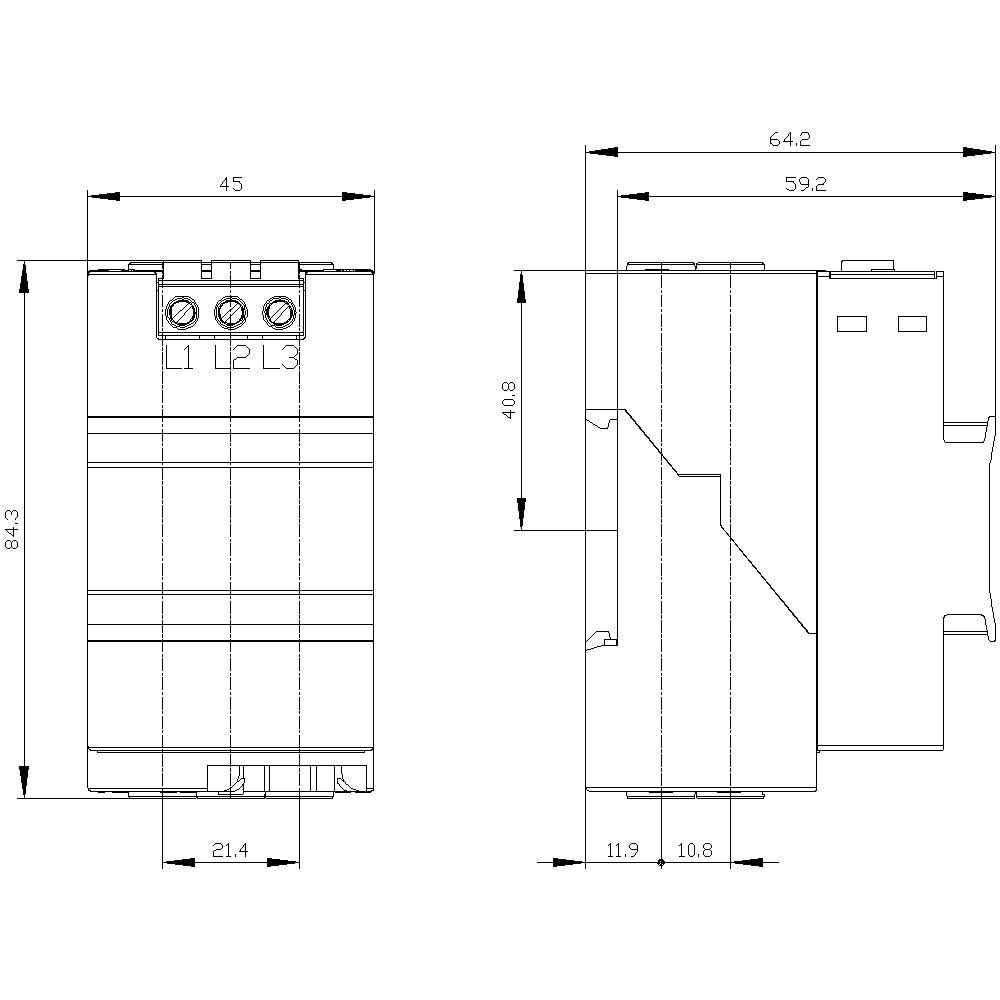

- Height
84 mm
- Length
64 mm
- Width
45 mm
IP20
- Series
ET 200
- Dim
(L x W x H) 64 x 45 x 84 mm
- Content
1 pc(s)
- Fitting type (details)
Screw and snap
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
IP20
0
Screw connection
FALSE
TRUE
TRUE
Through-feed technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1740709 Siemens 3UF71101AA010 3UF7110-1AA01-0 PLC current/voltage detector 690 V AC
User & Safety Instructions
User & Safety Instructions 1740709 Siemens 3UF71101AA010 3UF7110-1AA01-0 PLC current/voltage detector 690 V AC
Description
Contactor, Size 12, 3-pole, AC-3, 200 kW, 400/380 V Auxiliary contacts 22 (2 NO + 2 NC) 48 V DC ! Phased-out product! Successor is SIRIUS 3RT Preferred successor type is 3RT1075-2AD36
