Siemens 3UF71131AA010 3UF7113-1AA01-0 PLC current/voltage detector 690 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 475.00 / piece)
€ 475.00
incl. VAT
14-day return policy included
Technical specifications
- Operating frequency: 50/60 Hz
- Pins for main circuit: 3
- Surge voltage resistance: 6000 V
- Design of the Electrical Connection: screw terminals.
- Product type
PLC current/voltage detector
- Type
3UF7113-1AA01-0
- Manufacturer part #
3UF71131AA010
- Type
Through-hole converter
- Min. operating voltage
110 V AC
- Operating voltage
110 - 690 V AC
- Max. operating voltage
690 V AC
- Operating voltage
690 V AC
- Height
95 mm
- Length
145 mm
- Width
120 mm
IP20
- Series
ET 200

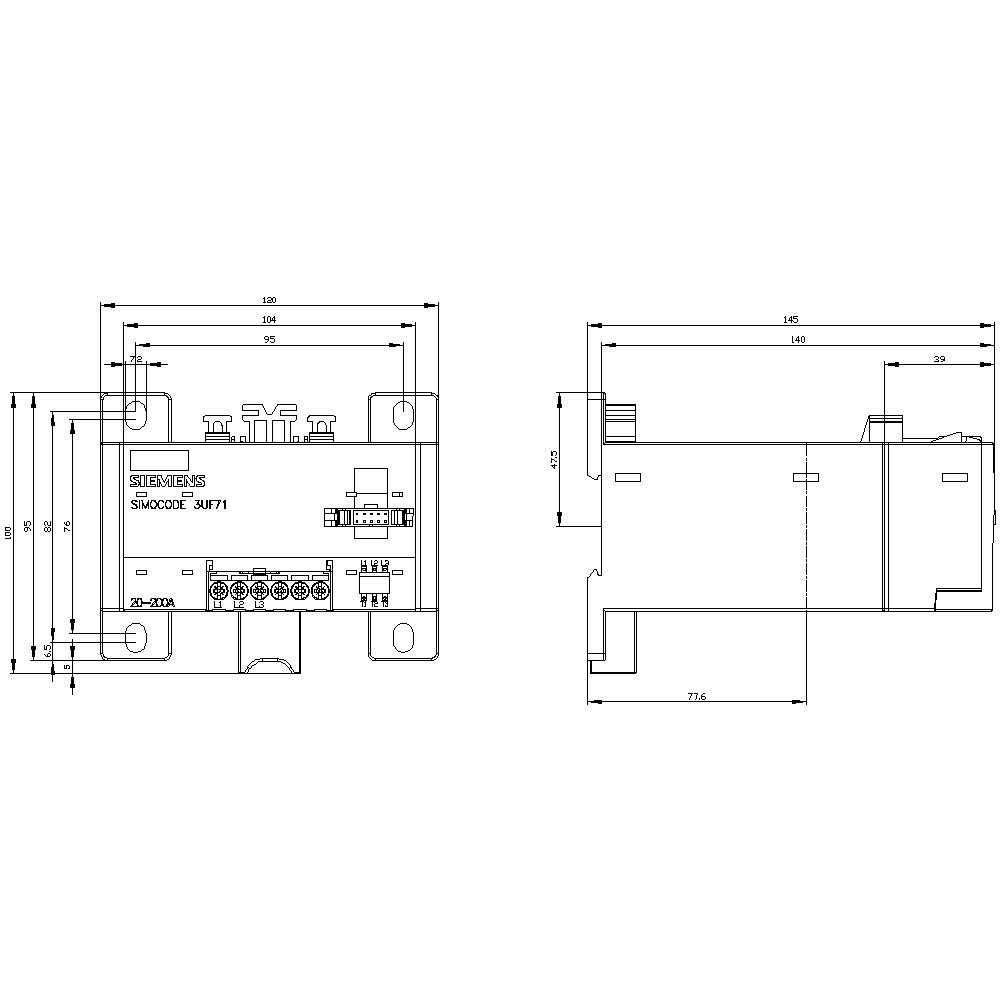

- Dim
(L x W x H) 145 x 120 x 95 mm
- Content
1 pc(s)
- Fitting type (details)
Screw and snap
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
IP20
0
Screw connection
FALSE
TRUE
TRUE
Through-feed technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1740714 Siemens 3UF71131AA010 3UF7113-1AA01-0 PLC current/voltage detector 690 V AC
User & Safety Instructions
User & Safety Instructions 1740714 Siemens 3UF71131AA010 3UF7113-1AA01-0 PLC current/voltage detector 690 V AC
Description
Handle with masking frame Emergency stop with tolerance compensation Accessory for: 3VA1/2 1000
