1/3
Image similar
Siemens 3UG4511-1AN20 3UG45111AN20 Network monitor No. of relay outputs: 1
Product type
Network monitor
No. of relay outputs
1
Operating voltage
260 V
Type
3UG4511-1AN20
Probe inputs
Phasenfolgeüberwachung 3 x 160...260 V AC 50...60 Hz
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 119.99 / piece)
€ 119.99
incl. VAT
14-day return policy included
Technical specifications
- Mounting type: Snap-on mounting
- Design of the Electrical Connection: screw terminals.
- Type
3UG4511-1AN20
- Product type
Network monitor
- No. of relay outputs
1
- Probe inputs
Phasenfolgeüberwachung 3 x 160...260 V AC 50...60 Hz
- Operating voltage
260 V

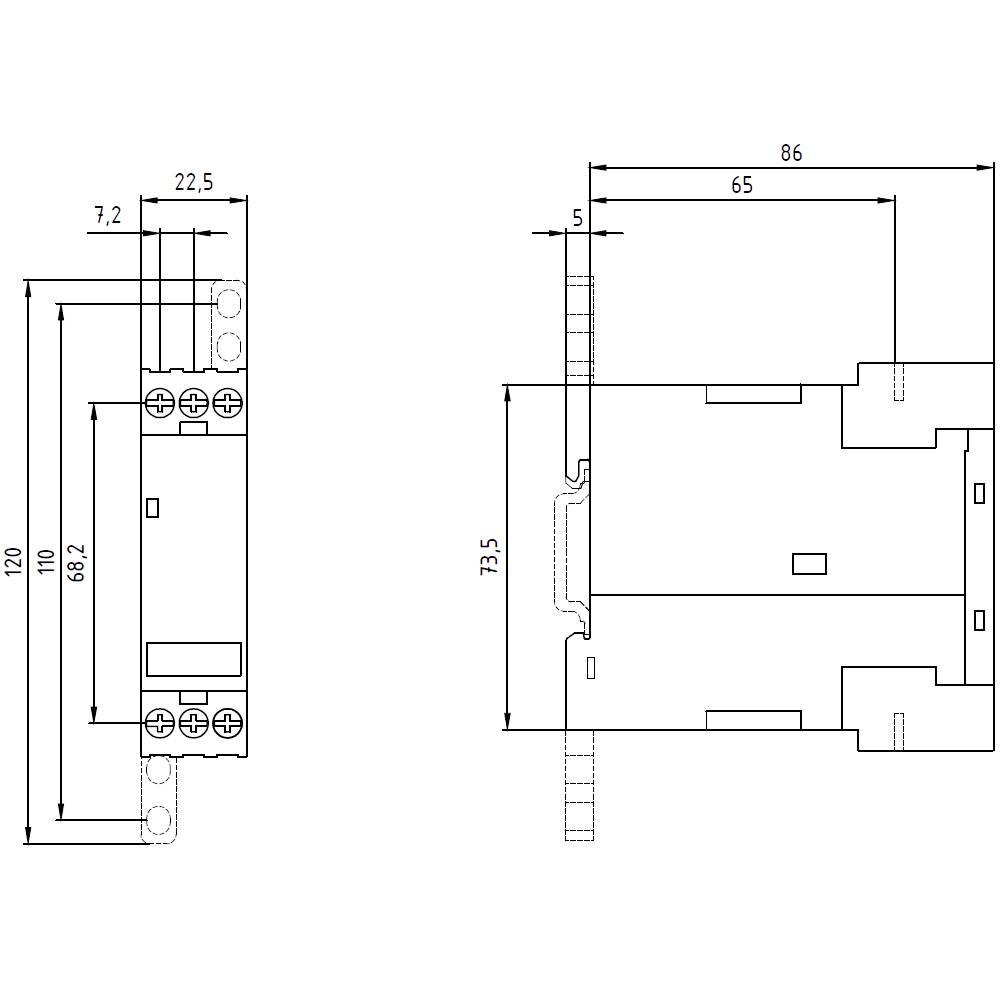

- Dim
(L x W x H) 91 x 22.5 x 83 mm
- Weight
117 g
- Width
22.5 mm
- Height
83 mm
- Length
91 mm
22.5
83 mm
91 mm
TRUE
TRUE
FALSE
FALSE
FALSE
FALSE
Screw connection
AC
0
0
1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1740760 Siemens 3UG4511-1AN20 3UG45111AN20 Network monitor No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 1740760 Siemens 3UG4511-1AN20 3UG45111AN20 Network monitor No. of relay outputs: 1
Description
Magnet switch Contact block, round M30 Contact elements 1 NC/1 NO with M12 connector 4-pole Pin1=21, Pin2=22 Pin3=13, Pin4=14,
