Name: Siemens 3UG4825-1CA40 3UG48251CA40 Monitoring relay No. of relay outputs: 2
Brand: Siemens
SKU: 1753023
Availability: BackOrder

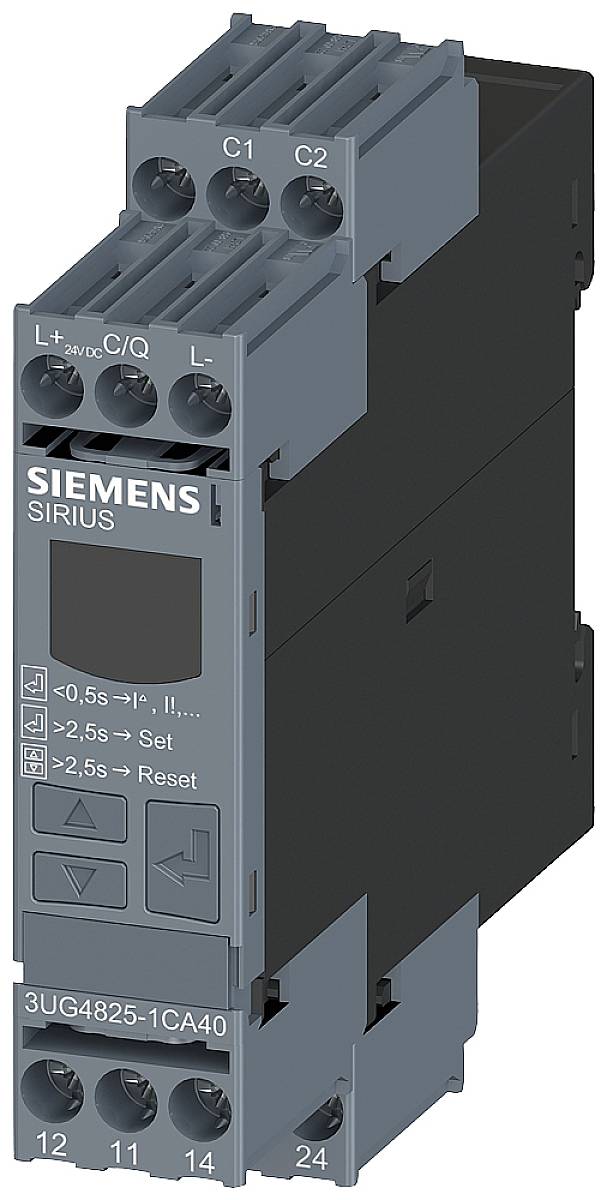

The image depicts a Siemens Sirius monitoring relay in black and grey, with connections at the top and bottom, and control elements at the front.

An electrical control cabinet with a main switch and various electrical components and wiring.

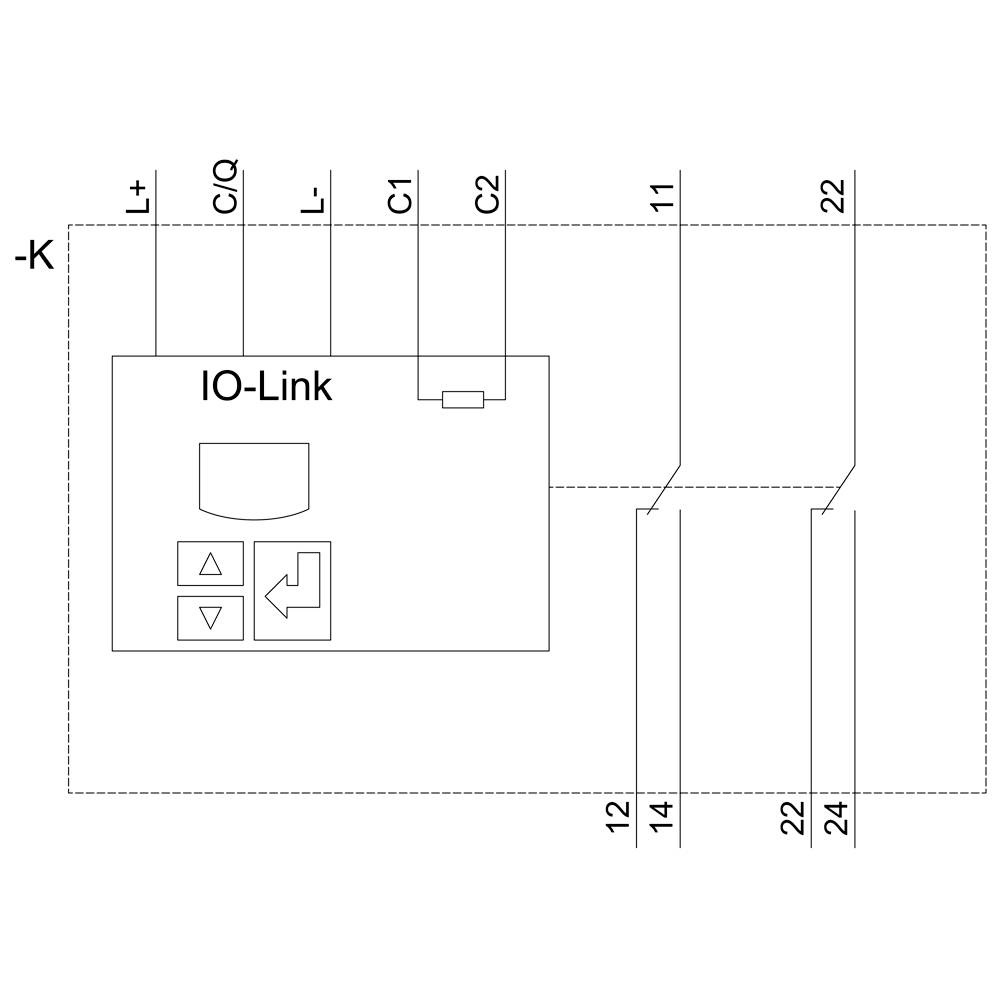

Circuit diagram of an IO-Link device with connections L+, L-, C/Q, C1, C2. Connections to numbered terminals 11, 12, 14, 22, 24.

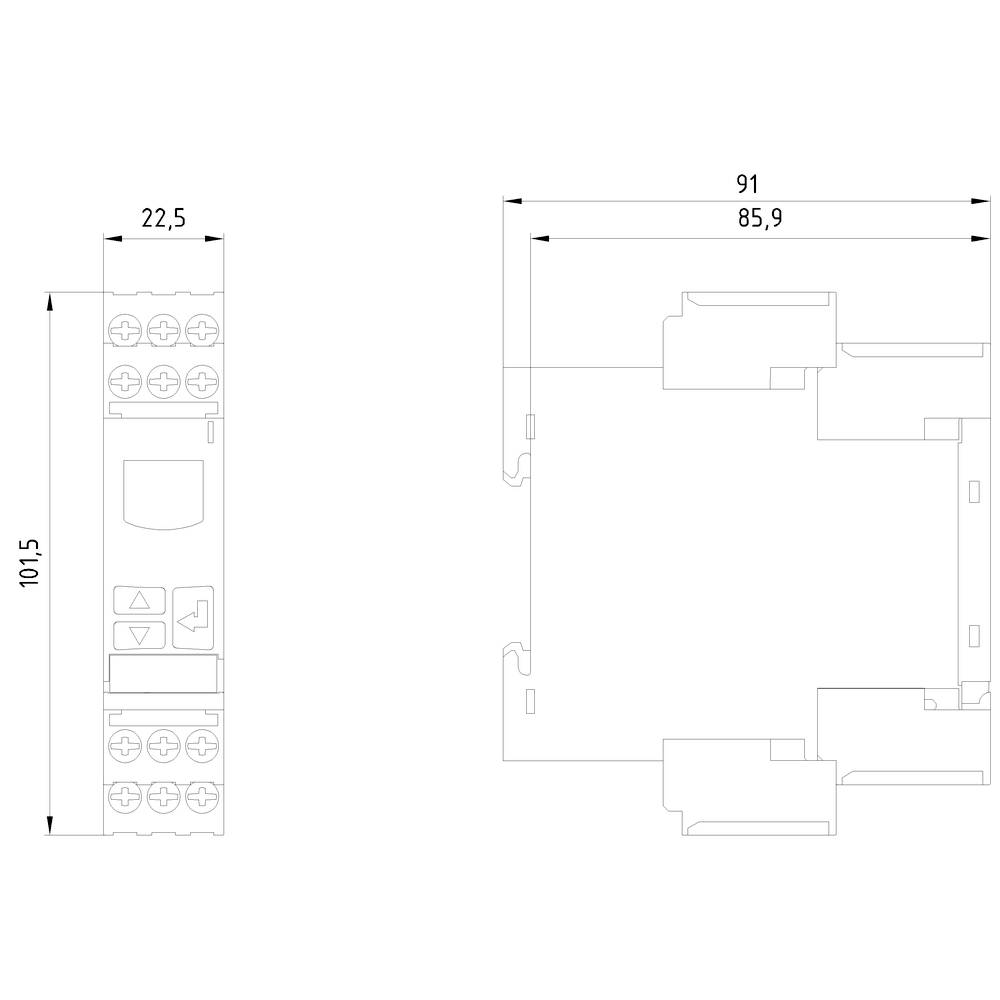

Technical drawing of a rectangular electronic device with dimensions: 101.5 mm height, 22.5 mm width, 91 mm depth.

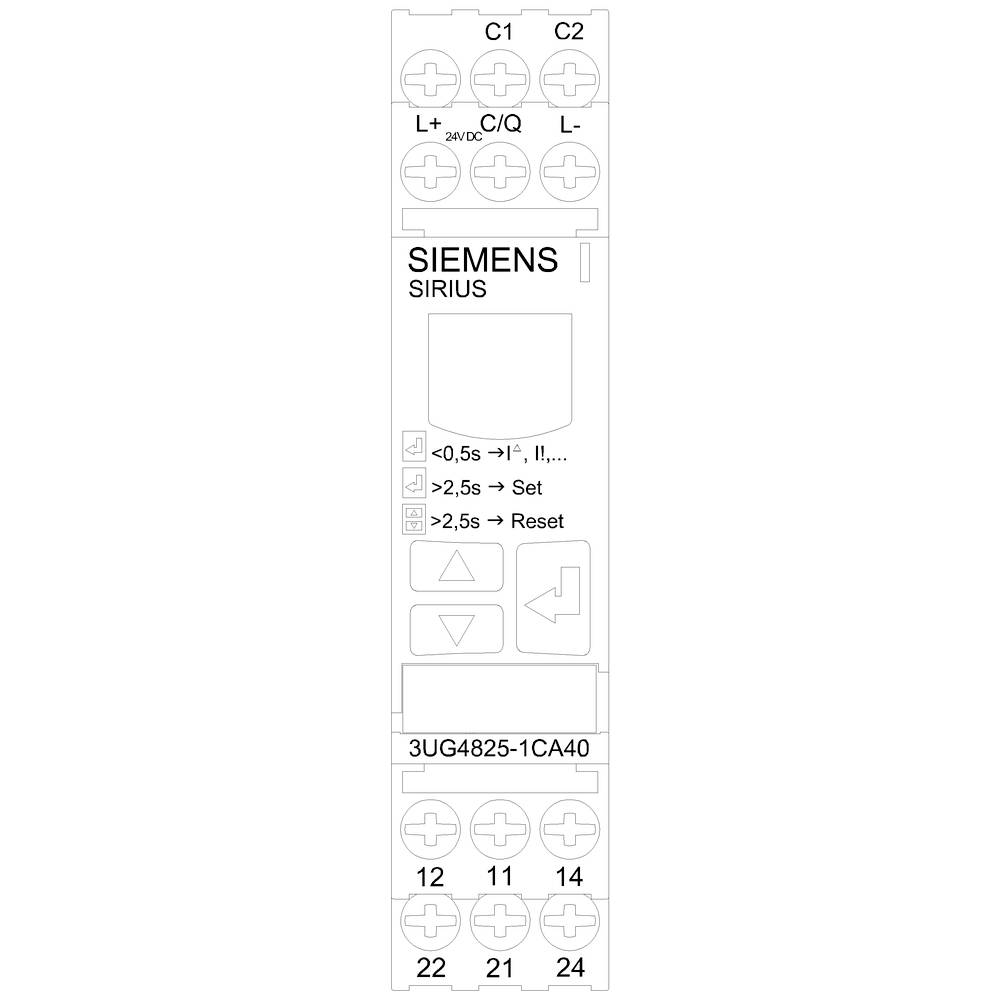

'Siemens SIRIUS Replacement Part, Button for Settings, Model 3UG4825-1CA40. Connections: C1, C2, 11-14, 21-24. Symbols for Operating Instructions.'

1/5

Image similar

Product type

Monitoring relay

No. of relay outputs

Type

3UG4825-1CA40

Probe inputs

Fehlerstromüberwachung mit Differenzstromwandler 3UL23 für IO-Link Einstellbereich 0.03 A bis 40 A

Dim

(L x W x H) 91 x 22.5 x 102 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 355.00 / piece)

€ 355.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw and snap-on mounting rail 35 mm
Design of the Electrical Connection: screw terminals.

Type: 3UG4825-1CA40

Product type: Monitoring relay

No. of relay outputs: 2

Probe inputs: Fehlerstromüberwachung mit Differenzstromwandler 3UL23 für IO-Link Einstellbereich 0.03 A bis 40 A

Dim: (L x W x H) 91 x 22.5 x 102 mm

Weight: 147 g

Width: 22.5 mm

Height: 102 mm

Length: 91 mm

: 22.5

: 102 mm

: 91 mm

: TRUE

: TRUE

: TRUE

: Screw connection

: 999.9 s

: 0 s

: DC

: 0

: 0

: 2

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Product type

Operating voltage

No. of relay outputs

Siemens 3UG4501-1AA30 3UG45011AA30 Monitoring relay No. of relay outputs: 1

Item no:1740758

Dispatches on Tue 10 Nov

Conrad Electronic

Monitoring relay

24 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Siemens 3UG4501-2AA30 3UG45012AA30 Monitoring relay No. of relay outputs: 1

Item no:1703030

Dispatches on Tue 10 Nov

Conrad Electronic

Monitoring relay

24 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Siemens 3UG4501-2AW30 3UG45012AW30 Monitoring relay No. of relay outputs: 1

Item no:1740759

Dispatches on Tue 10 Nov

Conrad Electronic

Monitoring relay

240 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Siemens 3UG4511-1AN20 3UG45111AN20 Network monitor No. of relay outputs: 1

Item no:1740760

Dispatches on Tue 10 Nov

Conrad Electronic

Network monitor

260 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Siemens 3UG4511-1AP20 3UG45111AP20 Network monitor No. of relay outputs: 1

Item no:1750477

Dispatches on Tue 10 Nov

Conrad Electronic

Network monitor

500 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Siemens 3UG4511-1AQ20 3UG45111AQ20 Network monitor No. of relay outputs: 1

Item no:1748653

Dispatches on Tue 10 Nov

Conrad Electronic

Network monitor

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Siemens 3UG4511-1BQ20 3UG45111BQ20 Network monitor No. of relay outputs: 2

Item no:1740761

Dispatches on Tue 10 Nov

Conrad Electronic

Network monitor

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Siemens 3UG4511-2AN20 3UG45112AN20 Network monitor No. of relay outputs: 1

Item no:1740762

Dispatches on Thu 12 Nov

Conrad Electronic

Network monitor

260 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Siemens 3UG4511-2AP20 3UG45112AP20 Network monitor No. of relay outputs: 1

Item no:1740763

Dispatches on Tue 10 Nov

Conrad Electronic

Network monitor

500 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Siemens 3UG4511-2AQ20 3UG45112AQ20 Network monitor No. of relay outputs: 1

Item no:1740764

Dispatches on Thu 12 Nov

Conrad Electronic

Network monitor

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Documents & Downloads

Datasheet

Datasheet 1753023 Siemens 3UG4825-1CA40 3UG48251CA40 Monitoring relay No. of relay outputs: 2

User & Safety Instructions

User & Safety Instructions 1753023 Siemens 3UG4825-1CA40 3UG48251CA40 Monitoring relay No. of relay outputs: 2

Description

Digital monitoring relay for residual current monitoring with residual-current transformer 3UL23 for IO-Link Setting range 0.03 A to 40 A separate for warning threshold and switch-off value ON delay and tripping delay 0 to 999.9 s Shutdown hysteresis up to 50% Warning hysteresis 5% fixed Width 22.5mm, 2 change-over contacts with or without fault buffer screw terminal
