Name: Siemens 3UG4825-2CA40 3UG48252CA40 Monitoring relay No. of relay outputs: 2
Brand: Siemens
SKU: 1753024
Availability: BackOrder

'Siemens Sirius Monitoring Relay', mountable on DIN rail, shows operating elements for time setting and LED indicators.

An electrical control cabinet with various components and wiring, with a large main switch in the foreground.

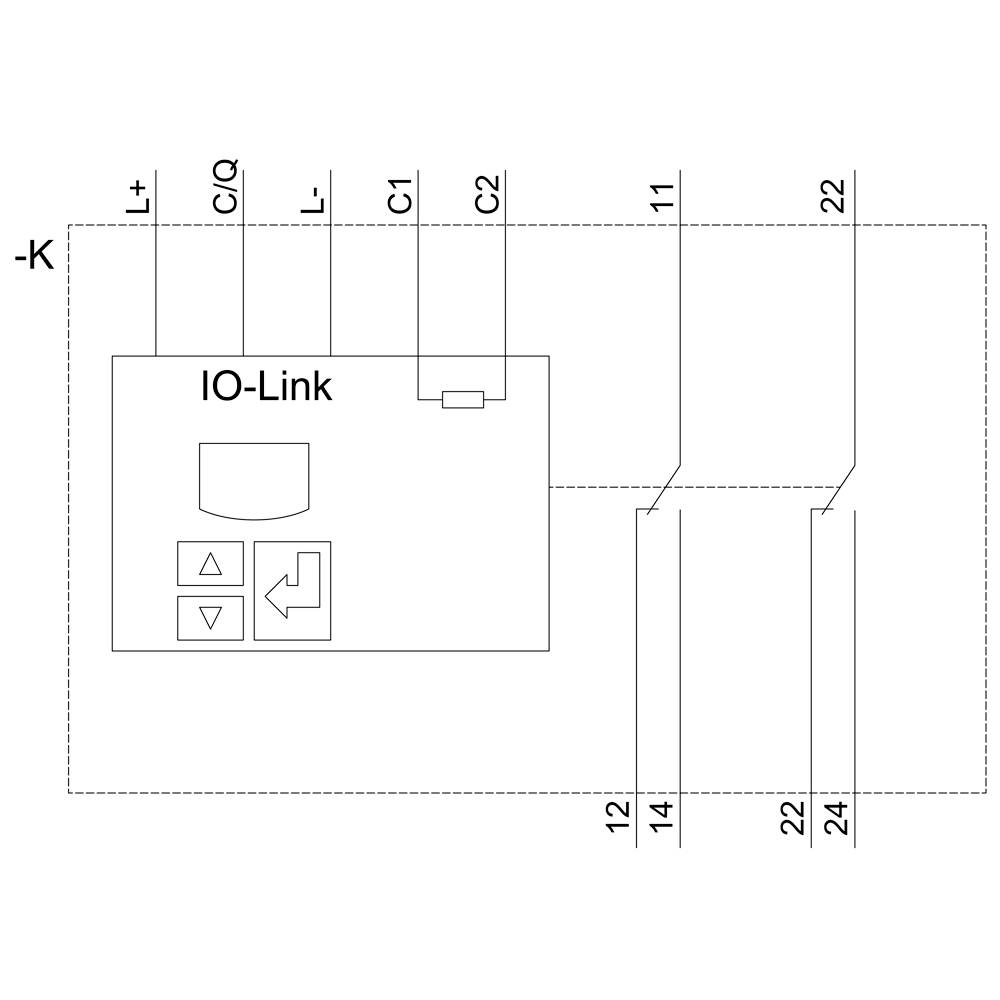

Circuit diagram shows an IO-Link module with connections: L+, CI/Q, C/Q, L-, C1, C2. Connection to terminals: 11, 12, 14, 22, 24.

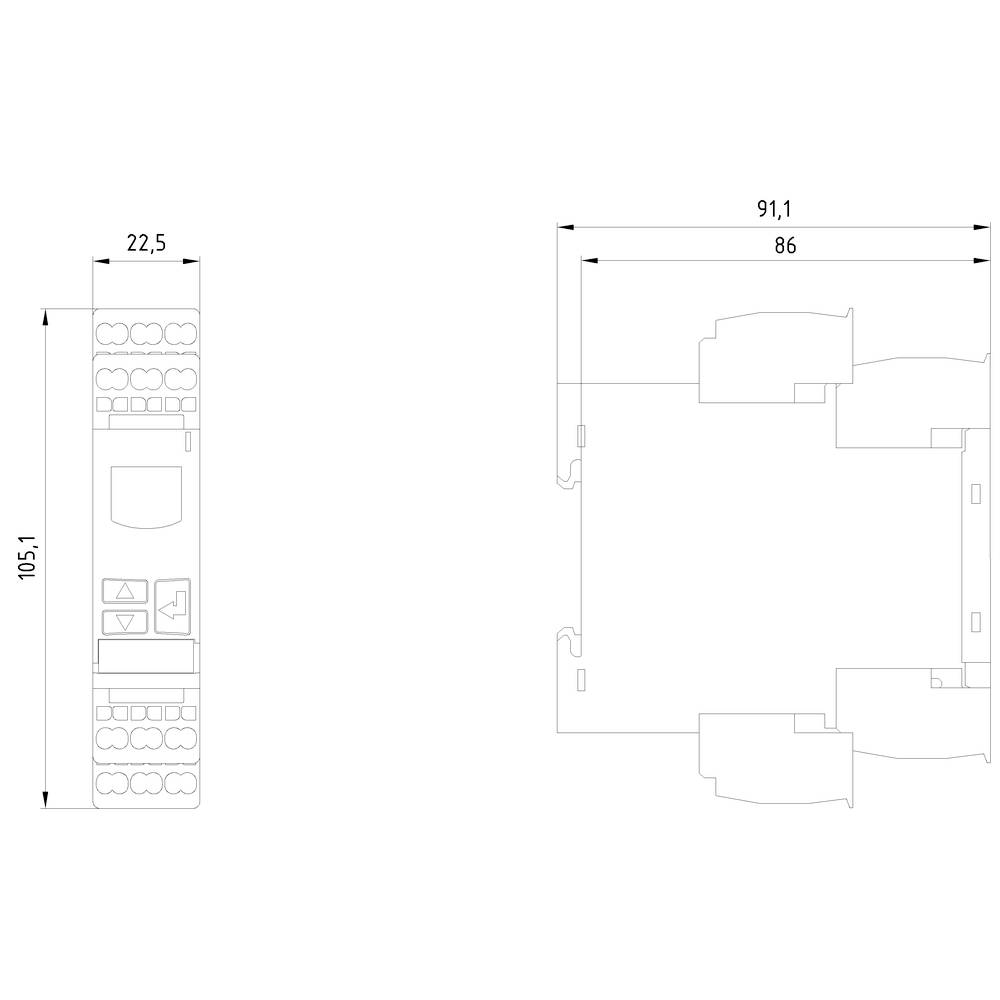

Dimensional drawing of an electronic device with dimensions: height 105.1 mm, width 22.5 mm; housing width 91.1 mm, height 86 mm.

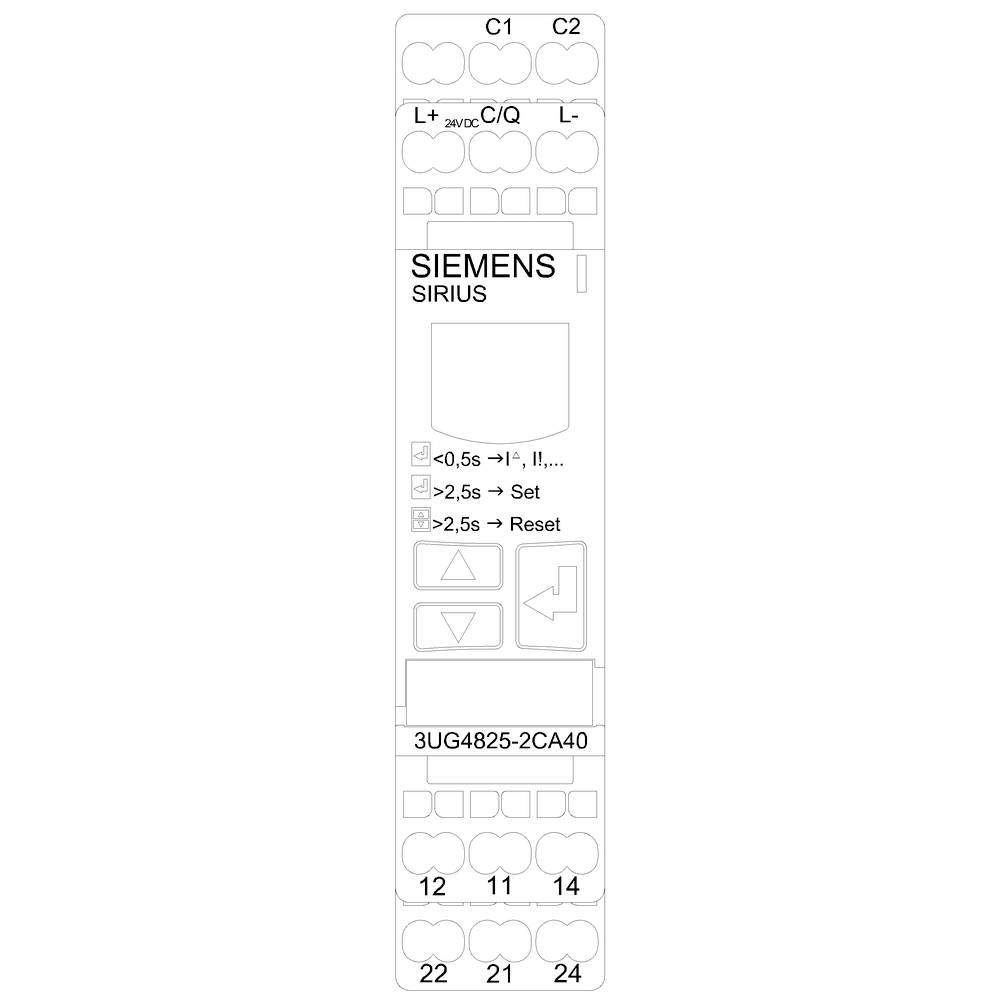

Technical Diagram for SIEMENS SIRIUS with Circuit Diagrams and Configuration Guidelines. Shows Connection Terminals and Time Delay Settings.

1/5

Image similar

Product type

Monitoring relay

No. of relay outputs

Type

3UG4825-2CA40

Dim

(L x W x H) 91 x 22.5 x 103 mm

Weight

147 g

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 365.00 / piece)

€ 365.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw and snap-on mounting rail 35 mm
Design of the electrical connection: Spring-loaded connection

Type: 3UG4825-2CA40

Product type: Monitoring relay

No. of relay outputs: 2

Dim: (L x W x H) 91 x 22.5 x 103 mm

Weight: 147 g

Width: 22.5 mm

Height: 103 mm

Length: 91 mm

: 22.5

: 103 mm

: 91 mm

: TRUE

: TRUE

: TRUE

: Spring clamp connection

: 999.9 s

: 0 s

: DC

: 0

: 0

: 2

UKCA: yes
