Name: Siemens 3UG4832-1AA40 3UG48321AA40 Voltage monitoring relay
Brand: Siemens
SKU: 1753025
Availability: InStock

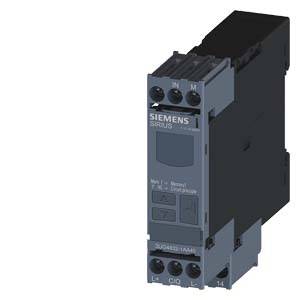

A Siemens electrical device, Sirius model, with a grey housing. It has multiple connection points at the top and bottom.

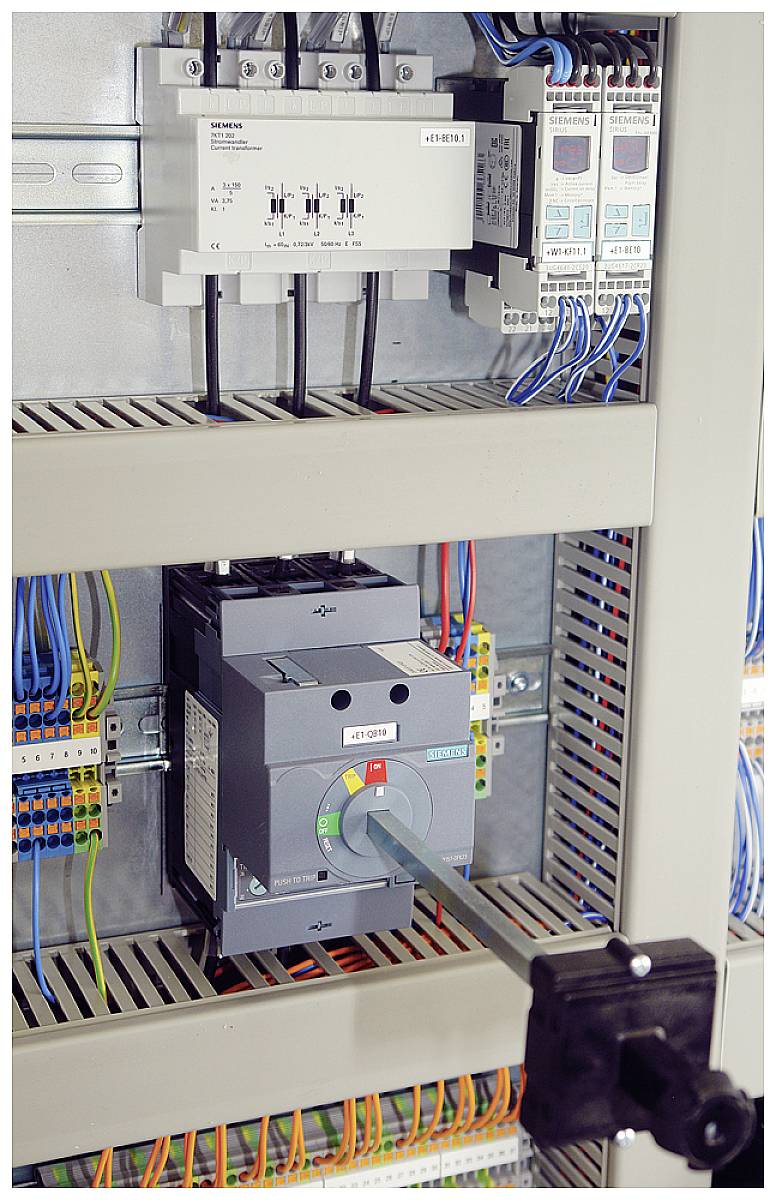

An open electrical cabinet displays electrical components, wired blocks, and fuses. Main switch with green and red button at the bottom.

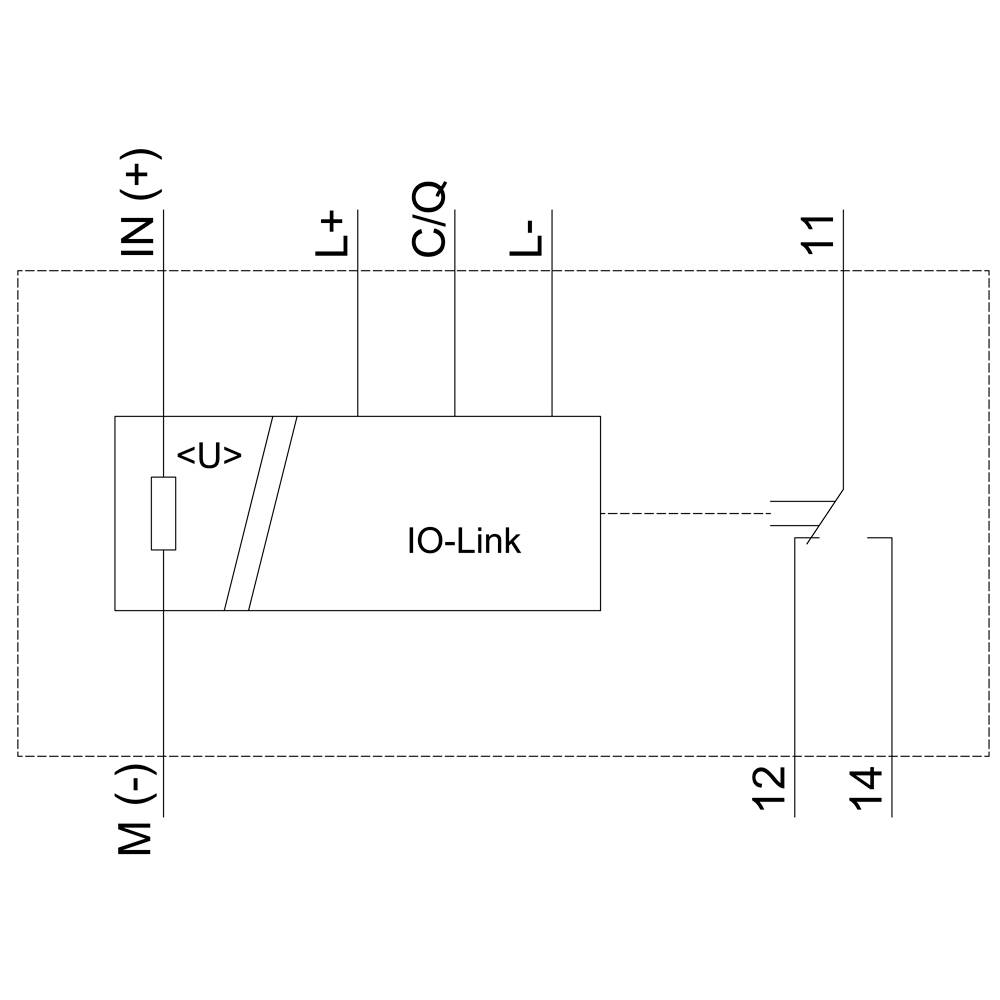

'Diagram of an IO-Link sensor with connections IN (+), M (-), L+, C/Q, L-, 11, 12, 14.'

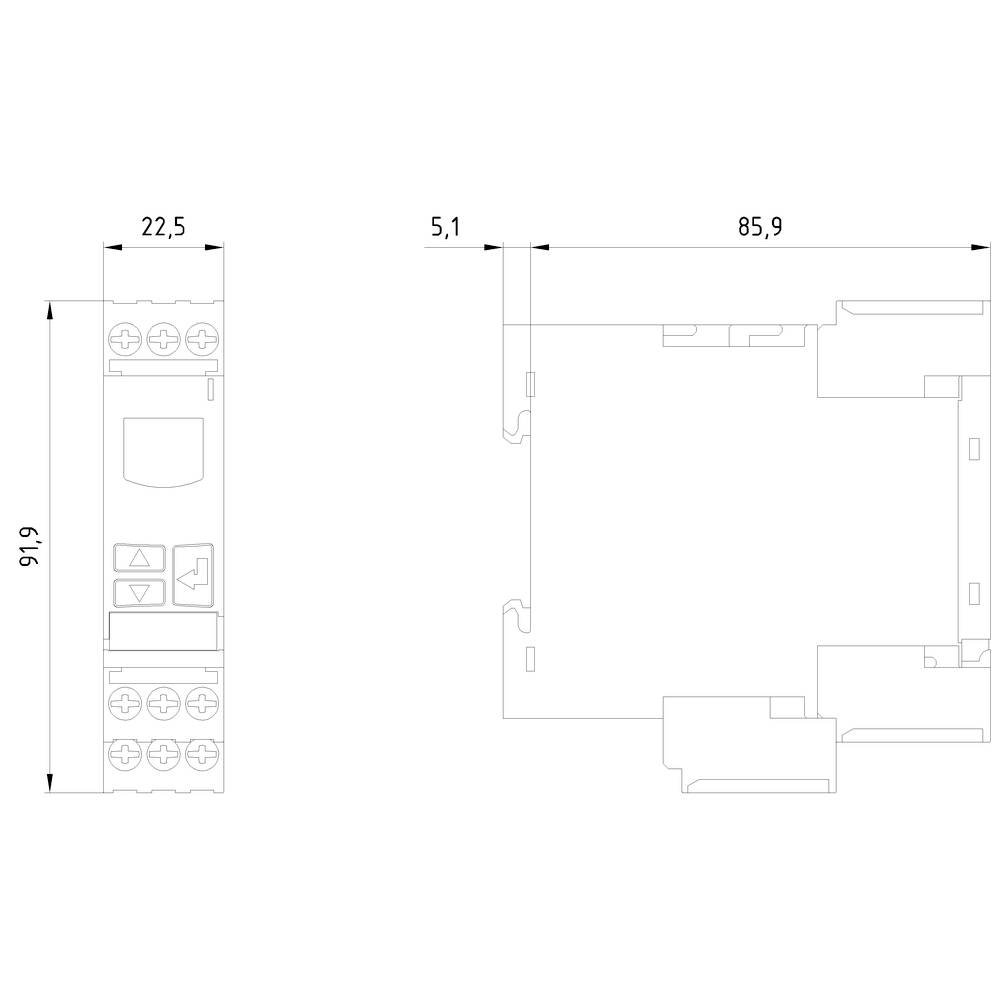

Diagram showing dimensions of a rectangular device: 22.5 mm width, 61.6 mm height, 5.1 mm depth. Displays connections and shape.

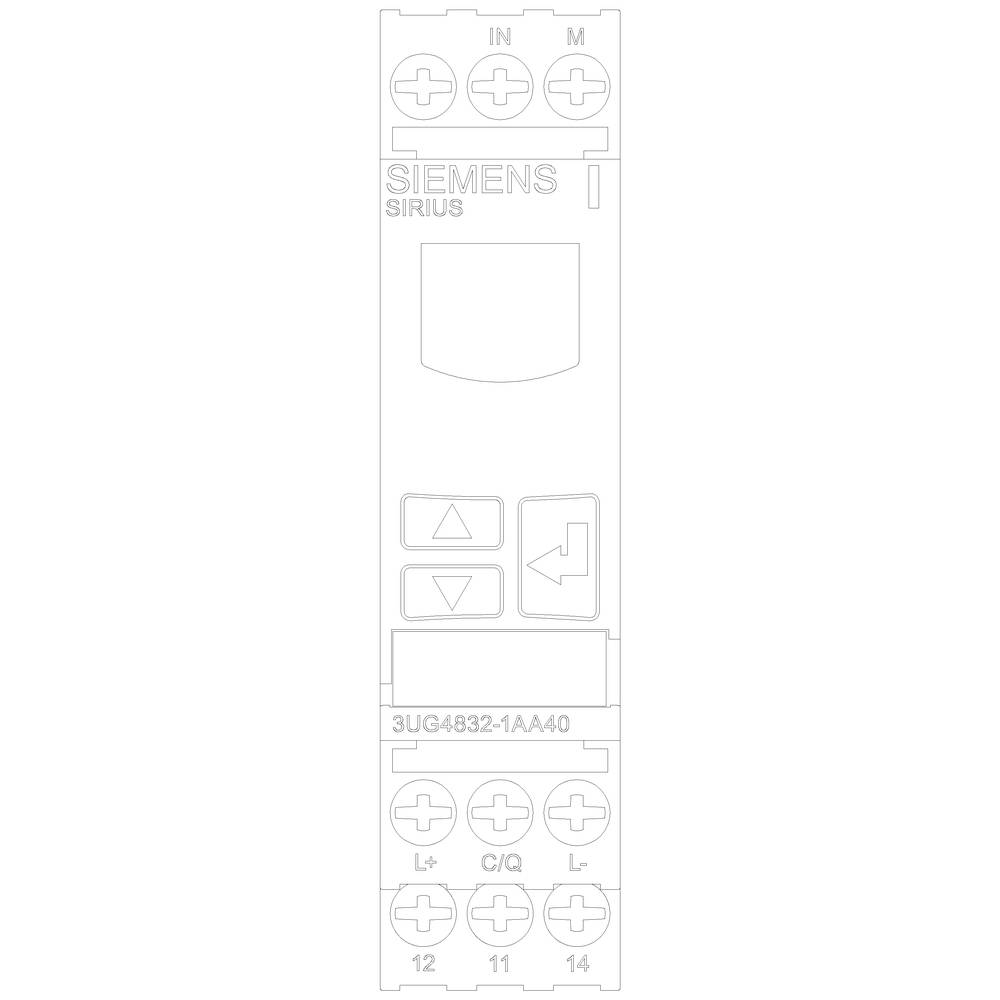

An electrical device with the imprint 'SIEMENS SIRIUS'. It has multiple connectors and buttons for controlling functions.

1/5

Image similar

Product type

Voltage monitoring relay

Type

3UG4832-1AA40

Dim

(L x W x H) 91 x 22.5 x 92 mm

Weight

147 g

Width

22.5 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

87 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 249.99 / piece)

€ 249.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: Snap-on mounting
Design of the Electrical Connection: screw terminals.

Type: 3UG4832-1AA40

Product type: Voltage monitoring relay

Dim: (L x W x H) 91 x 22.5 x 92 mm

Weight: 147 g

Width: 22.5 mm

Height: 92 mm

Length: 91 mm

: 22.5

: 92 mm

: 91 mm

: TRUE

: TRUE

: FALSE

: TRUE

: FALSE

: TRUE

: FALSE

: TRUE

: TRUE

: TRUE

: AC/DC

: Screw connection

: 999.9 s

: 0 s

: 999.9 s

: 0 s

: DC

: 0

: 0

: 1

UKCA: yes

Variants(All information include VAT, plus shipping costs)

No. of relay outputs

Operating voltage

Product type

Siemens 3UG4501-1AA30 3UG45011AA30 Monitoring relay No. of relay outputs: 1

Item no:1740758

Dispatches on Fri 6 Nov

Conrad Electronic

24 V

Monitoring relay

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Siemens 3UG4501-2AA30 3UG45012AA30 Monitoring relay No. of relay outputs: 1

Item no:1703030

Dispatches on Fri 6 Nov

Conrad Electronic

24 V

Monitoring relay

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Siemens 3UG4501-2AW30 3UG45012AW30 Monitoring relay No. of relay outputs: 1

Item no:1740759

Dispatches on Fri 6 Nov

Conrad Electronic

240 V

Monitoring relay

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Siemens 3UG4511-1AN20 3UG45111AN20 Network monitor No. of relay outputs: 1

Item no:1740760

Dispatches on Fri 6 Nov

Conrad Electronic

260 V

Network monitor

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Siemens 3UG4511-1AP20 3UG45111AP20 Network monitor No. of relay outputs: 1

Item no:1750477

Dispatches on Fri 6 Nov

Conrad Electronic

500 V

Network monitor

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Siemens 3UG4511-1AQ20 3UG45111AQ20 Network monitor No. of relay outputs: 1

Item no:1748653

Dispatches on Fri 6 Nov

Conrad Electronic

690 V

Network monitor

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Siemens 3UG4511-1BQ20 3UG45111BQ20 Network monitor No. of relay outputs: 2

Item no:1740761

Dispatches on Fri 6 Nov

Conrad Electronic

690 V

Network monitor

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Siemens 3UG4511-2AN20 3UG45112AN20 Network monitor No. of relay outputs: 1

Item no:1740762

Dispatches on Tue 10 Nov

Conrad Electronic

260 V

Network monitor

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Siemens 3UG4511-2AP20 3UG45112AP20 Network monitor No. of relay outputs: 1

Item no:1740763

Dispatches on Fri 6 Nov

Conrad Electronic

500 V

Network monitor

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Siemens 3UG4511-2AQ20 3UG45112AQ20 Network monitor No. of relay outputs: 1

Item no:1740764

Dispatches on Tue 10 Nov

Conrad Electronic

690 V

Network monitor

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Documents & Downloads

Datasheet

Datasheet 1753025 Siemens 3UG4832-1AA40 3UG48321AA40 Voltage monitoring relay

User & Safety Instructions

User & Safety Instructions 1753025 Siemens 3UG4832-1AA40 3UG48321AA40 Voltage monitoring relay

Description

Digital monitoring relay for residual current monitoring with residual-current transformer 3UL23 for IO-Link Setting range 0.03 A to 40 A separate for warning threshold and switch-off value ON delay and tripping delay 0 to 999.9 s Shutdown hysteresis up to 50% Warning hysteresis 5% fixed Width 22.5mm, 2 change-over contacts with or without fault buffer spring-type connection system
