Name: Siemens 5ST3716 NON-WITHDRAWABLE CIRCUIT Pin busbar 16 mm² 80 A 1 pc(s)
Brand: Siemens
SKU: 1706537
Availability: InStock

'Phase busbar with multiple terminals used for the distribution of electrical energy. The terminals are marked as L1, L2, L3.'

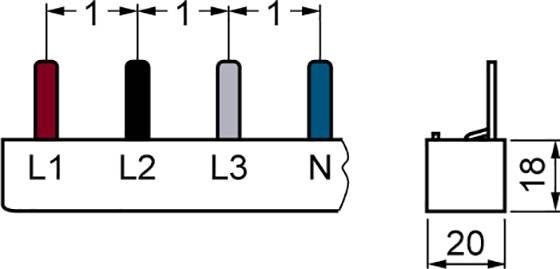

'Connection diagram with four vertical cables: L1 red, L2 black, L3 grey, N blue. Dimensions: Height 18 mm, Width 20 mm.'

1/2

Image similar

Product type

Pin busbar

Cross section

16 mm²

Dim

(L x W) 1016 mm x 21.4 mm

Nominal current

80 A

Nominal current - rounded value

80 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 109.99 / piece)

€ 109.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Phase number: 4

Product type: Pin busbar

Cross section: 16 mm²

Dim: (L x W) 1016 mm x 21.4 mm

Nominal current: 80 A

Nominal current - rounded value: 80 A

Type: 4-phase

Content: 1 pc(s)

Width: 21.4 mm

Length: 1016 mm

: TRUE

: 4

: 16 mm²

: 1016 m

: 56

: Pin

: 14

: 18

UKCA: yes
