Siemens 5SV13164KK16 RCBO 16000 mA 0.03 A 230 V
Product type
RCBO
Number of pins
1
Release characteristics
C
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 124.99 / piece)
€ 124.99
incl. VAT
14-day return policy included
Technical specifications
- Type
Super-resistant K
- Product type
RCBO
- Number of pins
1
- Release characteristics
C
- Differential current rating
0.03 A
- RoHS-compliant
Yes
- Factory colour
Multicolour

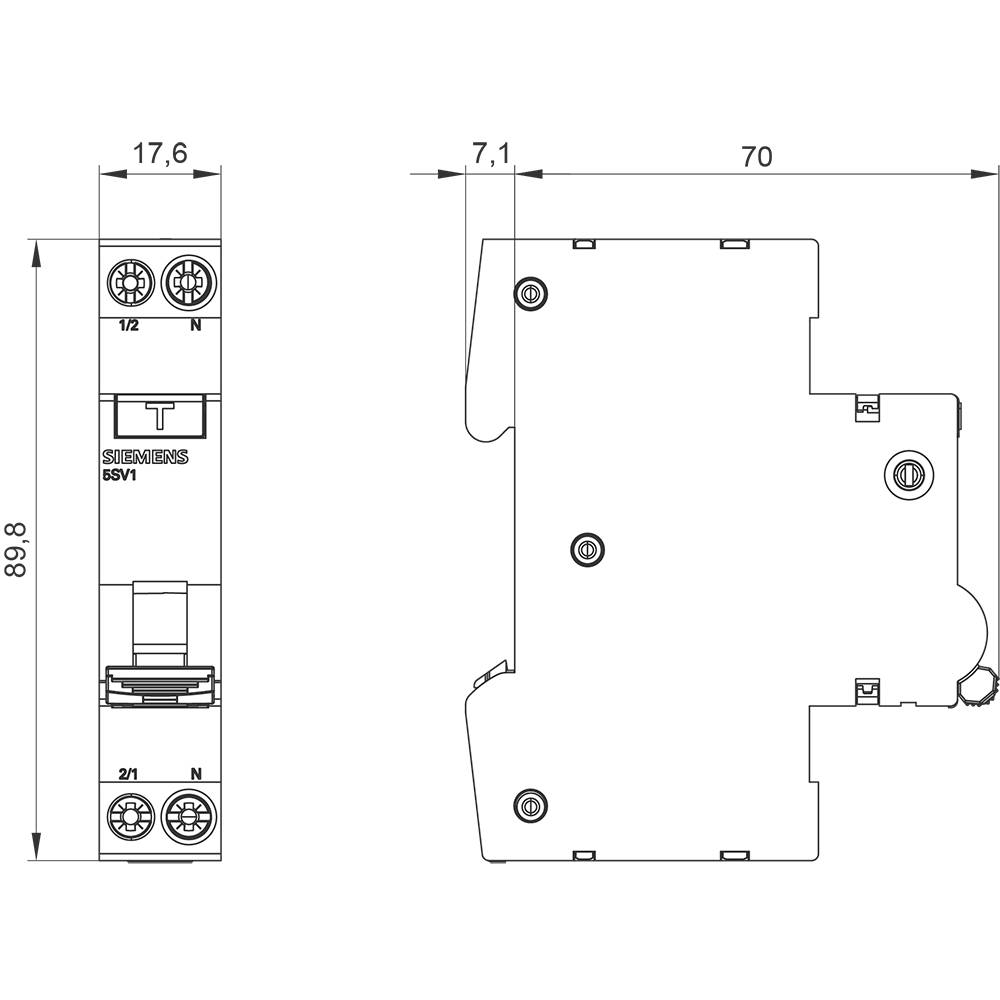

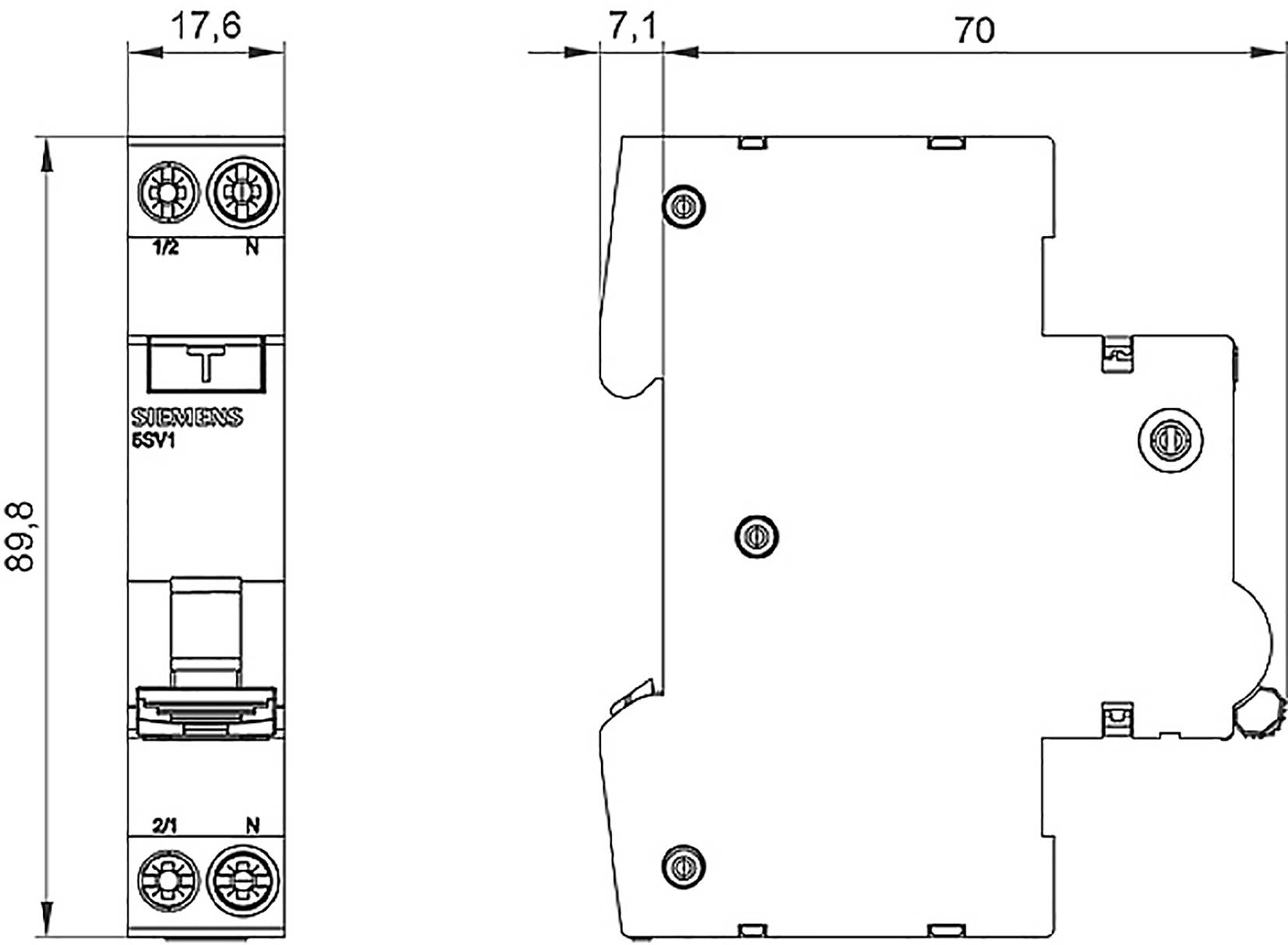

- Dim
(W x H x D) 18 x 90 x 70 mm
- Content
1 pc(s)
- Nominal current
16000 mA
- Nominal current - rounded value
16 A
- Switch-off capacity
6 kA
- Operating voltage
230 V
- Nominal voltage
230 V
- Width
18 mm
- Height
90 mm
- Depth
70 mm
- Weight
0
AC
70 mm
16 A
230 V
C
253 V
0.03 A
F
3 kA
3
2
2
1
IP20
1
TRUE
10 kA
TRUE
2
TRUE
4
6
Other
6
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2388770 Siemens 5SV13164KK16 RCBO 16000 mA 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 2388770 Siemens 5SV13164KK16 RCBO 16000 mA 0.03 A 230 V
Description
FI/LS compact 1P+N 6kA type F 30mA, super-resistant K, C16 the FI switch is the residual current protection device for touch protection Siemens' patented residual current protection devices are an important component of the SENTRON protective components for electrical installation, because they prevent life-threatening electric shocks by safely switching off dangerous fault currents against earth. Electrically ignited fires can be prevented even in the . Whether by direct contact with live parts during operation or by indirect contact with equipment, the protection is achieved primarily by rapid shutdown. The Siemens 5SV FI circuit breakers are characterized above all by: 1. Comprehensive protection for persons and property against electric shock. 2. Whether sinusoidal AC fault currents or smooth DC fault currents, Siemens offers the right type and special versions for all requirements. 3. Reliable safety during installation thanks to the standard included comprehensive and touch protection. 4. Tool-free release from the DIN rail or from the busbar network by means of convenient slide-manual operation. 5. Datamatrix code on the front of the device offers all information about the FI-circuit breaker quickly and easily. 6. Be protected according to standards: The residual current circuit breakers comply with the DIN VDE regulations. 7. Optimum technology for your safety - only from Siemens.
