Buy Siemens 5SV13167KK04 RCBO 2-pin 4 A 0.03 A 230 V

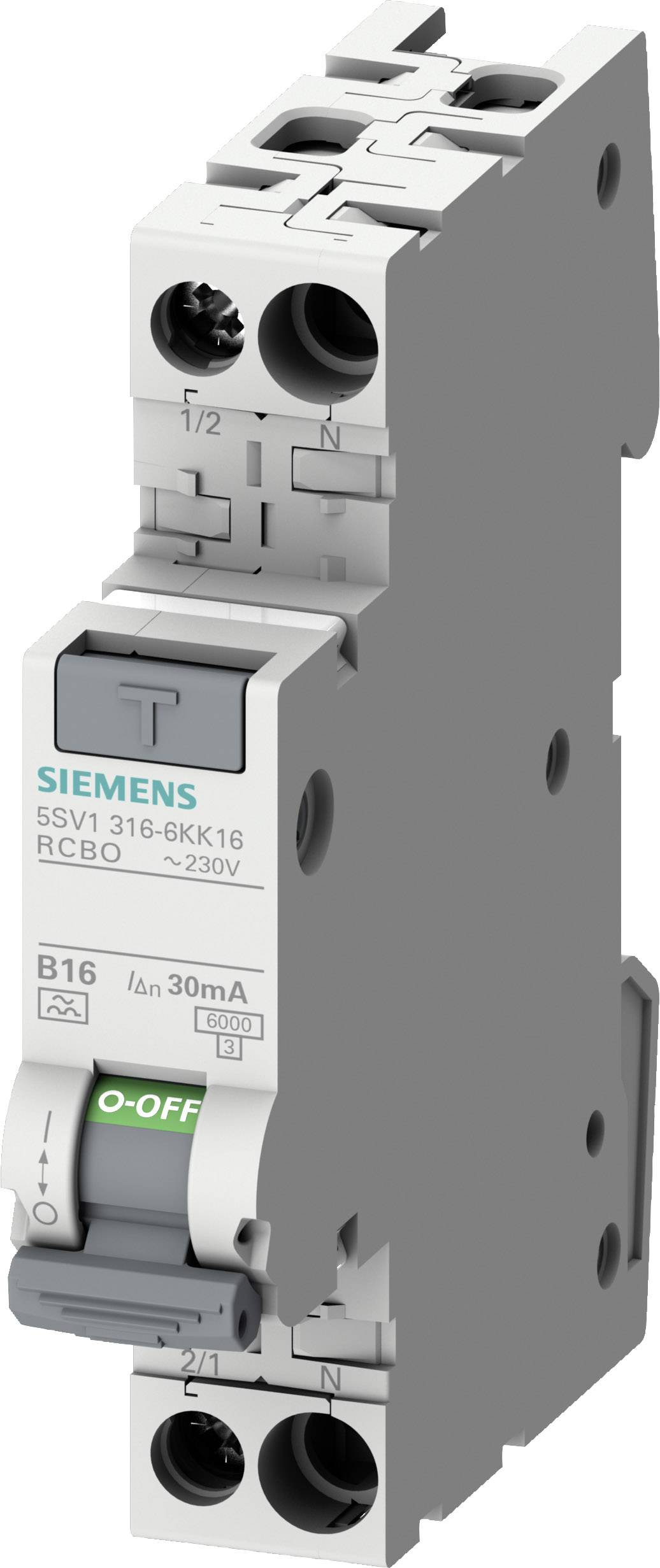

A grey Siemens RCBO protective switch with the switch in the "OFF" position. Technical specifications label visible.

Comparison of FI/LS Switches: The 5SU1 is 2 TE wide, the new 5SV1 is 1 TE wide. An arrow points from old to new.

Technical drawing of an electrical circuit with a switch, relay, and connections. Markings indicate various connection points.

Technical drawing of an electronic component with dimensions: 89.8 mm height, 17.6 mm width and 70 mm depth.

1/4

Product type

RCBO

Number of pins

Release characteristics

Differential current rating

0.03 A

Nominal current - rounded value

4 A

Datasheet (PDF)

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 65.54 / piece)

€

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

FI/LS compact 1P+N 6kA type A 30mA C4.

Very compact design 1 TE
Without delay
This text is machine translated.

Technical specifications

Operating frequency: 50 Hz

Type: Switch-off description: without delay

Nominal voltage (details): 230 V

Product type: RCBO

Number of pins: 2

Release characteristics: C

Differential current rating: 0.03 A

RoHS-compliant: Yes

Dim: (W x H x D) 18 x 90 x 70 mm

Content: 1 pc(s)

Nominal current: 4 A

Nominal current - rounded value: 4 A

Switch-off capacity: 6

Operating voltage: 230 V

Nominal voltage: 230 V

Width: 18 mm

Height: 90 mm

Depth: 70 mm

: AC

: 70 mm

: 4 A

: 230 V

: C

: 253 V

: 0.03 A

: A

: 1 kA

: 3

: 2

: 2

: 1

: IP20

: 1

: TRUE

: 10 kA

: TRUE

: 2

: TRUE

: 4

: 6

: Undelayed

: 6

Documents & Downloads

Datasheet

Datasheet 1891747 Siemens 5SV13167KK04 RCBO 2-pin 4 A 0.03 A 230 V

User & Safety Instructions

User & Safety Instructions 1891747 Siemens 5SV13167KK04 RCBO 2-pin 4 A 0.03 A 230 V

Description

FI/LS compact 1P+N 6kA type A 30mA C4 The FI switch is the residual current protection device for touch protection The patented residual current protection devices from Siemens are an important component of the SENTRON protective components for electrical installation, because they prevent life-threatening electric shocks through safe switching off of dangerous fault currents against earth. Electrically ignited fires can be prevented even in the . Whether by direct contact with live parts during operation or by indirect contact with equipment, the protection is achieved primarily by rapid shutdown. The Siemens 5SV FI circuit breakers are characterized above all by: 1. Comprehensive protection for persons and property against electric shock. 2. Whether sinusoidal AC fault currents or smooth DC fault currents, Siemens offers the right type and special versions for all requirements. 3. Reliable safety during installation thanks to the standard included comprehensive and touch protection. 4. Tool-free release from the DIN rail or from the busbar network by means of convenient slide-manual operation. 5. Datamatrix code on the front of the device offers all information about the FI-circuit breaker quickly and easily. 6. Be protected according to standards: The residual current circuit breakers comply with the DIN VDE regulations. 7. Optimum technology for your safety - only from Siemens.
