Buy Siemens 5SV13167KK13 RCBO 2-pin 13 A 0.03 A 230 V

Siemens RCBO Circuit Breaker 5SV1 316-6KK16, 230V, grey, with lever for circuit interruption and reset.

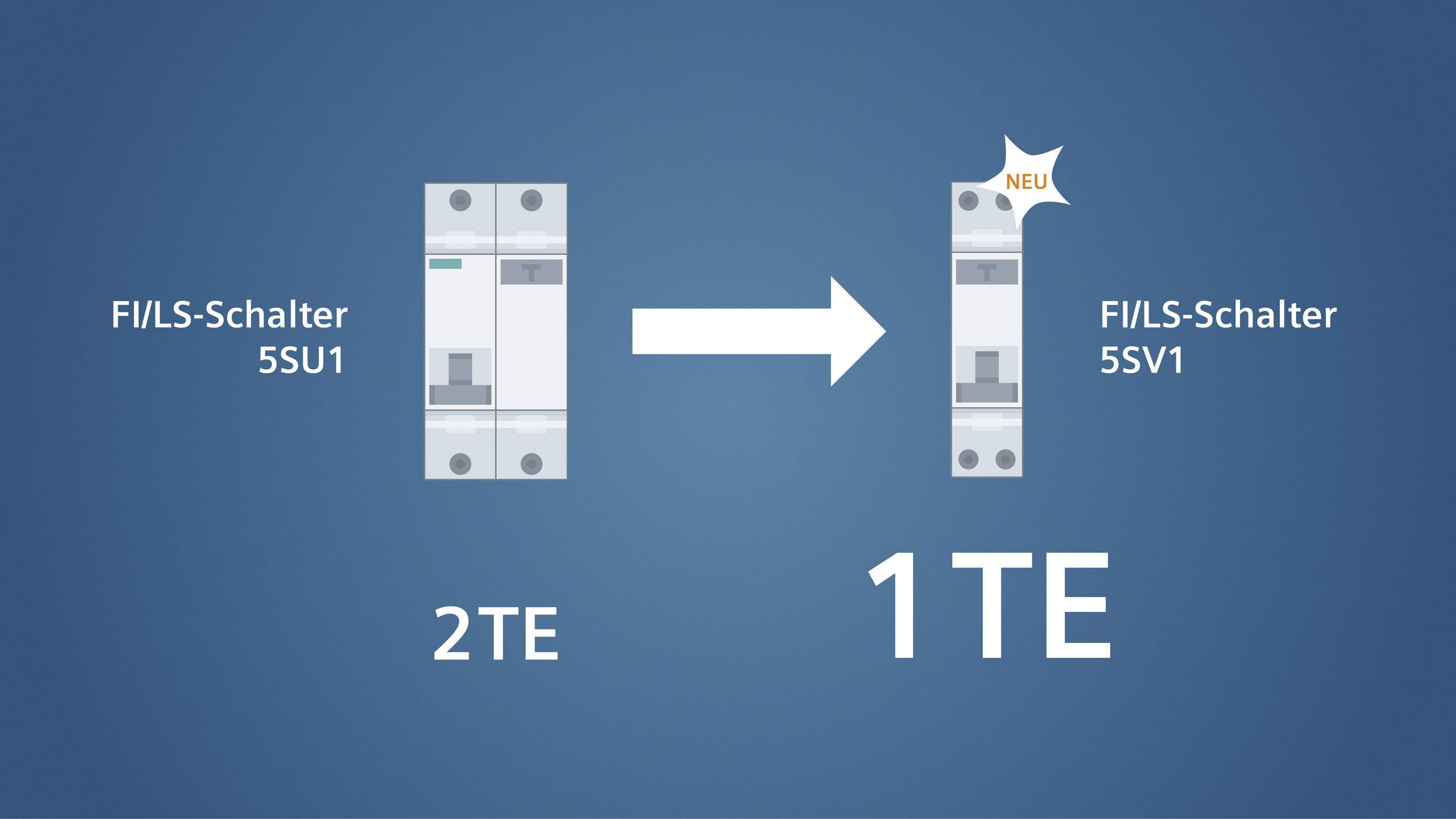

Electrical RCD/MCB Switch Comparison: On the left '5SU1' with 2 module widths, on the right new compact '5SV1' with only 1 module width. Arrow indicates reduction.

Diagram of a pneumatic circuit diagram with valve, cylinder, and piping symbols. Labels 'Q', '1/2', '2/1' are visible.

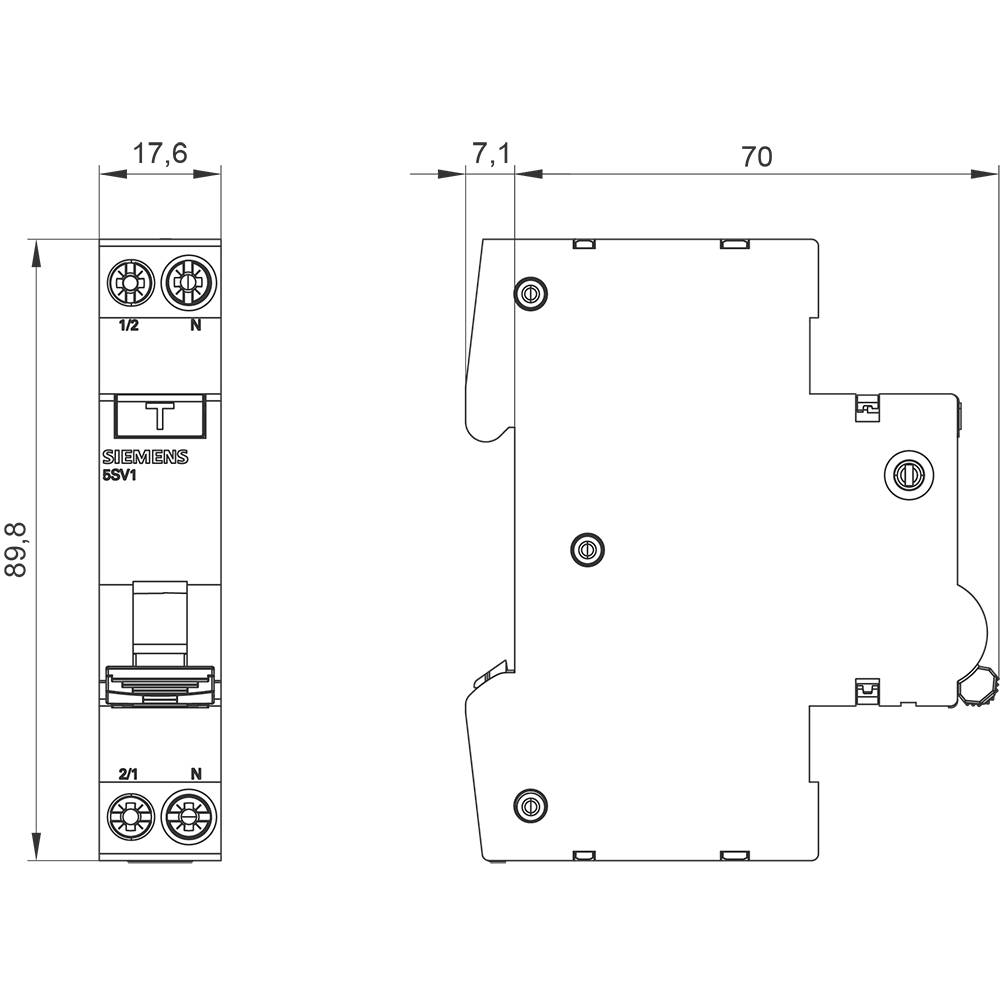

'Siemens 5SV1' circuit diagram shows the dimensions of a protective switch. The plan specifies width, height, and connection details for installation.

1/4

Product type

RCBO

Number of pins

Release characteristics

Differential current rating

0.03 A

Nominal current - rounded value

13 A

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

63 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 52.09 / piece)

€ 52.09

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

FI/LS compact 1P+N 6kA type A 30mA C13.

Very compact design 1 TE
Without delay
This text is machine translated.

Technical specifications

Operating frequency: 50 Hz

Type: Switch-off description: without delay

Nominal voltage (details): # 230/240 V

Product type: RCBO

Number of pins: 2

Release characteristics: C

Differential current rating: 0.03 A

RoHS-compliant: Yes

Factory colour: Multicolour

Dim: (W x H x D) 18 x 90 x 70 mm

Content: 1 pc(s)

Nominal current: 13 A

Nominal current - rounded value: 13 A

Switch-off capacity: 6 kA

Nominal voltage: 230 V

Width: 18 mm

Height: 90 mm

Depth: 70 mm

: AC

: 70 mm

: 13 A

: 230 V

: C

: 253 V

: 0.03 A

: A

: 1 kA

: 3

: 2

: 2

: 1

: IP20

: 1

: TRUE

: 10 kA

: TRUE

: 2

: TRUE

: 4

: 6

: Undelayed

: 6

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1891722 Siemens 5SV13167KK13 RCBO 2-pin 13 A 0.03 A 230 V

User & Safety Instructions

User & Safety Instructions 1891722 Siemens 5SV13167KK13 RCBO 2-pin 13 A 0.03 A 230 V

Description

FI/LS compact 1P+N 6kA type A 30mA C13 The FI switch is the residual current protection device for touch protection The patented residual current protection devices from Siemens are an important component of the SENTRON protective components for electrical installation, because they prevent life-threatening electric shocks through safe switching off of dangerous fault currents against earth. Electrically ignited fires can be prevented even in the . Whether by direct contact with live parts during operation or by indirect contact with equipment, the protection is achieved primarily by rapid shutdown. The Siemens 5SV FI circuit breakers are characterized above all by: 1. Comprehensive protection for persons and property against electric shock. 2. Whether sinusoidal AC fault currents or smooth DC fault currents, Siemens offers the right type and special versions for all requirements. 3. Reliable safety during installation thanks to the standard included comprehensive and touch protection. 4. Tool-free release from the DIN rail or from the busbar network by means of convenient slide-manual operation. 5. Datamatrix code on the front of the device offers all information about the FI-circuit breaker quickly and easily. 6. Be protected according to standards: The residual current circuit breakers comply with the DIN VDE regulations. 7. Optimum technology for your safety - only from Siemens.
