Name: Siemens 5SV33444 5SV3344-4 RCCB B 4-pin 40 A 0.03 A 400 V
Brand: Siemens
SKU: 1891731

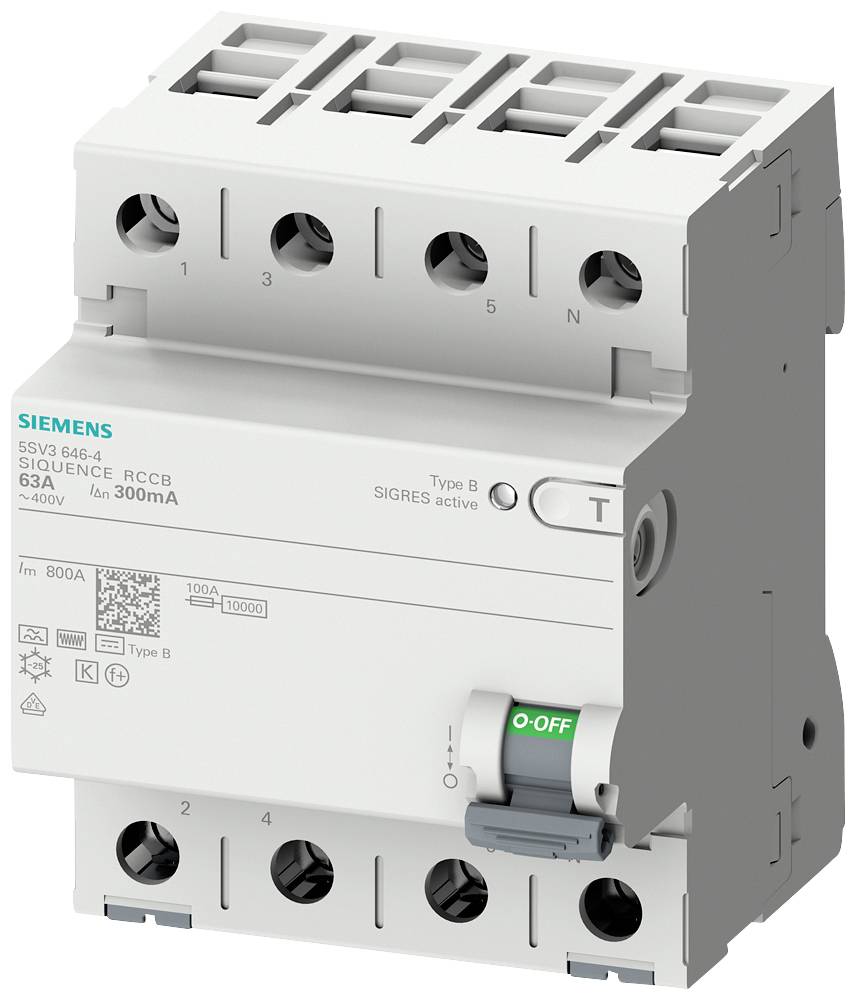

A Siemens RCD (Residual Current Device) with toggle switch in the 'Off' position. Suitable for 63A, Type B, 300mA, 4-pole.

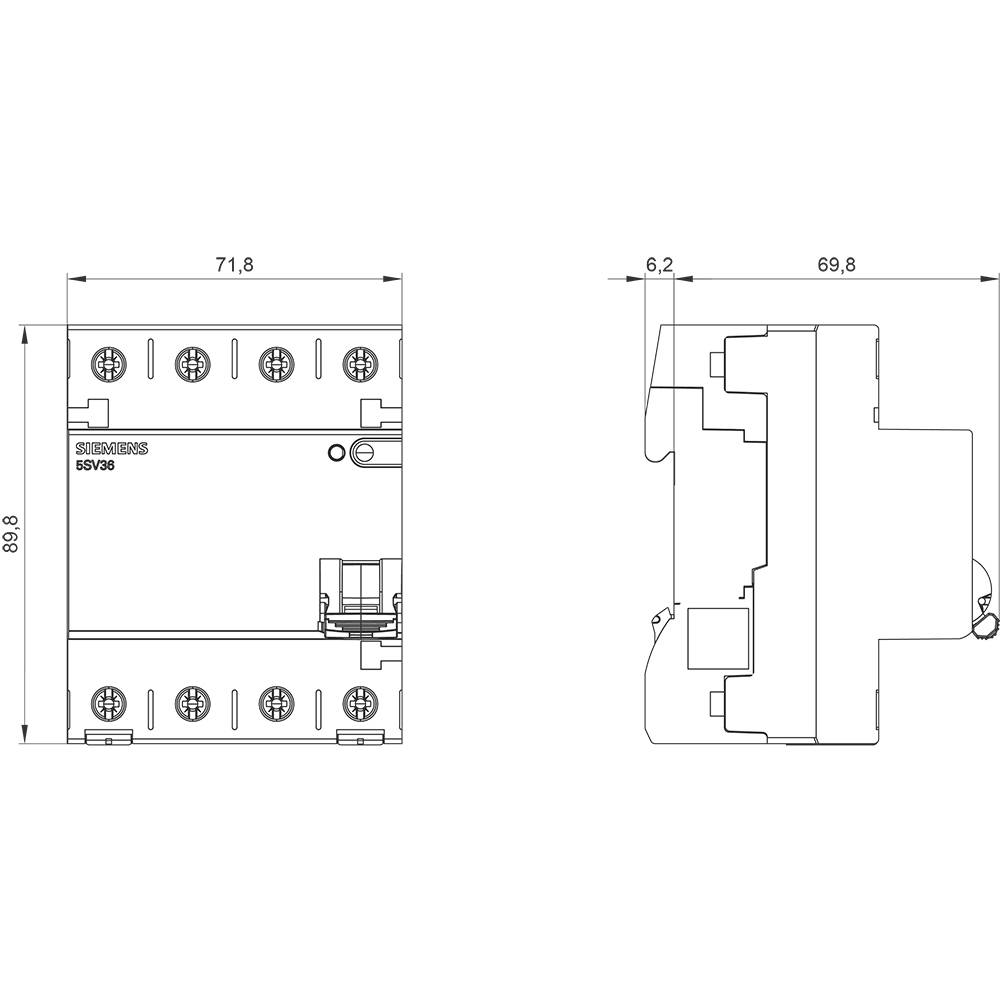

Technical drawing of a Siemens module with front and side views, showing dimensions and structured components for assembly.

1/2

Image similar

Product type

RCCB

Number of pins

Release characteristics

Differential current rating

0.03 A

Nominal current - rounded value

40 A

Datasheet (PDF)

Unavailable

20 Piece(s)

Show alternatives

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

FI-Safety switch, 4-PIN, Type B, short-term delayed, In: 40 A, 30 mA

Short-time delayed
Finger and hand back safely
This text is machine translated.

Technical specifications

Mechanical life (Cycles): 10000
IP20, for distributor installation, with the connected conductors

Product type: RCCB

Number of pins: 4

Release characteristics: B

Differential current rating: 0.03 A

Nominal current: 40 A

Nominal current - rounded value: 40 A

Dim: (L x W x H) 150 cm x 72 mm x 90 mm

Switch-off capacity: 0.8 kA

Factory colour: Multicolour

Content: 1 pc(s)

Nominal voltage: 400 V

Width: 72 mm

Height: 90 mm

Length: 150 cm

Depth: 77 mm

RoHS-compliant: Yes

Type: B

: DIN rail

: AC

: 70 mm

: 40 A

: 400 V

: 2000 V

: 4

: 0.03 A

: B

: FALSE

: 10 kA

: 3 kA

: 2

: 4

: TRUE

: 7035

: 2.5 W

: 50/60 Hz

: IP20

: TRUE

: TRUE

: 6

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1891731 Siemens 5SV33444 5SV3344-4 RCCB B 4-pin 40 A 0.03 A 400 V

User & Safety Instructions

User & Safety Instructions 1891731 Siemens 5SV33444 5SV3344-4 RCCB B 4-pin 40 A 0.03 A 400 V

Description

FI-Safety switch, 4-PIN, Type B, short-term delayed, In: 40 A, 30 mA, Un AC: 400 V SIGRES: difficult ambient conditions, extended test interval FI-circuit breaker SENTRON 5SV3 for the comprehensive protection of persons and property from electrical shock.
The FI-circuit breaker offers reliable safety in the installation by the usual comprehensive and protection against contact. You can release the FI circuit-breaker without tools from the DIN rail or from the bus rail system with the convenient slide-hand operation. The data matrix code on the device gives you quick access to all technical data in the Siemens Industry Online Support APP.
The SENTRON protection relays can be extended by many functions using the integrated accessories from the system module.
Optimal technology for your safety - only from Siemens.

This text is machine translated.
