Siemens 6EP33363SB000AX0 Rail mounted PSU (DIN) 24 V 20 A Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Nominal input voltage
AC 100 V - 240 V
- Product type
Rail mounted PSU (DIN)
- Max. output current
20 A
- Output current (max.) - rounded
20 A
- Output voltage (nominal)
24 V
- Manufacturer part #
6EP33363SB000AX0
- Content
1 pc(s)
- PSU features
Automatic range selector
- Type
6EP3336-3SB00-0AX0
70
135 mm
125 mm
225 mm
70 mm
AC
480 W
IP20
20 A
24 V
20 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3044576 Siemens 6EP33363SB000AX0 Rail mounted PSU (DIN) 24 V 20 A Content 1 pc(s)
Description

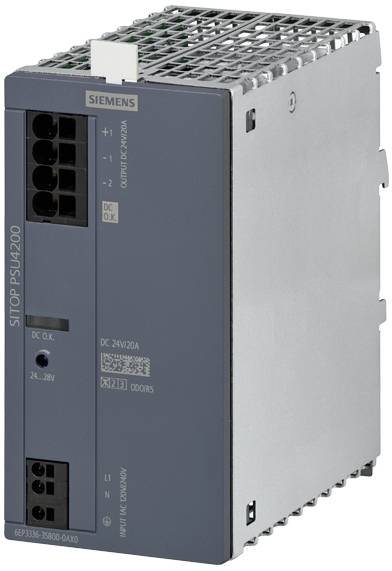

SITOP PSU4200 1AC 24 V/20 A regulated power supply PSU4200 input: AC 120/240 V output: DC 24 V/20 A The 1-phase power supplies SITOP PSU4200 are designed for basic requirements in the industrial environment and offer all important functions at a reasonable price. The input with automatic voltage range switching enables the connection to various 1-phase supply networks. Due to their narrow width, the power supplies require a small space on the DIN rail and their good degree of efficiency, low heat loss is generated in the control cabinet. To further increase the 24 V availability, the SITOP PSU4200 power supplies can be combined with buffer, redundancy and selectivity modules. No matter which industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.
