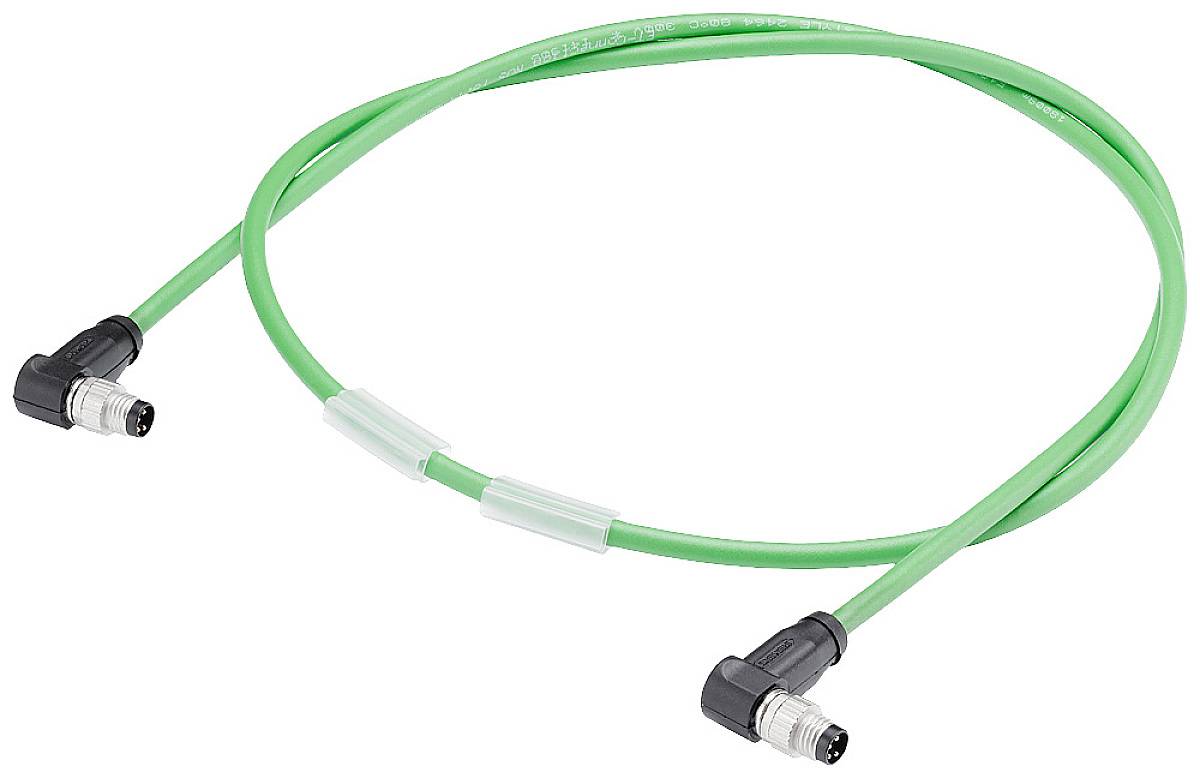

Siemens 6ES71942LH030AB0 6ES7194-2LH03-0AB0 PLC bus cable
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 45.99 / piece)
€ 45.99
incl. VAT
14-day return policy included
Technical specifications
- The color of the cable sheath: Green
- Case material: metal
- Material of the cable sheath: PVC
- The material of the wire insulation: PE
- Number of electrical wires: 4
- Outer diameter of the inner conductor: 0.5 mm
- Outer diameter of the wire insulation: 1 mm
- Outer diameter of the cable sheath: 5 mm
- Color of the wire insulation of the data wires: white/yellow/blue/orange
- The type of cable departure: 90° cable outlet
- Compatible with (details)
ET-Connection M8
- Product type
PLC bus cable
- Type
6ES7194-2LH03-0AB0
- Manufacturer part #
6ES71942LH030AB0
- Type
2 x M 8 plugs, angled, 4-pin, shielded
- Length
0.3 m
- Width
30 mm
IP65
IP67
- Series
ET 200
- Dim
(L x W) 0.3 m x 30 mm
- Content
1 pc(s)
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-40 °C
PLC - PLC
4
0.3 m
Circular connector
Circular connector
TRUE
TRUE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1734747 Siemens 6ES71942LH030AB0 6ES7194-2LH03-0AB0 PLC bus cable
User & Safety Instructions
User & Safety Instructions 1734747 Siemens 6ES71942LH030AB0 6ES7194-2LH03-0AB0 PLC bus cable
Description
SIMATIC HMI IPC677C (Panel PC), 2x10/100/1000 Mbit/s Ethernet 4x USB V2.0, 1x serial (COM1) Watchdog, temperature and Fan monitoring RAID controller onboard 19" Touch, 1280x 1024 with front-side USB-Schnittstelle 24 V DC power supply Core I7-610E (2C/4T, 2.53GHz, TB, HT, VT, 4 MB cache) PROFIBUS/MPI (CP 5611-A2-compatible) 2 MB buffered SRAM 4 GB DDR3 1066 DIMM RAID1 2x 320 GB SATA (2.5") (mirror disks) DVD+-R+-RW 2x PCI free Windows 7 Ultimate 64 bit SP1, MUI (de, en, fr, es, it) without expansion (software) SIMATIC HMI Panel PC
