Name: Siemens 6ES7923-0BD00-0DB0 6ES79230BD000DB0 PLC cable 60 V
Brand: Siemens
SKU: 1754074
Availability: InStock

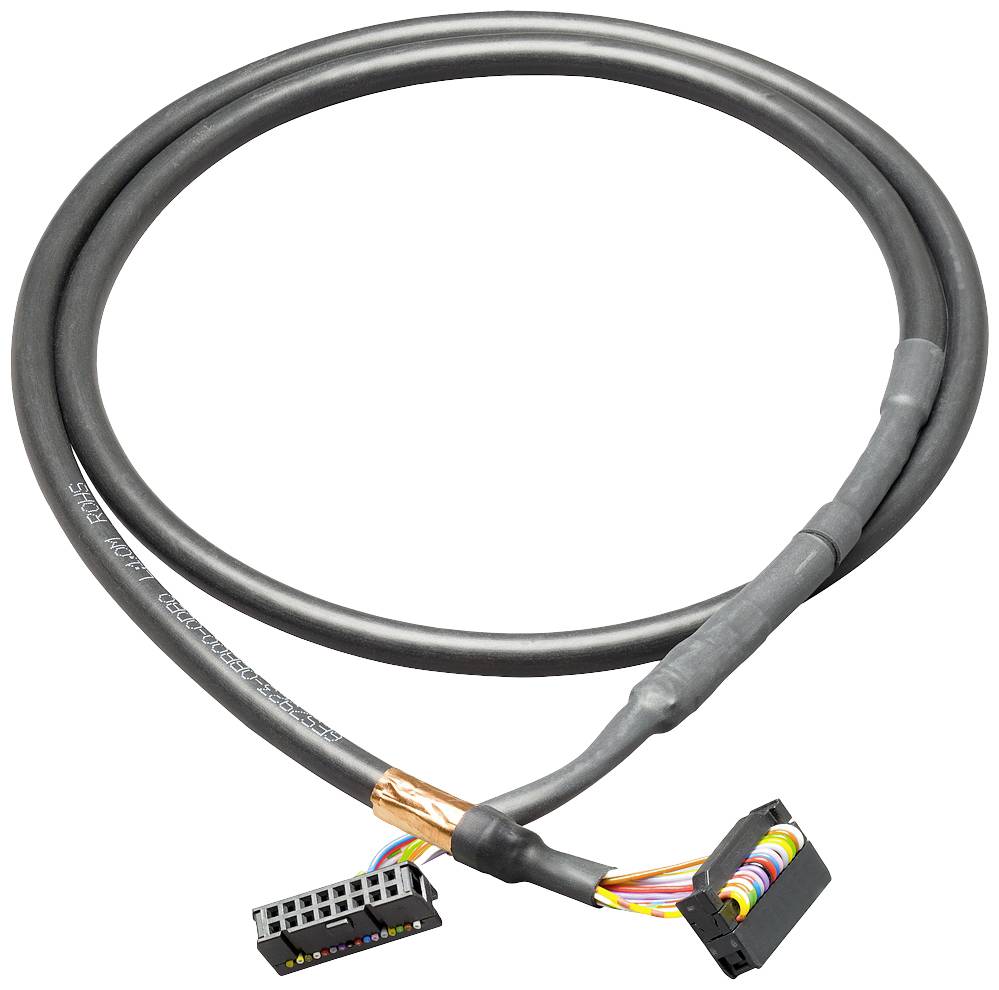

Cable harness with connectors at both ends. Colour-sheathed wires visible, suitable for technical connections.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

39 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 40.99 / piece)

€ 40.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of pins: 16
Cable sheath color: Black
Number of channels: 8
Outer diameter of cable sheath: 7 mm
Material of the cable sheath of the connecting cable: PVC
Conductor cross-section 0.14 mm²
Connector type: IDC connector

Product type: PLC cable

Min. operating voltage: 24 V

Operating voltage: 24 - 60 V

Max. operating voltage: 60 V

Operating voltage: 60 V

Length: 3 m

Type: 6ES7923-0BD00-0DB0

Manufacturer part #: 6ES79230BD000DB0

Type: Round cable

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

Series: SIMATIC

UKCA: yes
