Name: Siemens 6ES7923-0BF00-0DB0 6ES79230BF000DB0 PLC cable 60 V
Brand: Siemens
SKU: 1731693
Availability: InStock

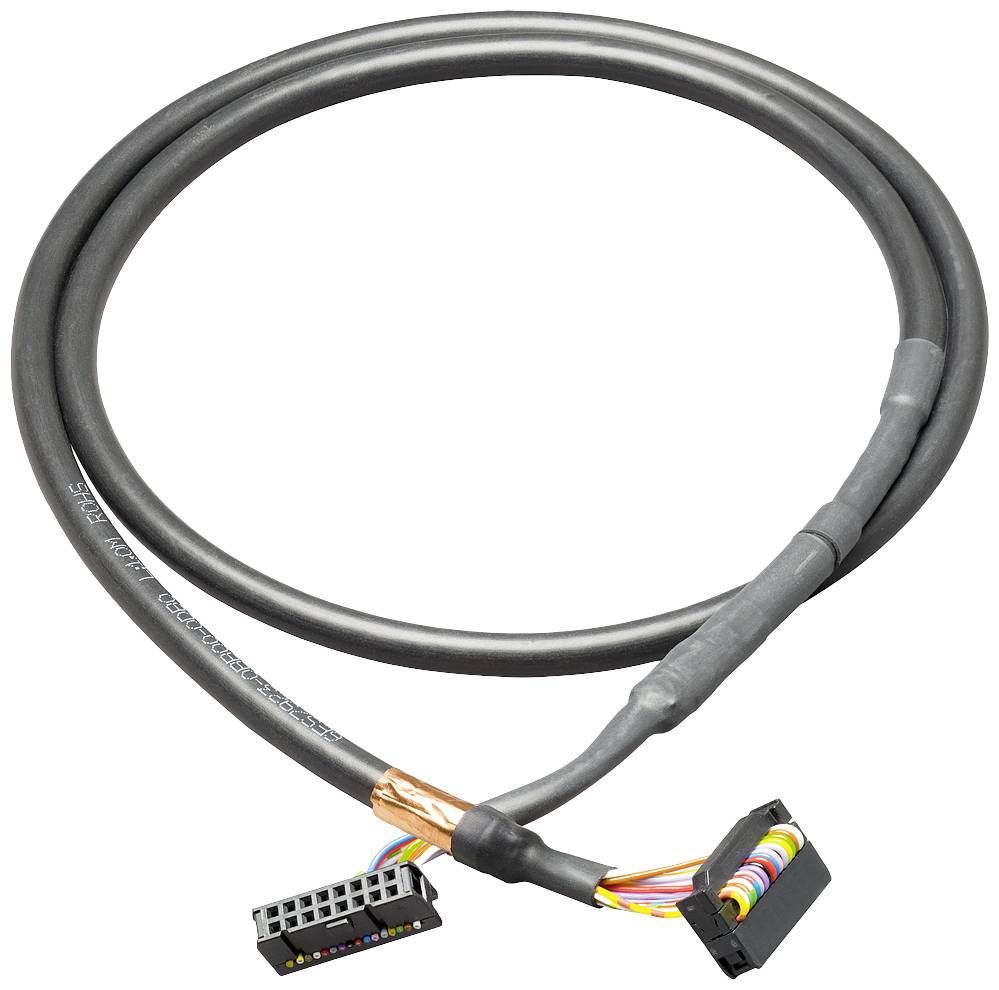

A black cable with two plugs at the ends, revealing colourful inner cables at one end. Primarily used for electronic connections.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

27 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 53.99 / piece)

€ 53.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of pins: 16
Cable sheath color: Black
Number of channels: 8
Outer diameter of cable sheath: 7 mm
Material of the cable sheath of the connecting cable: PVC
Conductor cross-section 0.14 mm²
Connector type: IDC connector

Product type: PLC cable

Min. operating voltage: 24 V

Operating voltage: 24 - 60 V

Max. operating voltage: 60 V

Operating voltage: 60 V

Length: 5 m

Type: 6ES7923-0BF00-0DB0

Manufacturer part #: 6ES79230BF000DB0

Type: Round cable

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

Series: SIMATIC

: PLC - other devices

: 16

: 5 m

: Connection plug board

: Connection plug board

: TRUE

: TRUE

: TRUE

: TRUE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1731693 Siemens 6ES7923-0BF00-0DB0 6ES79230BF000DB0 PLC cable 60 V

User & Safety Instructions

User & Safety Instructions 1731693 Siemens 6ES7923-0BF00-0DB0 6ES79230BF000DB0 PLC cable 60 V

Description

SCALANCE accessory Slide for screw mounting on a DIN rail 35 mm according to EN 50 022 scope of delivery: 1 pack=5 units Application examples: SCALANCE X208PRO, PS 791-1PRO, SCALANCE S602

Description

SCALANCE accessory Slide for screw mounting on a DIN rail 35 mm according to EN 50 022 scope of delivery: 1 pack=5 units Application examples: SCALANCE X208PRO, PS 791-1PRO, SCALANCE S602
