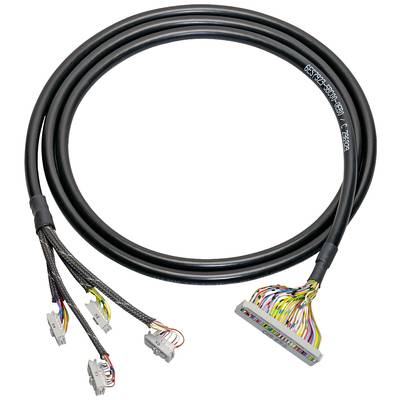

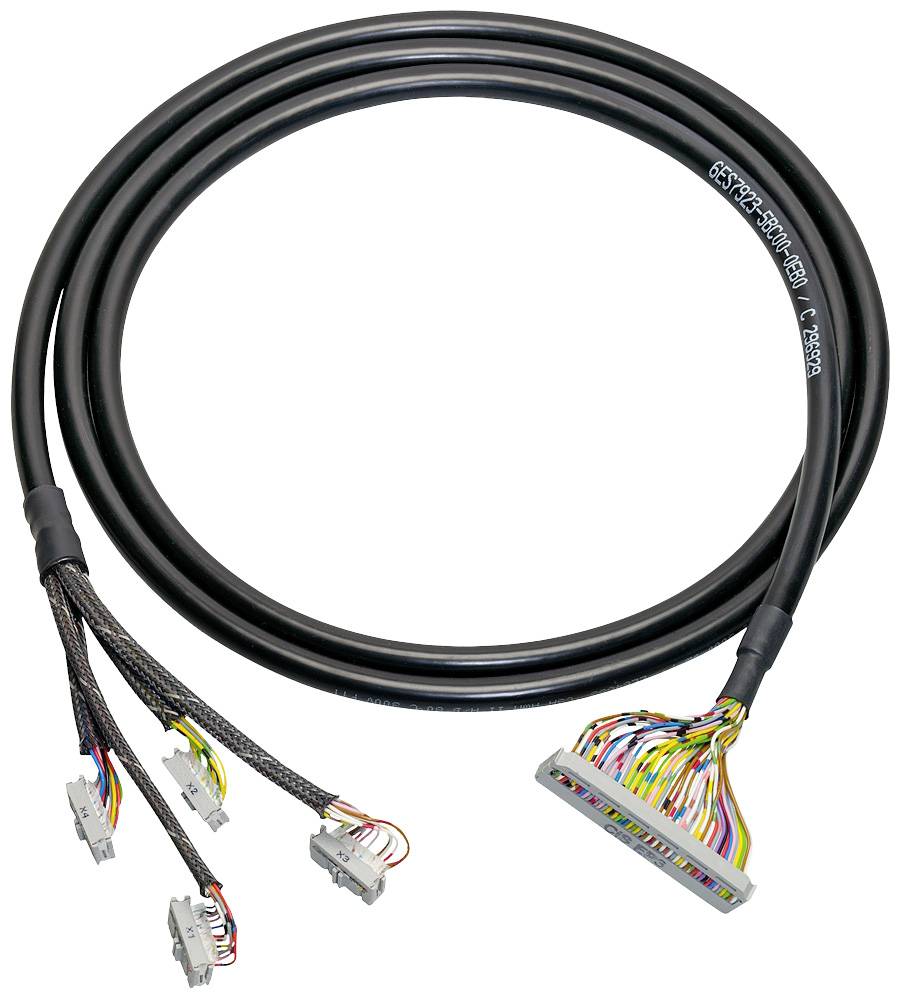

Siemens 6ES7923-5BC00-0EB0 6ES79235BC000EB0 PLC cable 60 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Technical specifications
- Number of pins: 50
- Cable sheath color: Black
- Number of channels: 32
- Outer diameter of cable sheath 10.3 mm
- Material of the cable sheath of the connecting cable: PVC
- Conductor cross-section 0.14 mm²
- Connector type: IDC connector
- Product type
PLC cable
- Min. operating voltage
24 V
- Operating voltage
24 - 60 V
- Max. operating voltage
60 V
- Operating voltage
60 V
- Length
2 m
- Type
6ES7923-5BC00-0EB0
- Manufacturer part #
6ES79235BC000EB0
- Type
Round cable
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
PLC - other devices
50
2 m
Connection plug board
Connection plug board
TRUE
TRUE
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1731710 Siemens 6ES7923-5BC00-0EB0 6ES79235BC000EB0 PLC cable 60 V
User & Safety Instructions
User & Safety Instructions 1731710 Siemens 6ES7923-5BC00-0EB0 6ES79235BC000EB0 PLC cable 60 V
Description
SCALANCE XC106-2, Unmanaged IE switch, 6x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s Multimode BFOC, LED diagnostics, error-signaling contact with set button, redundant Power supply Manual available as a download
