Name: Siemens 7LF4522-0 DIN rail mount timer digital 230 V AC 4000 W
Brand: Siemens
SKU: 197221
Availability: BackOrder

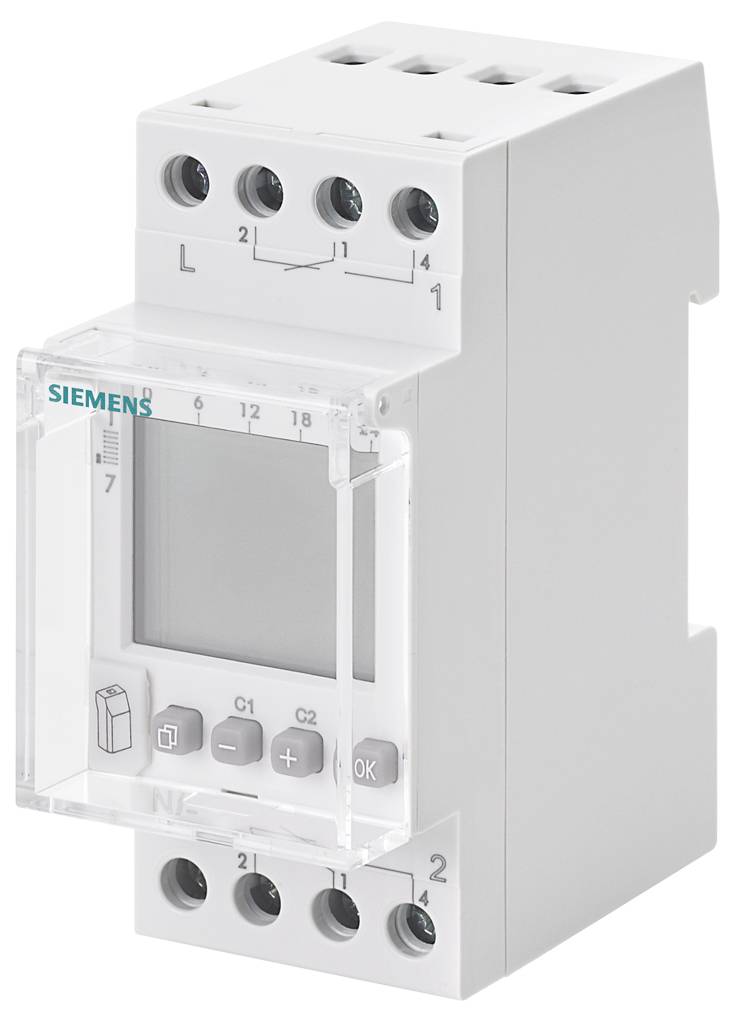

An electronic timer from Siemens. It has a digital display and multiple connections, suitable for controlling electrical systems.

A small digital display shows menu items: 'Options, Keys, Counter, Run-on, 1 k-Test, PIN Code' with arrow symbols on the right.

1/2

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 219.99 / piece)

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DIN rail mount timer

Operating voltage: 230 V AC

Channels: 2x CHANGEOVER

Type: digital

Type: 7LF4522-0

Manufacturer part #: 7LF45220

Dim: (L x W x H) 64 x 36 x 83 mm

Output rating: 4000 W

Width: 36 mm

Height: 83 mm

Length: 64 mm

Features: Progammable
Daylight savings control
Backlit display
RND mode
Holiday program mode
Impulse change-over

Output rating: 250 V/AC/16 A

Operating voltage: 230 V AC

: DIN rail

: 36

: 83 mm

: 70 mm

: 2

: 28

: 2

: FALSE

: TRUE

: FALSE

: Change-over contact

: 2

: TRUE

: TRUE

: TRUE

: TRUE

: TRUE

: TRUE

: TRUE

: FALSE

: TRUE

: TRUE

: TRUE

: AC

: TRUE

: TRUE

: 0.016666666 min

: 16 A

: TRUE

: IP20

: 0.1 s

: FALSE

Documents & Downloads

Datasheet

Datasheet 197221 Siemens 7LF4522-0 DIN rail mount timer digital 230 V AC 4000 W

User & Safety Instructions

User & Safety Instructions 197221 Siemens 7LF4522-0 DIN rail mount timer digital 230 V AC 4000 W

Description

Whether text-led programming in the languages: German, English, French, Italian, Spanish, Dutch, the work becomes more simpler and faster in each case directly at the equipment or completely comfortably at the PC, with the digital time switch clock A further highlight is the time; date and the summer/winter time conversion for Central Europe are already programmed before the delivery. Thus you can immediately begin with the programming. A further useful feature is the adjustment of the contrast of display, with which the display can be well read even with difficult lighting conditions and extreme temperatures

Features

56 programs
Background lighting
Summer/winter time switching mechanism
Hourly program
Daily schedule
Weekly schedule
Hour meter counting range 65,535 h
Random function
Holiday function
Cover lead-sealable. For simple preparation of program, the Siemens time switch clock “Profi" serves the USB adapter by means of PC inclusive of software (please order separately, order no. 19 72 33).
With 1channel design: Impulse function is adjustable with up to 84 start-up times with impulse time between 1 s and 59 min 59 s.
With 2-channel design: The 56 programs are divided on the channels (28 per channel).

Description

Features

56 programs
Background lighting
Summer/winter time switching mechanism
Hourly program
Daily schedule
Weekly schedule
Hour meter counting range 65,535 h
Random function
Holiday function
Cover lead-sealable. For simple preparation of program, the Siemens time switch clock “Profi" serves the USB adapter by means of PC inclusive of software (please order separately, order no. 19 72 33).
With 1channel design: Impulse function is adjustable with up to 84 start-up times with impulse time between 1 s and 59 min 59 s.
With 2-channel design: The 56 programs are divided on the channels (28 per channel).
