Siemens 8WD5300-1AB 8WD53001AB Indicator light (Ø x H) 70 mm x 66 mm Red 1 pc(s) Piece

Red warning light by Siemens, Model 8WD53. Indicates that it is suitable for 24V DC at 0.25A. Manufactured in Germany.

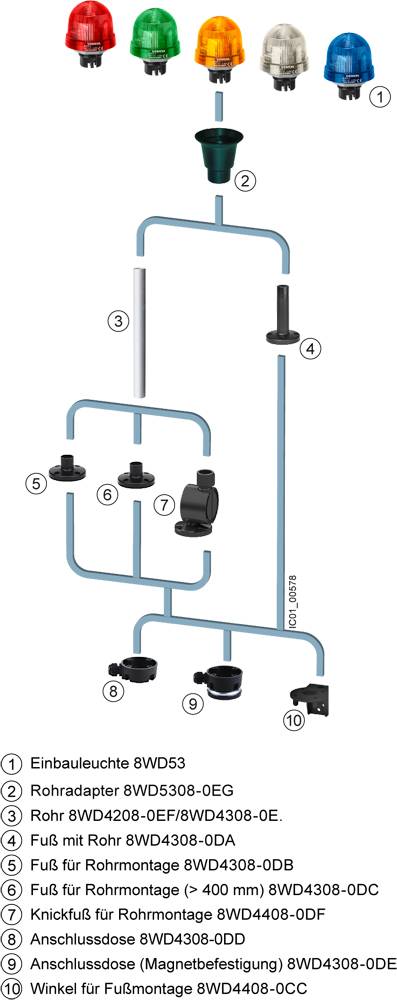

'Diagram: Circuit diagram for a signalling device with lights and various pipe connections. Shows installation elements and accessory parts.'

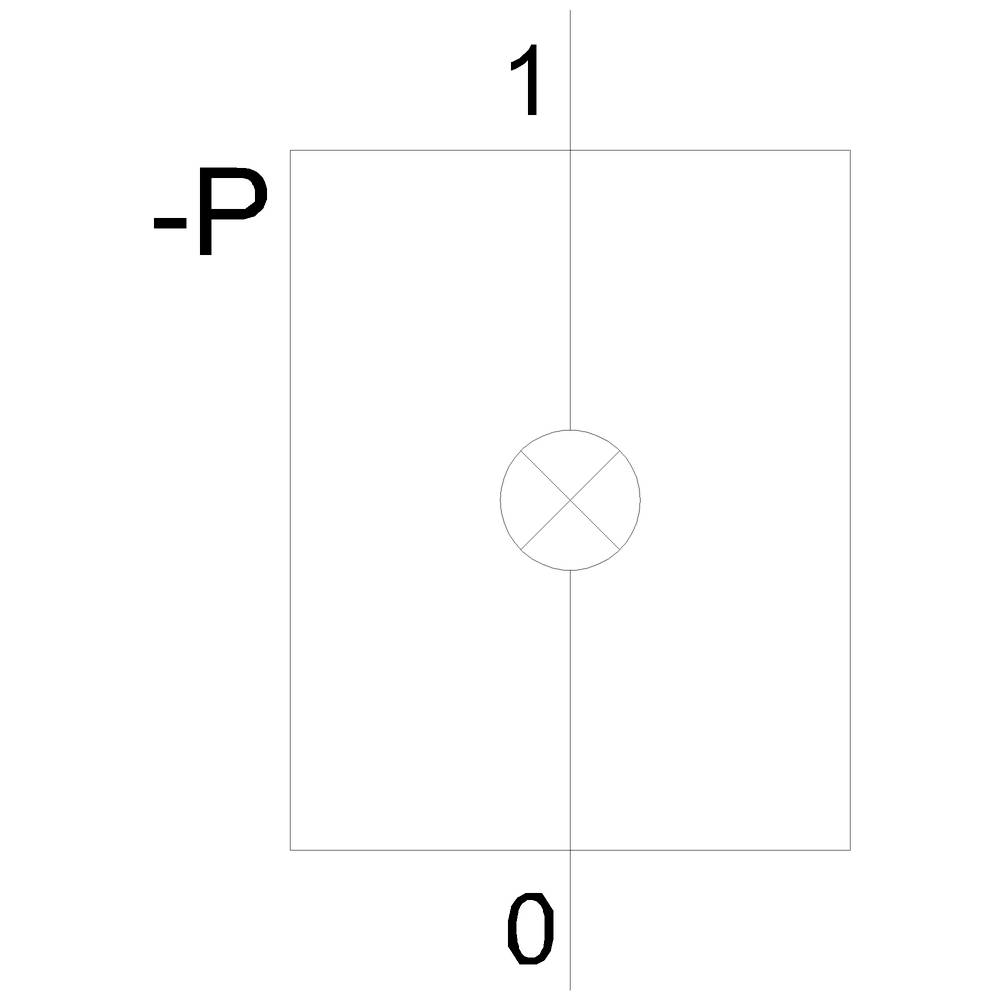

The diagram shows a motor circuit symbol with a central X marking. On the left is '-P', top right is '1', and bottom right is '0'.
Technical drawing of a circular object with dimensions. Diameter 97.5 mm, depth 96.5 mm. Side view and top view shown.
1/4
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 85.99 / piece)
€ 85.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Type of light bulb: bulb/LED
  • Operating voltage 230 V
  • External diameter: 75 mm
  • Consumed real power: 5 W
  • Design of the optical signal: continuous light
Packaging type

Piece

Product type

Indicator light

Type

Without Light Bulb

Factory colour

Red

Recess diameter

70 mm

Connection

Screws

Length

31 mm

Width

75 mm

Height

66 mm

(Ø)

70 mm

Dim

(Ø x H) 70 mm x 66 mm

IP65

Min. temperature

-20 °C

Max. temperature

+60 °C

Content

1 pc(s)

Type

8WD5300-1AB

RoHS-compliant

Yes

Built-in

BA15d

5 W

AC/DC

Other

Red

IP65

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1745062 Siemens 8WD5300-1AB 8WD53001AB Indicator light (Ø x H) 70 mm x 66 mm Red 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 1745062 Siemens 8WD5300-1AB 8WD53001AB Indicator light (Ø x H) 70 mm x 66 mm Red 1 pc(s) Piece

Description

adapter for shaft profiles 12 x 12 mm for drives 8UC6
