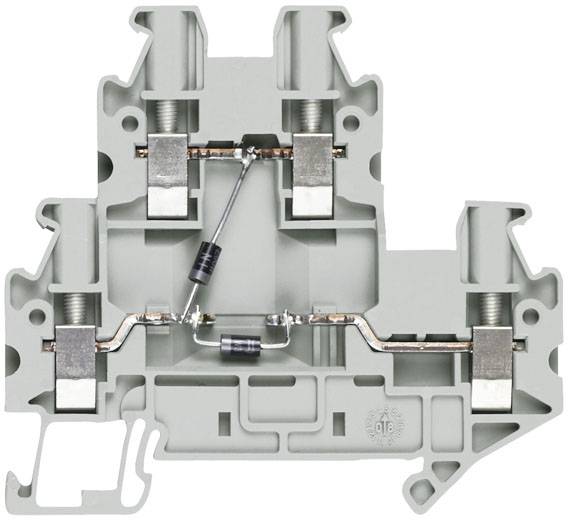

Siemens 8WH10205FF00 Dual port diode terminal 5.2 mm Screws Beige 50 pc(s) Piece
Packaging type
Piece
Product type
Dual port diode terminal
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Double level diode terminal with screw connection terminal size 2.5mm2 terminal mash.
Our service for you
Technical specifications
- Connectable conductor cross-section / fine-wired / with wire-end processing / maximum: 2.5 mm²
- connectable conductor cross-section / fine-wired / with wire-end processing / minimum: 0.14 mm²
- Number of terminal points / per terminal level: 2
- tightening torque / with screw connection / maximum: 0.8 Nm
- Tightening torque / with screw connection / minimum: 0.6 Nm
- Mounting type: DIN rail 35 mm
- flammability class in accordance with UL 94: V0
- Height / with low mounting type: 65 mm
- clamp pitch: 5.2 mm
- material / of the insulating body: Thermoplastic
- position / of the terminal clamp: Side
- product component / required / end plate: Yes
- ambient temperature / during operation / maximum: 55 °C
- ambient temperature / during operation / minimum: -25 °C.
- Packaging type
Piece
- Product type
Dual port diode terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5.2 mm
- No. of rows
2
- Factory colour
Beige
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
9 mm
- Manufacturer part #
8WH10205FF00
- Content
50 pc(s)
- Type
8WH1020-5FF00
- Dim
(L x W x H) 69.9 x 5.2 x 65 mm
- Width
5.2 mm
- Height
65 mm
- Length
69.9 mm
- RoHS-compliant
Yes
- Weight
16 g
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
7.72
69.9 mm
64.3 mm
500 V
69.9 m
V0
5.2 mm
65 mm
TRUE
Screw connection
Screw connection
2
2
FALSE
Thermoplastic
24 A
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2263869 Siemens 8WH10205FF00 Dual port diode terminal 5.2 mm Screws Beige 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2263869 Siemens 8WH10205FF00 Dual port diode terminal 5.2 mm Screws Beige 50 pc(s) Piece
Description
Double-level diode terminal with screw connection Terminal size 2.5mm2 Terminal width 5.2mm Color gray with Diodes Pass-through O-UL and UR-UL Terminal blocks - Connection technology for various industrial applications and modern building installation by Siemens. No matter whether you choose the screw, tension spring, push-in or quick connection: All connection methods can be combined freely with one another. The labeling and testing accessories are standardized and can be used across the board. Siemens terminal blocks can be used to implement many applications in industrial, industrial and residential buildings. Thus, you have the suitable connection technology for each connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and wires. 3. Implementation of a variety of applications. 4. Convenient and easy installation and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens.
