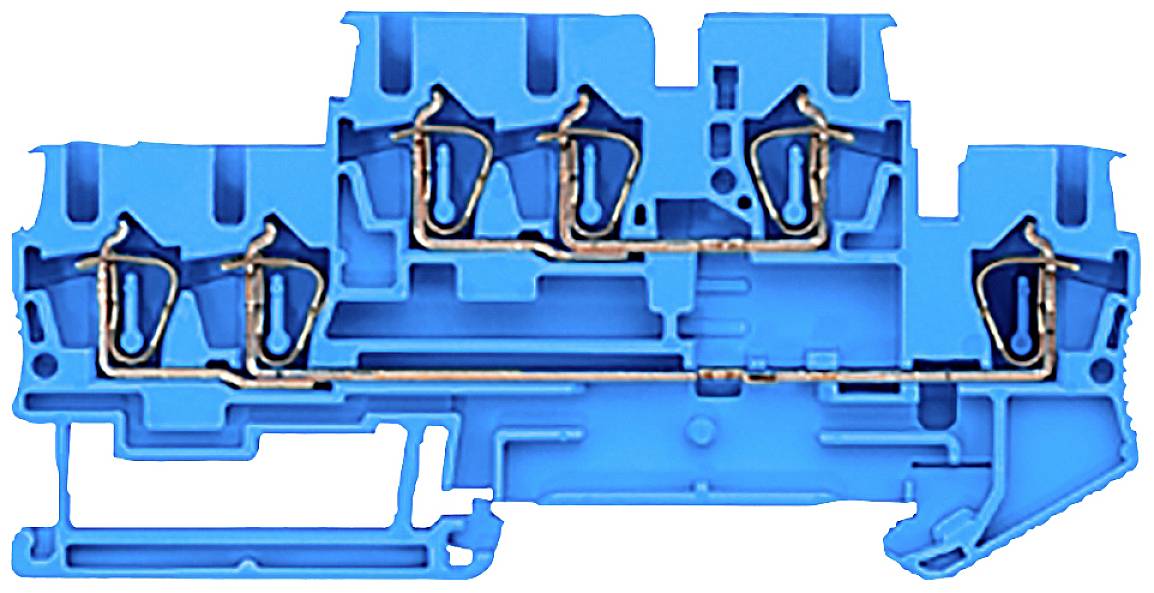

Name: Siemens 8WH20230AF01 Dual port terminal 5.2 mm Spring-loaded connector Configuration: Double Blue 50 pc(s) Piece
Brand: Siemens
SKU: 2263919

Image similar

Packaging type

Piece

Product type

Dual port terminal

Connection

Spring-loaded connector

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Double-level terminal with tension spring connection, 3 connection points, cross-section: 0.0.

8WH2023-0AF01

Our service for you

Technical specifications

Connectable conductor cross-section / fine-wired / with wire-end processing / maximum: 2.5 mm²
connectable conductor cross-section / fine-wired / with wire-end processing / minimum: 2.5 mm²
connectable conductor cross-section / multi-wire / maximum: 4 mm²
connectable conductor cross-section / multi-wire / minimum: 4 mm²
Number of terminal points / per terminal level: 3
type of mounting: DIN rail 35 mm
flammability class according to UL 94: V0
Height / with low-end mounting type: 47.5 mm
terminal pitch: 5.2 mm
Position / of the terminal clamp: Above
Product component / required / End plate: no
ambient temperature / during operation / maximum: 55 °C
ambient temperature / during operation / minimum: -25 °C.

Packaging type: Piece

Product type: Dual port terminal

Connection: Spring-loaded connector

Configuration: Double

Cross section (flexible) (min.): 2.5 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 4 mm²

Cross section (inflexible) (max.): 4 mm²

Clamp width: 5.2 mm

No. of rows: 2

Factory colour: Blue

Nominal current: 26 A

Nominal current - rounded value: 26 A

Nominal voltage: 500 V

Stripping length (max.): 10 mm

Manufacturer part #: 8WH20230AF01

Content: 50 pc(s)

Type: 8WH2023-0AF01

Height: 47.5 mm

Length: 91.5 mm

RoHS-compliant: Yes

Weight: 14.8 g

Flammability rating: V0

Connector colour: Blue

: DIN rail (top hat rail) 35 mm
