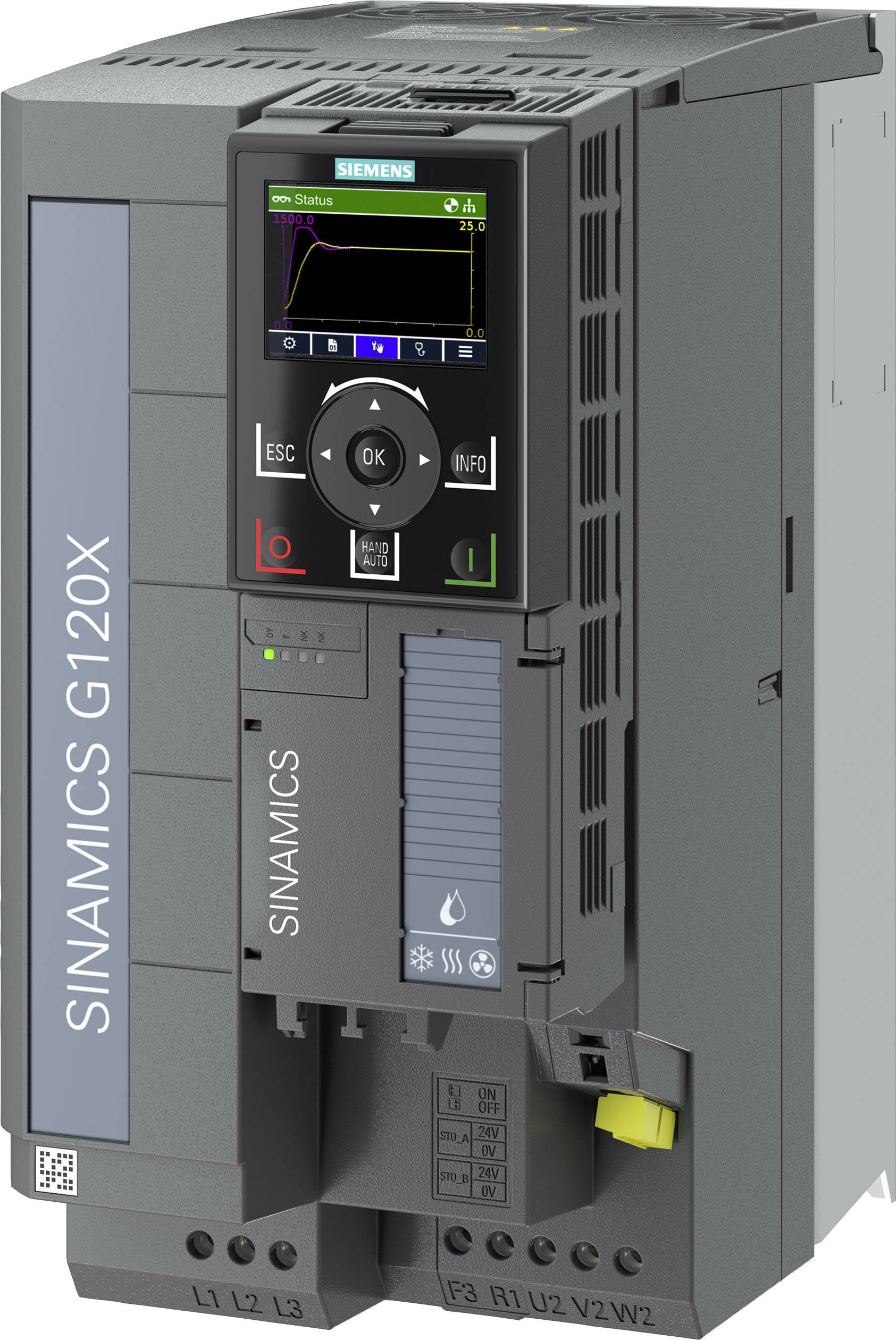

Siemens Frequency inverter 6SL3220-3YE26-0AF0 11 kW 3-phase 380 V, 480 V

SINAMICS G120X Rated power: 11kW at 110% 60s, 100% 240s RFI suppression filter for category C2 3AC380-480V+10/-20% 47-63Hz Ambient temperature -20 to +45°C Frame size: FSC Protection class IP20 / UL open Type SINAMICS G120X frequency converters control the elements for the pumps/fans, the water/waste water (W/WW) and the building technology/HVAC applications. The SINAMICS G120X is convincing due to simple selection and ordering, simple handling "out of the box" and simple integration into the application. Simple setup with the SINAMICS G120 smart access module or the IOP-2 control panel. The SINAMICS G120X runs stable under all line conditions, meets the EMC categories C2 and C1 as an option and is particularly robust due to its operating temperature from -20 °C to +60 °C. Specific industry functions such as pipe filling mode and bypass function make the converter particularly efficient. All devices of the series are consistently and uniformly aligned in all voltages and networks as well as consistently geared toward cost-optimized and resource-saving operation. Its compact design saves space in the control cabinet. The SINAMICS G120X is available in nine frame sizes in a power range from 0.75 kW to 630 kW.The SINAMICS G120X frequency converter can be easily commissioned using various options such as an external Basic Operator Panel (BOP-2), smart access module (SAM) or intelligent operator panel (IOP-2).SINAMICS - simply my drive.
