Name: Siemens Magnet Magnetic 3SE6704-3BA 3SE67043BA (L x W x H) 33 x 25 x 13 mm
Brand: Siemens
SKU: 1739806
Availability: InStock

A pair of magnetic sensors with cable connections, used for position or proximity detection in electrical systems.

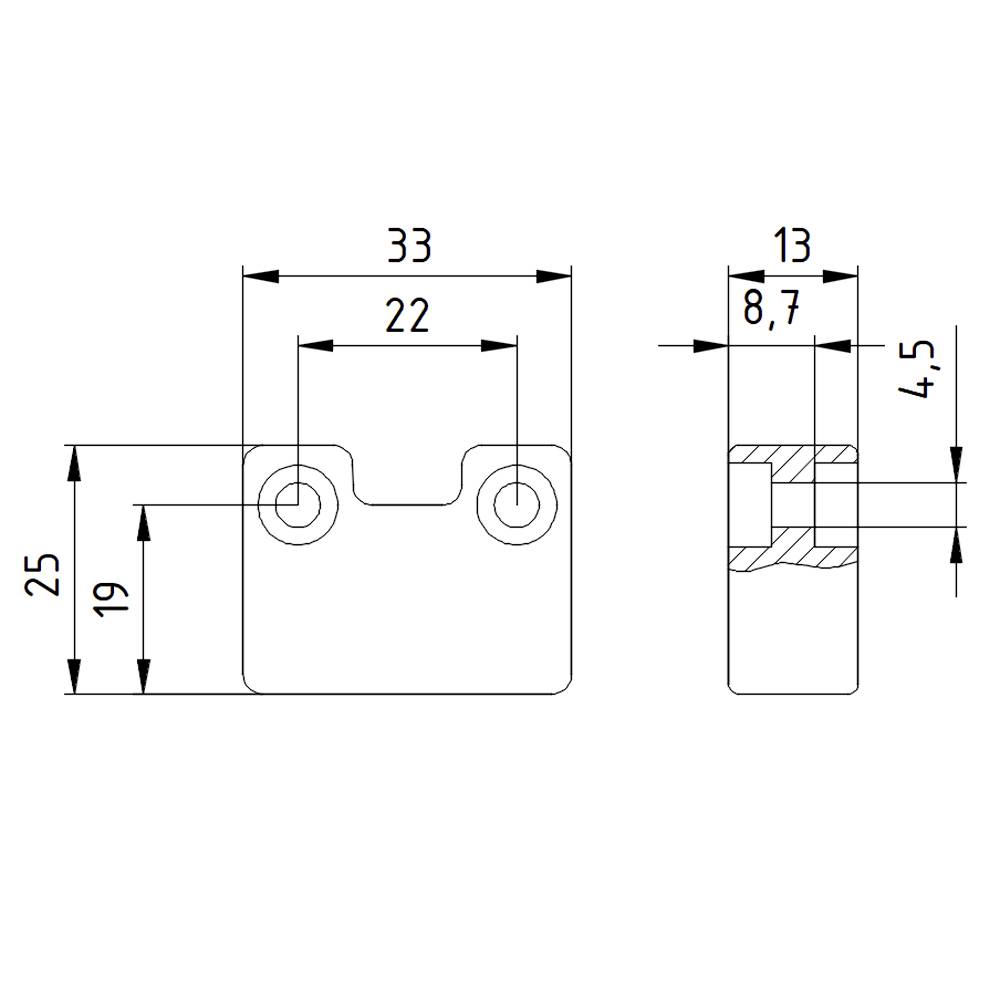

Technical drawing of a rectangular component with holes; shows dimensions in millimetres: width 33, height 25, depth 13.

1/2

Image similar

Product type

Magnet

Model

Magnetic

Connector

Plug

Length

33 mm

Height

13 mm

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 26.99 / piece)

€ 26.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening

Product type: Magnet

Type: 3SE6704-3BA

Enclosure material: Plastic

Model: Magnetic

Connector: Plug

Features: LED indicator

Min. temperature: -25 °C

Max. temperature: +70 °C

: IP67

Length: 33 mm

Width: 25 mm

Height: 13 mm

Dim: (L x W x H) 33 x 25 x 13 mm

Content: 1 pc(s)

Switching frequency: 5 Hz

: Plastic

: TRUE

: -25-70 °C

: Dry reed contact

: None

: None

: Cuboid

: Not flat

: FALSE

: IP67

: 25 mm

: 13 mm

: 33 mm

: Level e

: 3

UKCA: yes
