Siemens Magnetic switch Inductive, Magnetic 3SE6617-3CA01

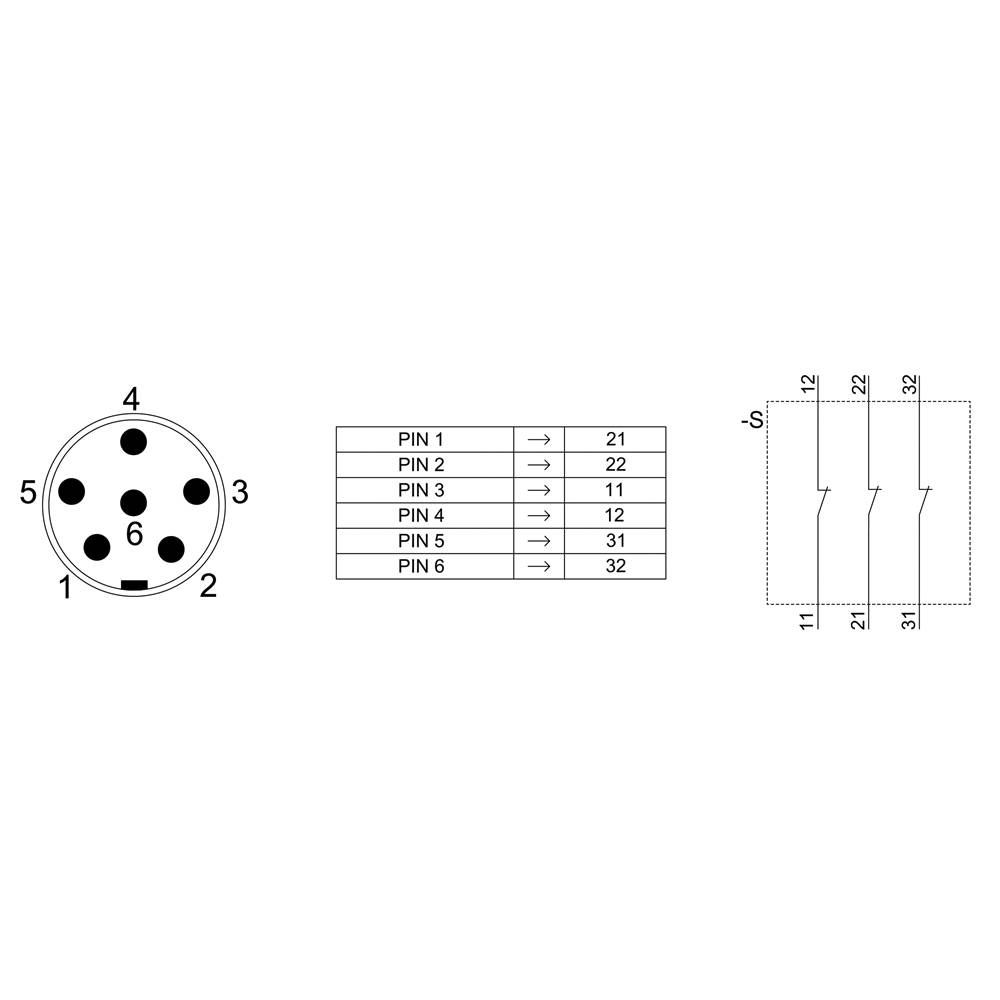

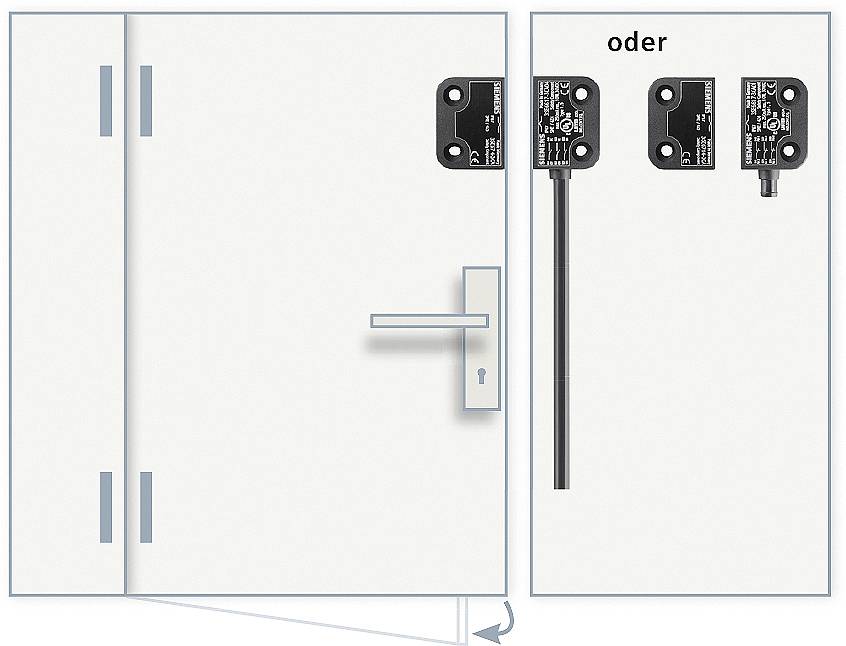

Magnetic switch element, small rectangular 26 x 36 mm, for door stop left, switching elements: Safety contacts 2Ö, signal contact 1Ö (31-32), with 8 mm snap-in connector 6-pin, without LED, the suitable switching magnet 3SE6714-3CA or um90° offset 3SE6724-3CA magnetic switch SIRIUS 3SE66 for a space-saving, tamper-proof safety guard, flap or protective door monitoring.
The non-contact coded devices are small and compact and are therefore suitable for confined spaces. They meet the highest security requirements according to PL e or SIL 3.Its wear-free switching guarantees a long service life.
They are available in different shapes and sizes. Different combinations of switching elements and cable lengths, variants with LED for quick diagnosis and connectors for fast connection are available.
Spacer pieces and various couplings with connecting cables of various lengths are available as accessories.
Safety is a SIRIUS business.
