Siemens Magnetic switch Inductive, Magnetic 3SE6627-3CA01
Product type
Magnetic switch
Model
Inductive
Magnetic
Connector
Latch connector
Type
3SE6627-3CA01
Contact type
2 breakers
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Magnetic switch element, small rectangular 26 x 36 mm, for door stop right...
Our service for you
Technical specifications
- Product type
Magnetic switch
- Type
3SE6627-3CA01
- Model
Inductive
Magnetic
- Connector
Latch connector
- Contact type
2 breakers
- Length
36 mm
- Width
26 mm
- Dim
(L x W) 36 mm x 26 mm
- RoHS-compliant
Yes
DC
Plastic
0
1
0
0
None
None
15 mm
5 mm
Quasi-flat
IP67
Magnet
26 mm
36 mm
13 mm
Level e
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2871970 Siemens Magnetic switch Inductive, Magnetic 3SE6627-3CA01
User & Safety Instructions
User & Safety Instructions 2871970 Siemens Magnetic switch Inductive, Magnetic 3SE6627-3CA01
Description

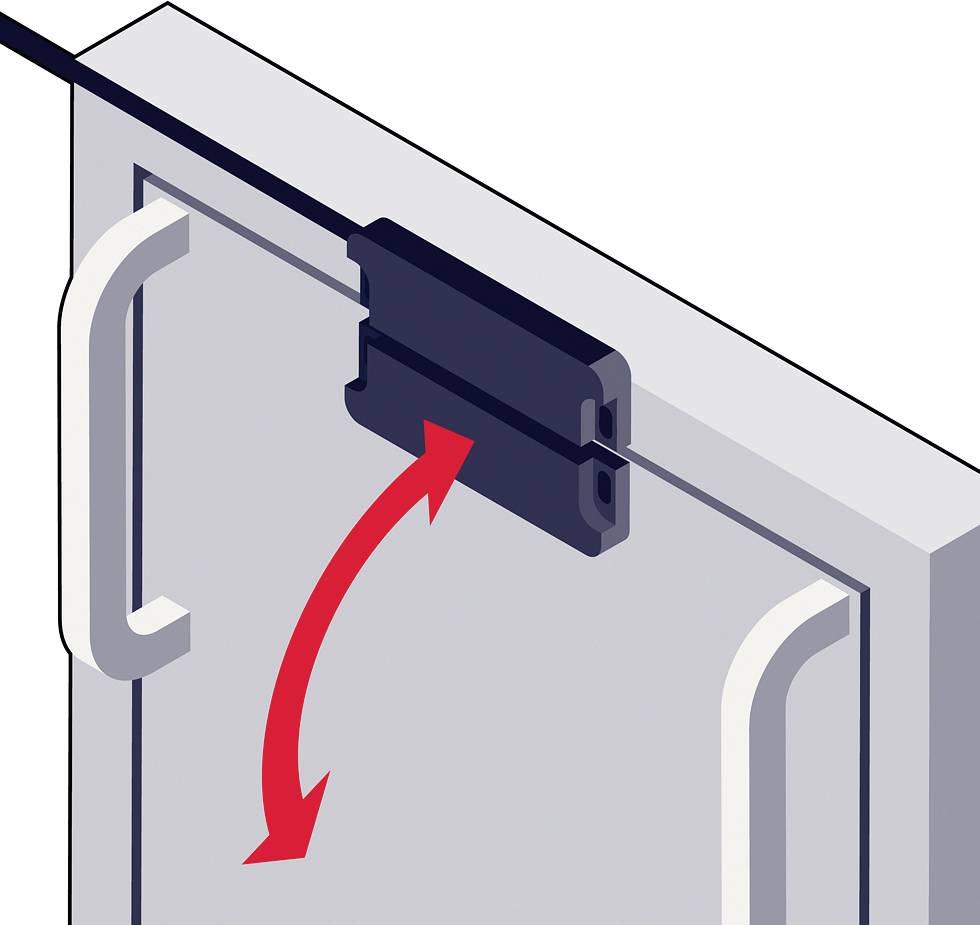

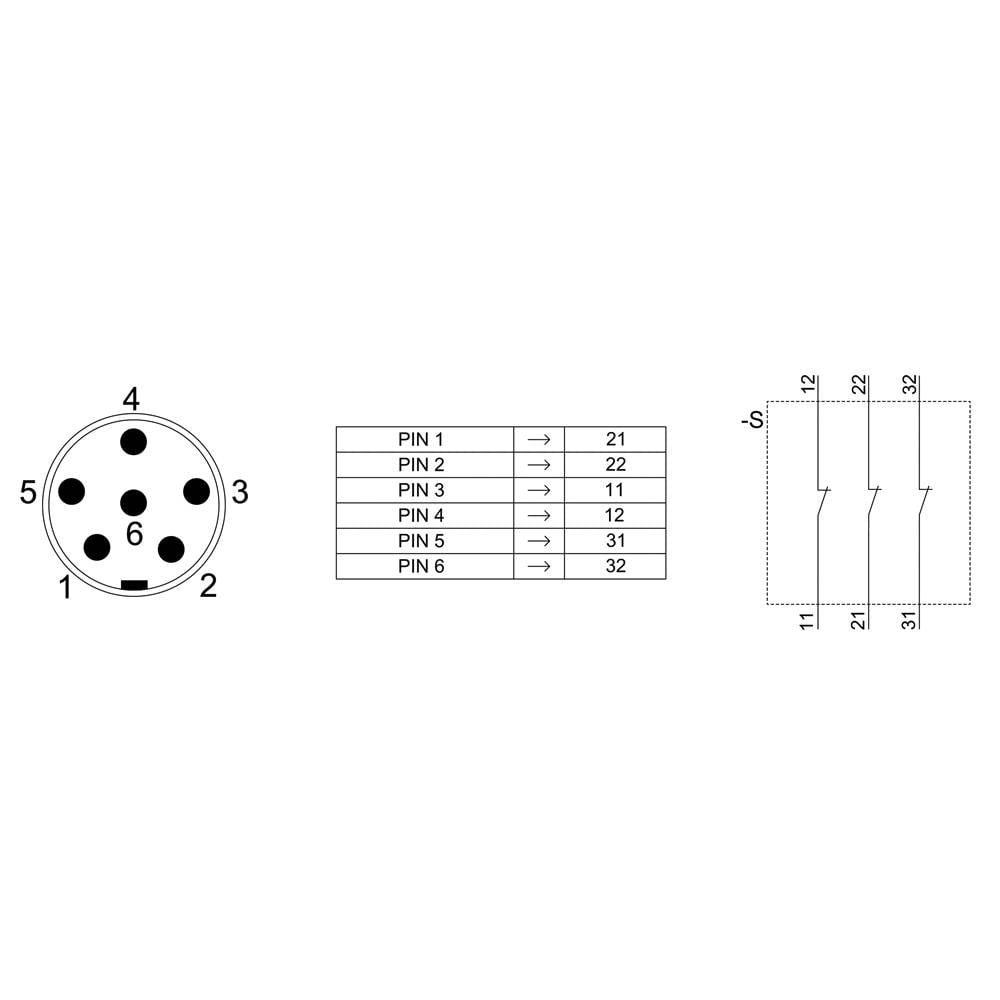

Magnetic switch element, small rectangular 26 x 36 mm, for door stop right, switching elements: Safety contacts 2Ö signaling contact 1Ö (31-32), with 8 mm latching plug 6-pin, without LED the suitable switching magnet 3SE6714-3CA or offset by 90° 3SE6724-3CA SIRIUS 3SE66 magnetic switch for a space-saving, tamper-proof safety guard, flap or protective door monitoring.
The non-contact coded devices are small and compact and are therefore suitable for confined spaces. They meet the highest security requirements according to PL e or SIL 3.Its wear-free switching guarantees a long service life.
They are available in different shapes and sizes. Different combinations of switching elements and cable lengths, variants with LED for quick diagnosis and connectors for fast connection are available.

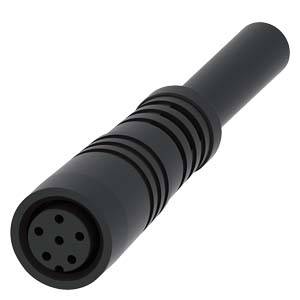

Spacer pieces and various couplings with connecting cables of various lengths are available as accessories.
Safety is a SIRIUS business.
This text is machine translated.
The non-contact coded devices are small and compact and are therefore suitable for confined spaces. They meet the highest security requirements according to PL e or SIL 3.Its wear-free switching guarantees a long service life.
They are available in different shapes and sizes. Different combinations of switching elements and cable lengths, variants with LED for quick diagnosis and connectors for fast connection are available.
Spacer pieces and various couplings with connecting cables of various lengths are available as accessories.
Safety is a SIRIUS business.
This text is machine translated.
