Name: Siemens SSC 3RF23301DA06 30 A Switching voltage (max.): 600 V AC 1 pc(s)
Brand: Siemens
SKU: 2863500

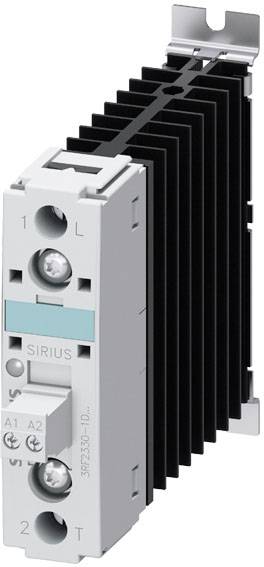

Electronic load relay with heatsink, white and black, labelled 'SIRIUS'. Used for controlling electrical loads.

An open electrical cabinet with various electrical components and cables, neatly arranged and wired.

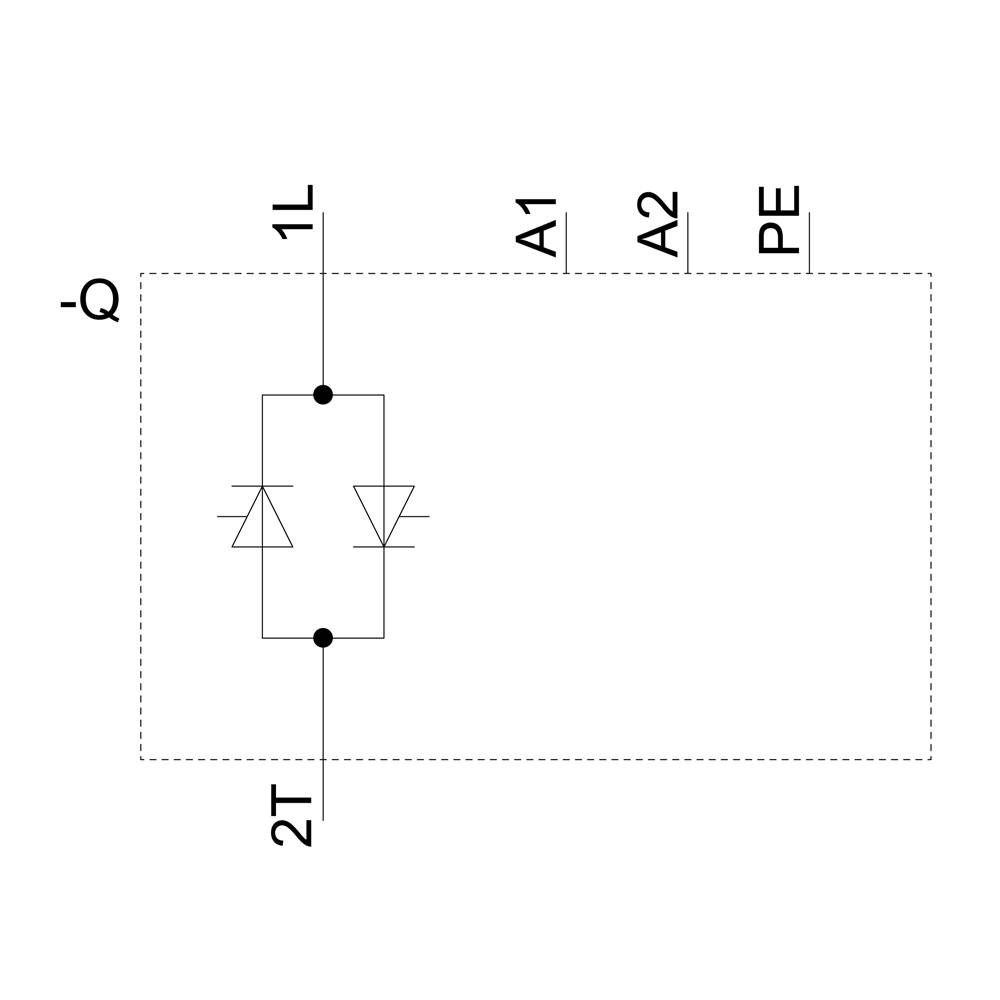

Circuit symbol of a rectifier with two diodes, drawn between terminals 1L and 2T. Terminal designations: A1, A2, PE.

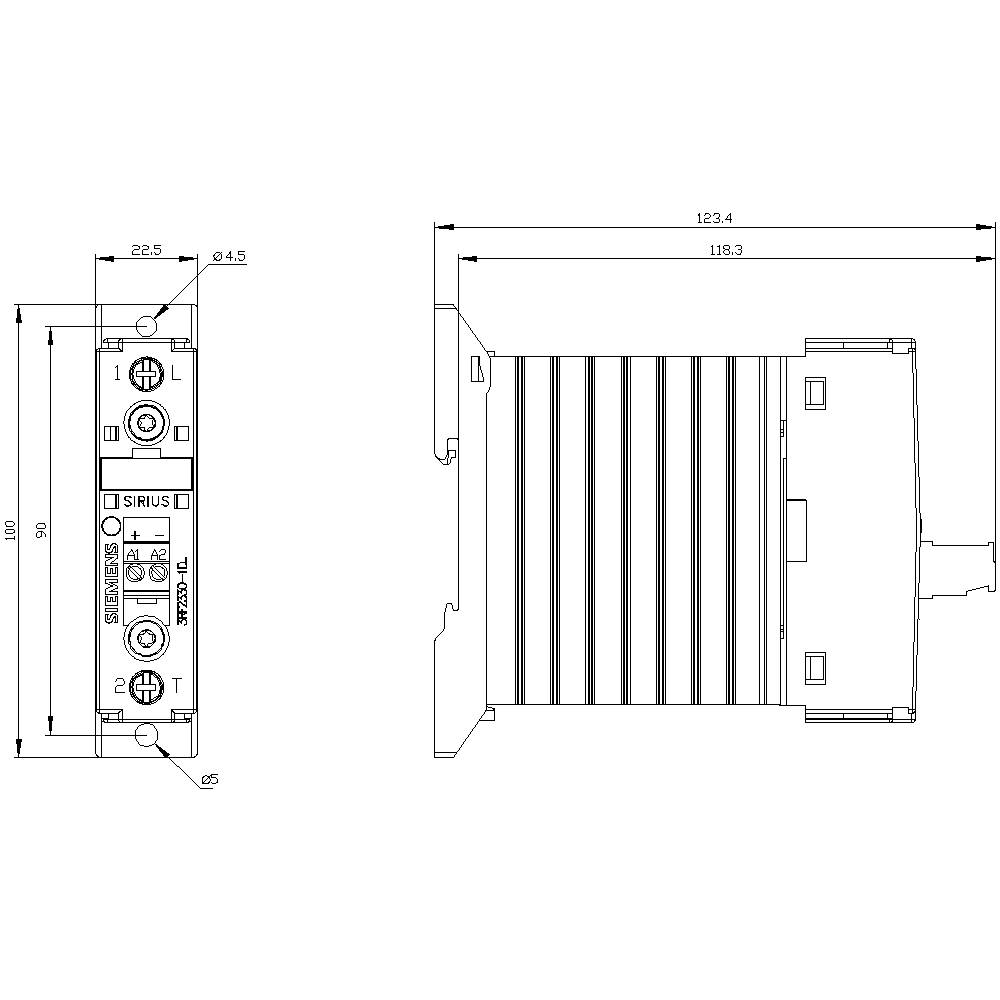

Electrical circuit diagram for a device with dimensions, side view shows height 100 mm, width 22.5 mm, depth 123.4 mm.

1/4

Image similar

Packaging type

Single

Product type

SSC

Control voltage (min.)

15 V DC

Control voltage (max.)

24 V DC

Switching voltage (max.)

600 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Screw and snap-on mounting on 35 mm rails
Operating frequency 50/60 Hz
Insulation voltage 600 V
Design of the product: 1-phase
Number of poles: 1

Packaging type: Single

Product type: SSC

Type: 3RF2330-1DA06

Connection: Screws

Control voltage (min.): 15 V DC

Control voltage (max.): 24 V DC

Control voltage range: 15 - 24 V DC

Control current (max.): 15 mA

Surge current (max.): 1150 A

Switching voltage (min.): 48 V AC

Switching voltage (max.): 600 V AC

Current load (max.): 30 A

Output voltage (min.): 48 V

Output voltage (max.): 600 V AC

Max. output current: 30 A

Contact type: 1 maker

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Width: 22.5 mm

Height: 100 mm

Depth: 123.5 mm

RoHS-compliant: Yes

Permanent current (max.): 30 A

Content: 1 pc(s)

Nominal control voltage: 24 V DC

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Contact type

Control voltage (max.)

Control voltage (min.)

Current load (max.)

Output voltage (max.)

Switching voltage (max.)

Siemens SSC 3RF23301DA06 30 A Switching voltage (max.): 600 V AC 1 pc(s)

Item no:2863500

Unavailable

Conrad Electronic

This article

1 maker

24 V DC

15 V DC

30 A

600 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens SSC 3RF23301AA04 30 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)

Item no:2865224

Fast track dispatch on Tue 3 Nov

3 Set(s)Conrad Electronic

1 maker

24 V DC

15 V DC

30 A

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

Siemens SSC 20 A Switching voltage (max.): 460 V AC Instant response 1 pc(s)

Item no:2261688

Unavailable

Conrad Electronic

1 maker

24 V DC

15 V DC

20 A

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens SSC 20 A Switching voltage (max.): 460 V AC Instant response 1 pc(s)

Item no:2261689

Unavailable

Conrad Electronic

1 maker

230 V AC

110 V AC

20 A

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens SSC 30 A Switching voltage (max.): 460 V AC Instant response 1 pc(s)

Item no:2261692

Unavailable

Conrad Electronic

1 maker

24 V DC

15 V DC

30 A

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens SSC 3RF23101AA22 10.5 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

Item no:2261685

Unavailable

Conrad Electronic

1 maker

230 V AC

110 V AC

10.5 A

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens SSC 3RF23101AA22 10.5 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

Item no:2865223

Unavailable

Conrad Electronic

1 maker

230 V AC

110 V AC

10.5 A

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens SSC 3RF23201AA26 20 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Item no:2261687

Unavailable

Conrad Electronic

1 maker

230 V AC

110 V AC

20 A

600 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens SSC 3RF23201AA26 20 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Item no:2863499

Unavailable

Conrad Electronic

1 maker

230 V AC

110 V AC

20 A

600 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens SSC 3RF23301AA04 30 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)

Item no:2261690

Unavailable

Conrad Electronic

1 maker

24 V DC

15 V DC

30 A

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2863500 Siemens SSC 3RF23301DA06 30 A Switching voltage (max.): 600 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2863500 Siemens SSC 3RF23301DA06 30 A Switching voltage (max.): 600 V AC 1 pc(s)

Description

Solid state contactor 1-phase 3RF2 AC 51 / 30 A / 40 °C 48-600 V / DC 24 V short circuit proof up to 25 A with B-breaker reverse voltage 1600 V SIRIUS 3RF23 solid state contactor for switching resistive/inductive loads, e.g. of radiators or valves in a filling system.
The devices switching without wear and silent and are therefore Ideal for noise sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. Since the heatsink is already integrated, it can be used directly in the cabinet. The compact design saves space on the DIN rail. In addition, the semiconductor contactors can be expanded by simply clicking through the standardized 3RF29 function modules for a wide range of applications. The devices are worldwide approved (e.g. IEC and UL/CSA).
The semiconductor contactors are available as 1-phase or 3-phase devices. They are available for various power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring-type cable terminals.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
