Siemens Load monitor 24 V 1 maker 1 pc(s) 3RF2950-0KA16 Load

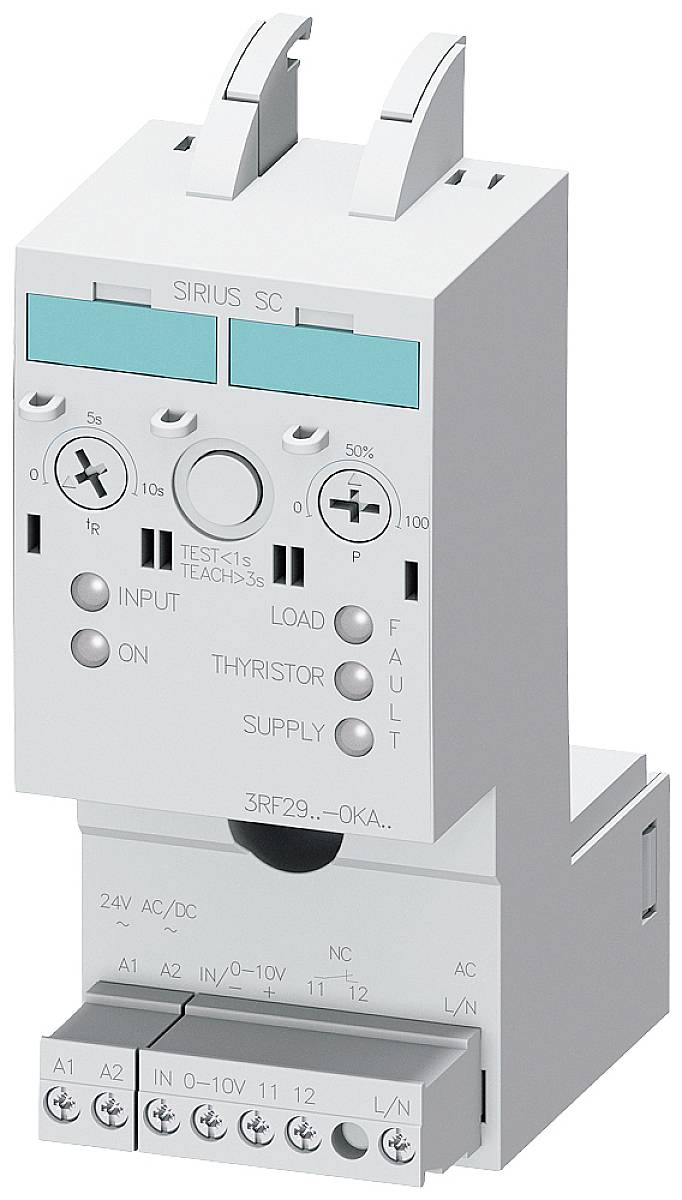

An electrical switchboard component with lever switches and connections, suitable for control and regulation applications.
An open electrical control cabinet reveals numerous cables, fuses, and electrical components used for controlling industrial machinery.

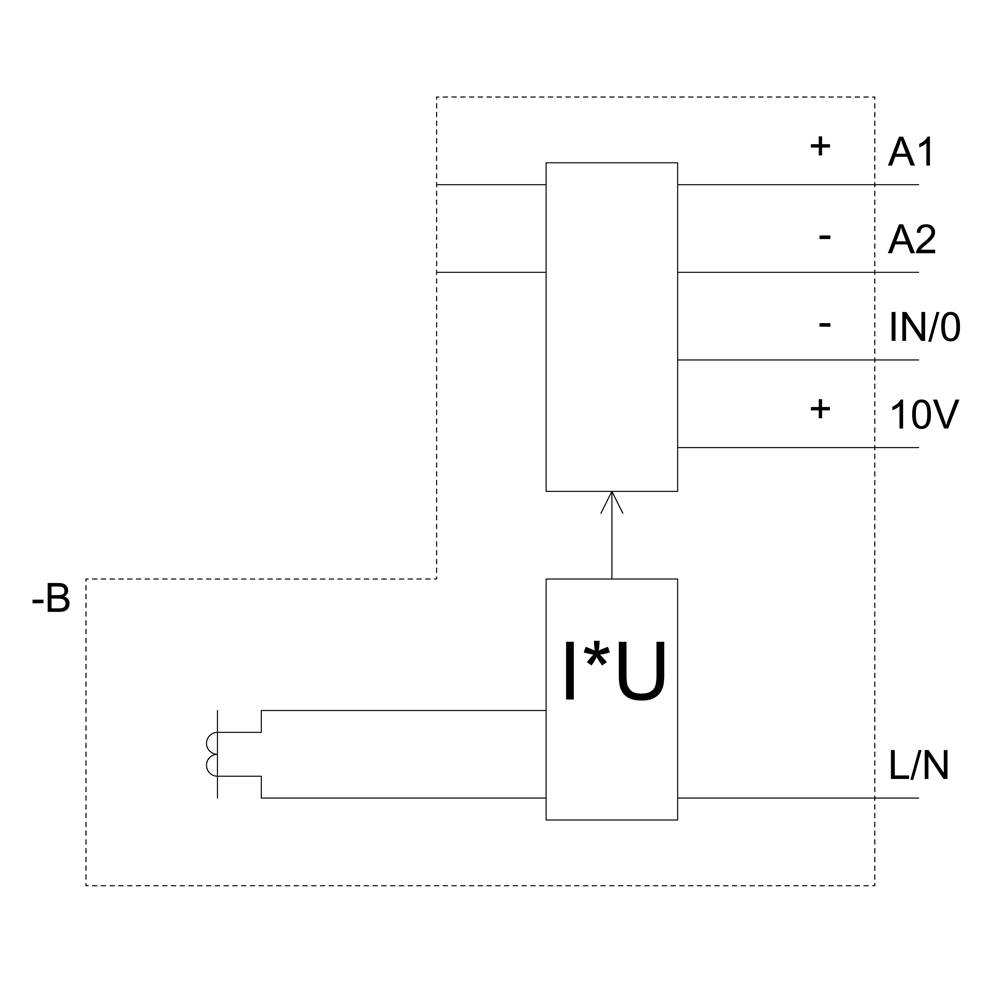

'Circuit diagram of an electrical circuit with components: Box A1, A2, IN/0, 10V and I*U, connected with L/N and -B terminals.'

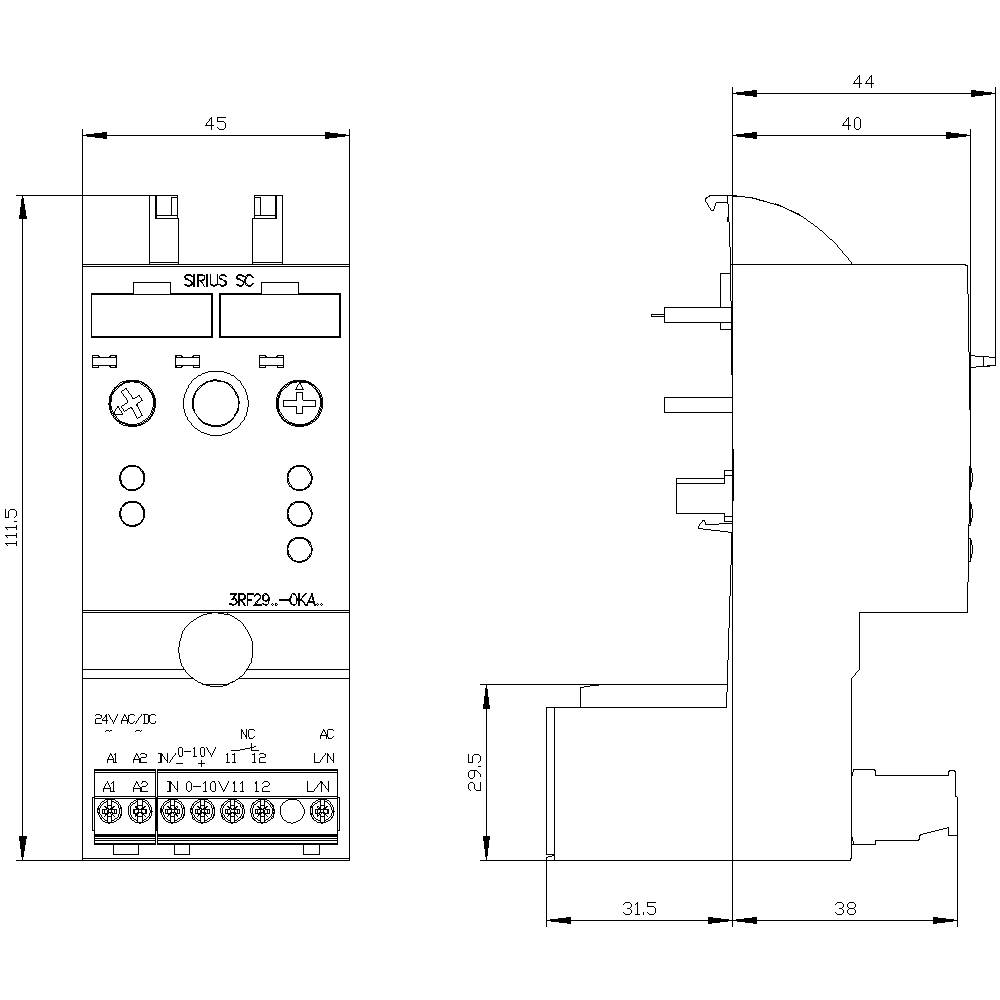

Figure of a SIRIUS SC Relay with dimensional details. Front view shows connections and buttons, side view shows height and depth.
1/4
Image similar
Product type
Load monitor
Functions
Load
Contact type
1 maker
Type
3RF2950-0KA16
Operating voltage
24 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 14 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 375.00 / piece)
€ 375.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Auxiliary contact type: 1 NO contact:1 NC contact
  • Mounting type: Pluggable
Product type

Load monitor

Type

3RF2950-0KA16

Functions

Load

Operating voltage

24 V

Features

pluggable

Contact type

1 maker

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

45 mm

Height

111.5 mm

Depth

69.5 mm

Dim

(W x H x D) 45 x 111.5 x 69.5 mm

Content

1 pc(s)

RoHS-compliant

Yes

Mounting type

Push-fit

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1703663 Siemens Load monitor 24 V 1 maker 1 pc(s) 3RF2950-0KA16 Load

User & Safety Instructions

User & Safety Instructions 1703663 Siemens Load monitor 24 V 1 maker 1 pc(s) 3RF2950-0KA16 Load

Description

Solid-state contactor 1-phase 3RF2 AC 15 / 12 A / 40 °C 48-460 V / 4-30 V DC Instantaneous switching
