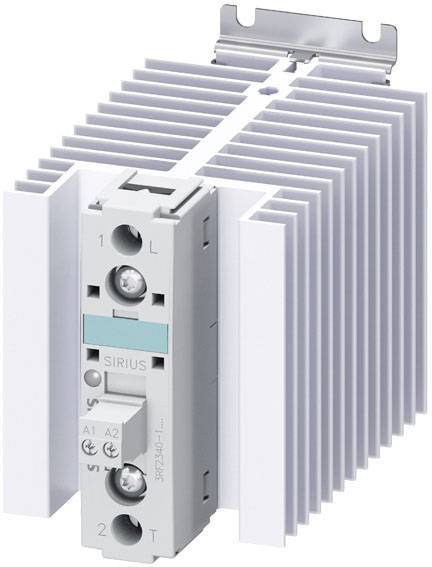

Siemens SSC 3RF23401BA04 40 A Switching voltage (max.): 460 V AC Instant response 1 pc(s)
Packaging type
Piece
Product type
SSC
Control voltage (min.)
15 V DC
Control voltage (max.)
24 V DC
Switching voltage (max.)
460 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
SSC
- Type
3RF2340-1BA04
- Switching type
Instant response
- Connection
Screws
- Control voltage (min.)
15 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
15 - 24 V DC
- Control current (max.)
15 mA
- Surge current (max.)
1200 A
- Switching voltage (min.)
48 V AC
- Switching voltage (max.)
460 V AC
- Current load (max.)
40 A
- Output voltage (min.)
48 V
- Output voltage (max.)
460 V AC
- Max. output current
40 A
- Contact type
1 maker
- Min. temperature
-25 °C
- Max. temperature
+60 °C
IP20

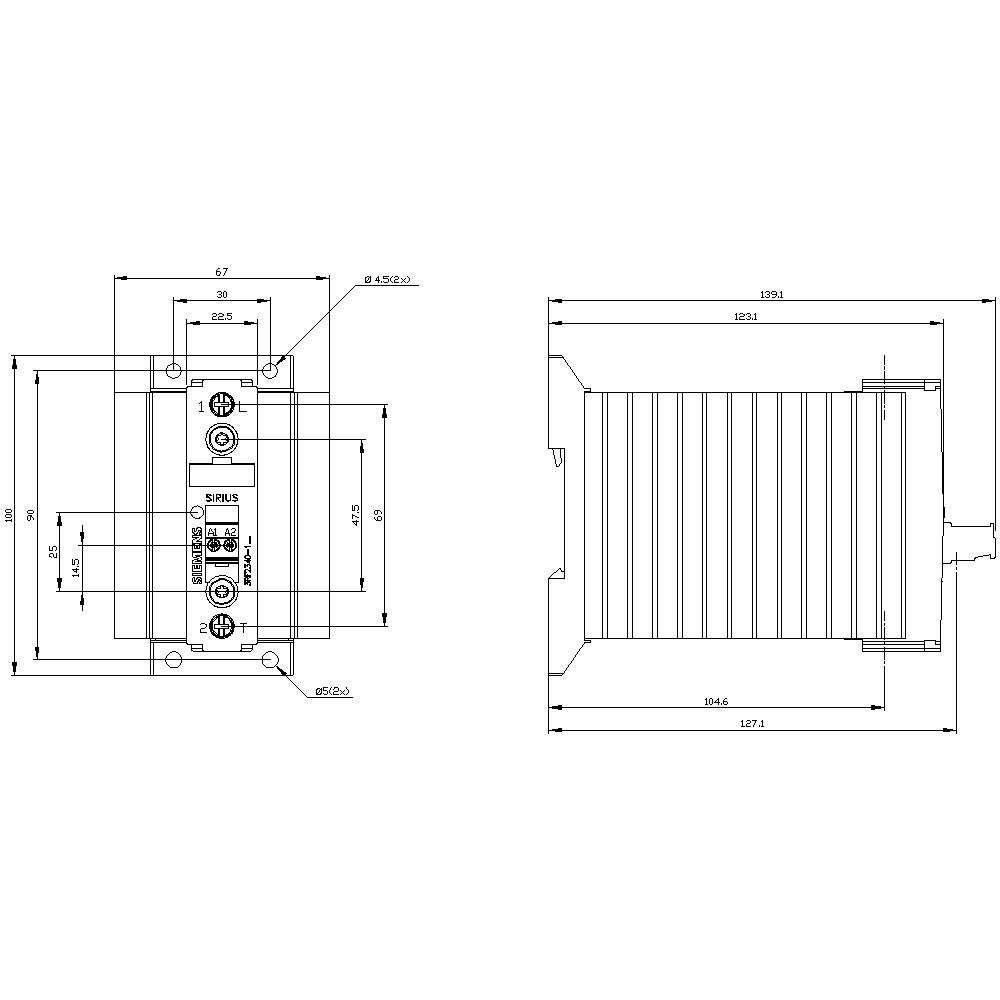

- Width
67.5 mm
- Height
100 mm
- Depth
142 mm
- RoHS-compliant
Yes
- Permanent current (max.)
40 A
- Content
1 pc(s)
- Nominal control voltage
24 V DC
- UKCA
yes
