Name: Signal Construct SMQD06414 LED indicator light Blue 24 V DC 250 mcd
Brand: Signal Construct
SKU: 149535
Availability: InStock

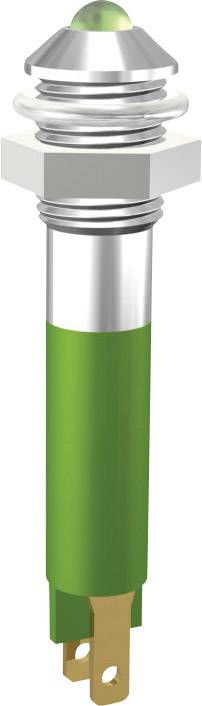

A green LED light in a metallic mount, viewed from the side, with visible connection point at the bottom.

Image similar

Product type

LED indicator light

Operating voltage

24 V DC

Operating current

12 mA

Recess diameter

6 mm

Light intensity I(V)

250 mcd

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

81 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.79 / piece)

€ 4.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Signal Construct SMQD06414 LED indicator light Blue 24 V DC 250 mcd

Our service for you

Technical specifications

Product type: LED indicator light

Type: SMQD06414

Factory colour: Blue

Operating voltage: 24 V DC

Operating current: 12 mA

Recess diameter: 6 mm

Head Ø: 7 mm

Case colour: Blue

Material: Brass

Material properties: chrome plated

Mounting type: Screw

Light intensity I(V): 250 mcd

LED features: External reflector

Connection: Type C CEE 7/16 plug 2.5 mm

Length: 35 mm

: 60000 h

Min. temperature: -35 °C

Max. temperature: 75 °C

RoHS-compliant: Yes

Type: External reflector

Content: 1 pc(s)

Temperature range: -35 - +75 °C

Operating voltage: 24 V DC

Documents & Downloads

Datasheet

Datasheet 149535 Signal Construct SMQD06414 LED indicator light Blue 24 V DC 250 mcd

Conformity certificate

Conformity certificate 149535 Signal Construct SMQD06414 LED indicator light Blue 24 V DC 250 mcd

Description

LED indicator for direct operation on the given nominal voltage. The series resistor required with standard LEDs is already inbuilt into the housing so the usual wiring is not needed. And the chrome plated brass housing, the broad working temperature range and the long life make it incredibly versatile. Connection is via the Faston connectors or by soldering.
