Name: Signal Construct SWUU08124A LED indicator light Yellow 24 V DC/AC Tray
Brand: Signal Construct
SKU: 2435592
Availability: InStock

A red push-button switch with a black casing and two gold terminals, suitable for electronic devices.

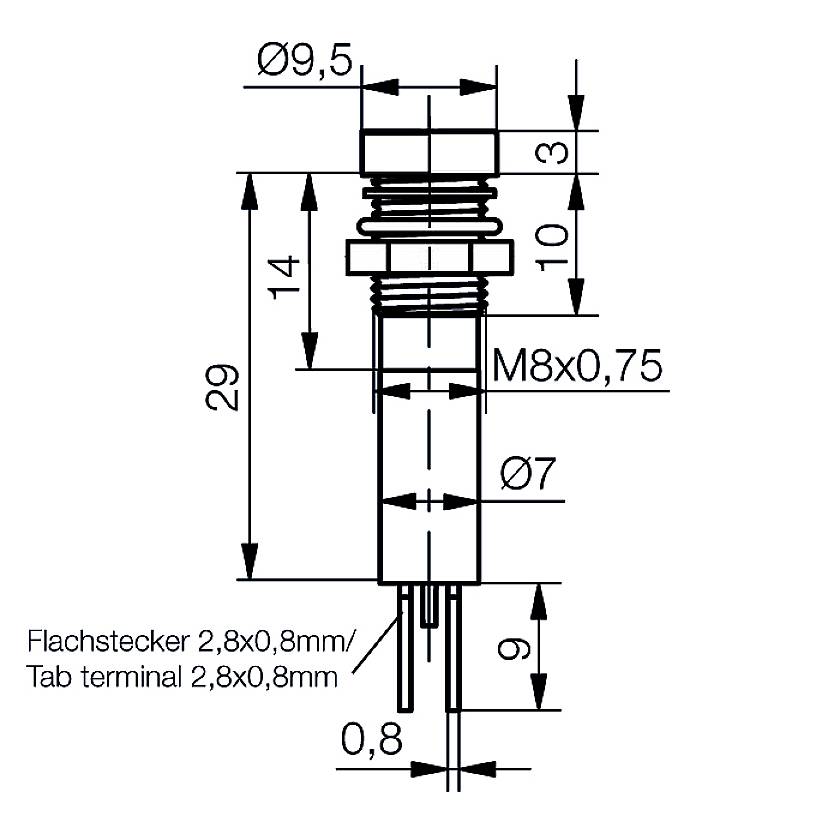

Technical drawing of an electrical connector with dimensional specifications in British English. Includes details on diameter, thread size, and lengths.

1/2

Packaging type

Tray

Product type

LED indicator light

Operating voltage

24 V DC/AC

Operating current

16 mA

Recess diameter

8 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

53 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.99 / piece)

€ 5.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Tray

Product type: LED indicator light

Factory colour: Yellow

Operating voltage: 24 V DC/AC

Operating voltage: 24 - 28 V DC/AC

Min. operating voltage: 24 V DC/AC

Max. operating voltage: 28 V DC/AC

Operating current: 16 mA

Recess diameter: 8 mm

Head Ø: 9.5 mm

Case colour: Chrome black

Material: Brass

Material properties: chrome plated

Mounting type: Screw

: IP67 (front)

LED features: Built-in reflector

Connection: Type C CEE 7/16 plug 2.8 mm

Min. temperature: -30 °C

Max. temperature: 70 °C

Content: 1 pc(s)

Moisture Sensitiviy Level (MSL): 1

Variants(All information include VAT, plus shipping costs)

Connection

Factory colour

Signal Construct KDS2L050 LED indicator light White, Black Bulk

Item no:2435437

Fast track dispatch on Thu 29 Oct

96 Piece(s)Conrad Electronic

Solder lug

White

Piece(s)

Minimum order quantity: 2

Multiple: 1

€ 1.79^*

Signal Construct KDS2L100 LED indicator light White, Black Bulk

Item no:2435438

Fast track dispatch on Thu 29 Oct

77 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 1.5 mm

White

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

Signal Construct LP18412 LED indicator light Blue 12 V DC Bulk

Item no:2435447

Fast track dispatch on Thu 29 Oct

13 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 2.8 mm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

Signal Construct SKGD05001 LED indicator light Red 7 V DC Tray

Item no:2435534

Fast track dispatch on Thu 29 Oct

19 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 1.5 mm

Red

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.49^*

Signal Construct SKGD05101 LED indicator light Yellow 7 V DC Tray

Item no:2435535

Fast track dispatch on Thu 29 Oct

24 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 1.5 mm

Yellow

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.49^*

Signal Construct SKGD05201 LED indicator light Yellow 7 V DC Tray

Item no:2435536

Fast track dispatch on Thu 29 Oct

47 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 1.5 mm

Yellow

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.49^*

Signal Construct SKGH10722A LED indicator light Green 12 V DC/AC Tray

Item no:2435538

Fast track dispatch on Thu 29 Oct

55 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 2.8 mm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.79^*

Signal Construct SKGH10724A LED indicator light Green 24 V DC/AC Tray

Item no:2435539

Fast track dispatch on Thu 29 Oct

347 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 2.8 mm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.79^*

Signal Construct SKGU10728A LED indicator light Green 230 V AC, 130 V DC Tray

Item no:2435540

Fast track dispatch on Thu 29 Oct

97 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 2.8 mm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Signal Construct SKHH10722A LED indicator light Green 12 V DC/AC Tray

Item no:2435543

Fast track dispatch on Thu 29 Oct

54 Piece(s)Conrad Electronic

Type C CEE 7/16 plug 2.8 mm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.99^*

Documents & Downloads

Datasheet

Datasheet 2435592 Signal Construct SWUU08124A LED indicator light Yellow 24 V DC/AC Tray

User & Safety Instructions

User & Safety Instructions 2435592 Signal Construct SWUU08124A LED indicator light Yellow 24 V DC/AC Tray

Description

LED indicator light with internal reflector.
Front-side protected according to IP67 im
Built-in condition. Housing: Metal housing black chrome plated
With thread M8x0.75mm
Mounting type: Screw fixing
Tightening torque: 40 CN·m
Installation opening: Ø8+0.2 mm
Protection class according to DIN EN 60529: IP67 (front side)
Connection: 2x flat plug 2.8x0.8 mm
Soldering temperature 250°/3 sec.
OPERATING VOLTAGE 12/14V, 24/28V DC(AC)
The current consumption/brightness for alternating
voltage is about 50% compared to DC operation
reduced.

Scope of delivery: Lamp with lower ring,
Sealing washer and fixing nut.

This text is machine translated.
