Connectors & CablesConnectorsPCB ConnectorsAccessories Pin headers, Receptacles

Socket contact 770249-3 770249-3 TE Connectivity Content: 1 pc(s)

Metallic connector in close-up, showing design details with cylindrical end and splayed U-shaped contact area.

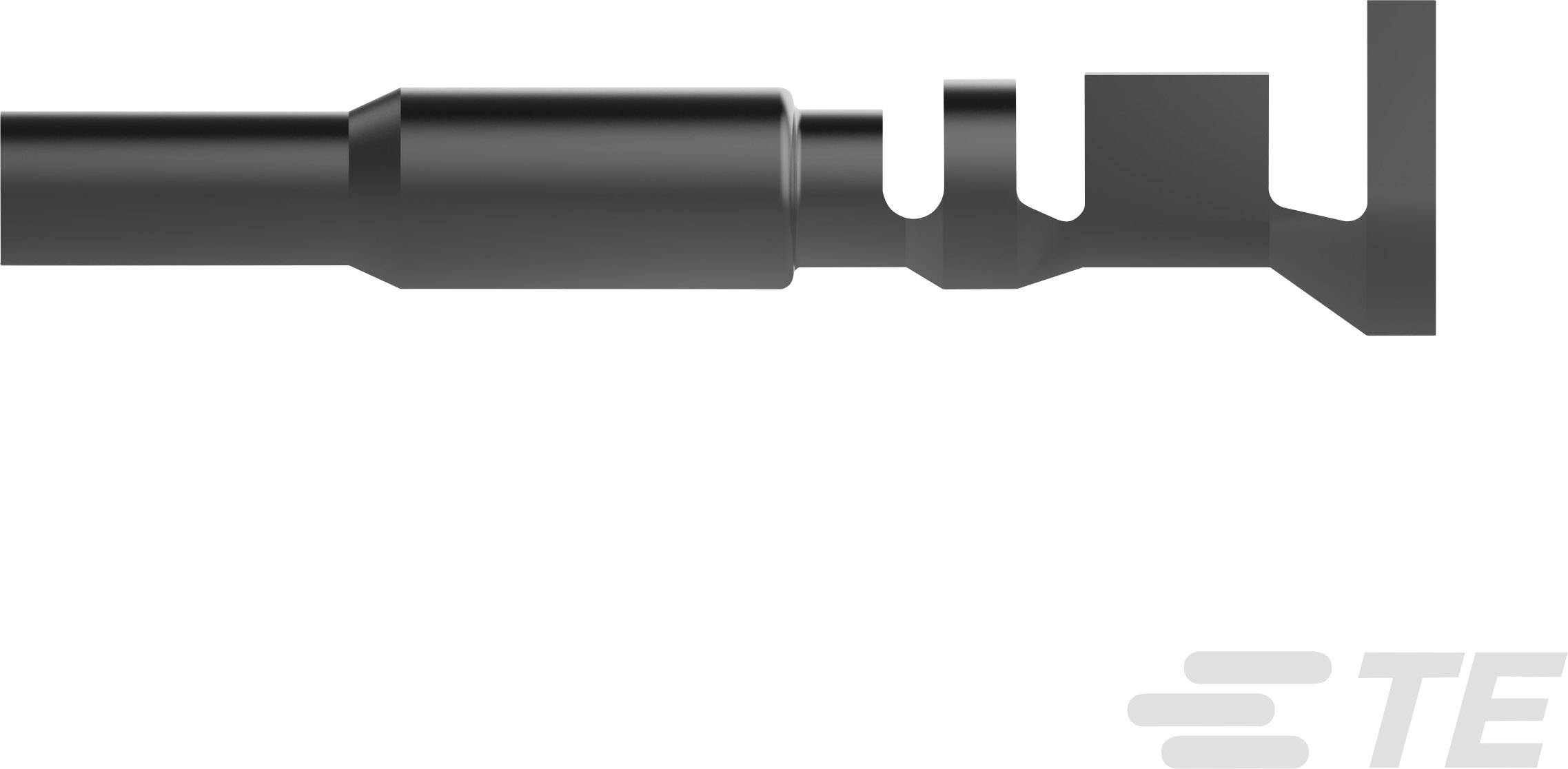

Black, metallic electrical terminal with rectangular and circular sections, suitable for plug connection systems.

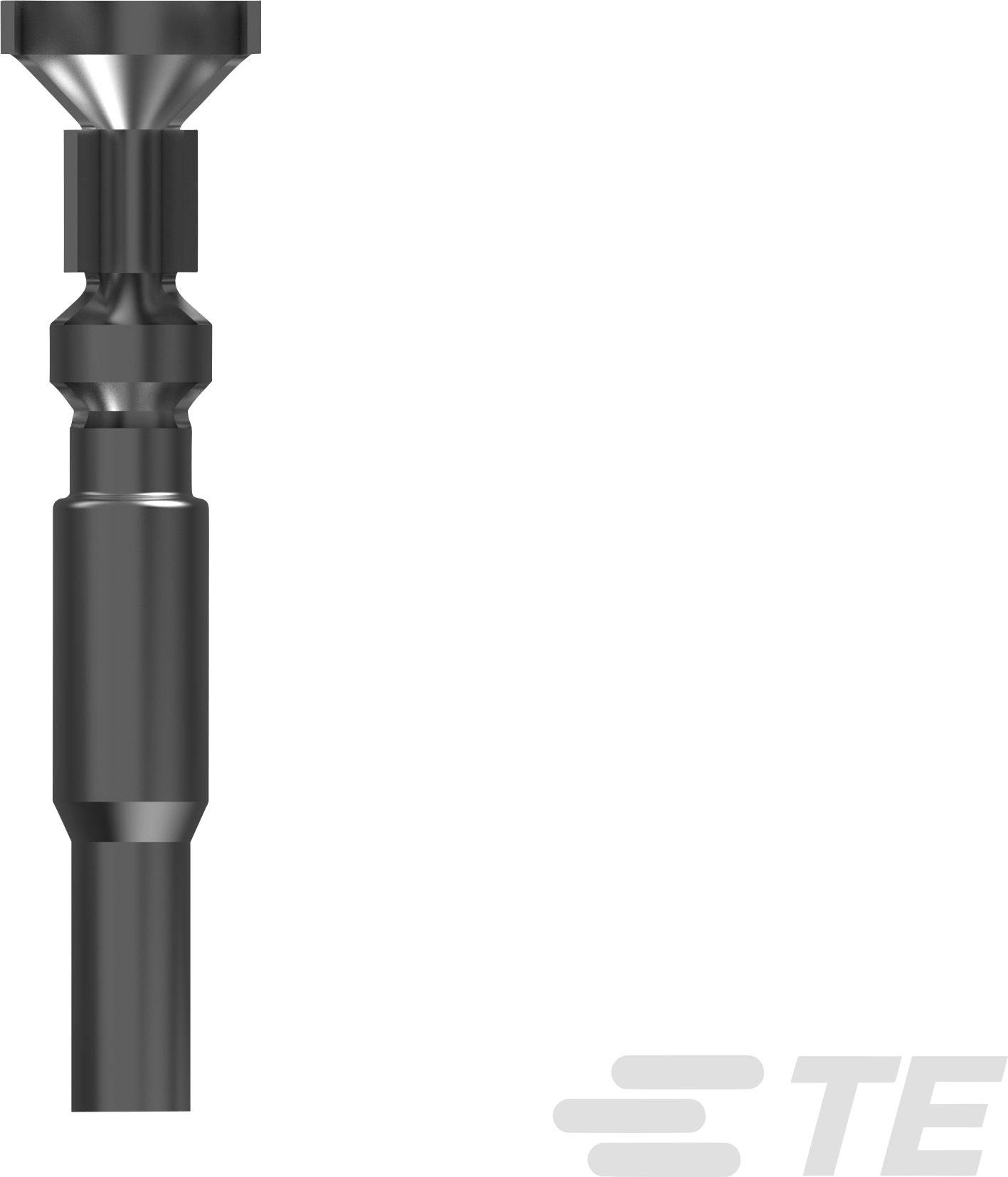

Electrical plug of a pin header with a black housing, viewed from the side. 'TE' logo in the bottom right corner.

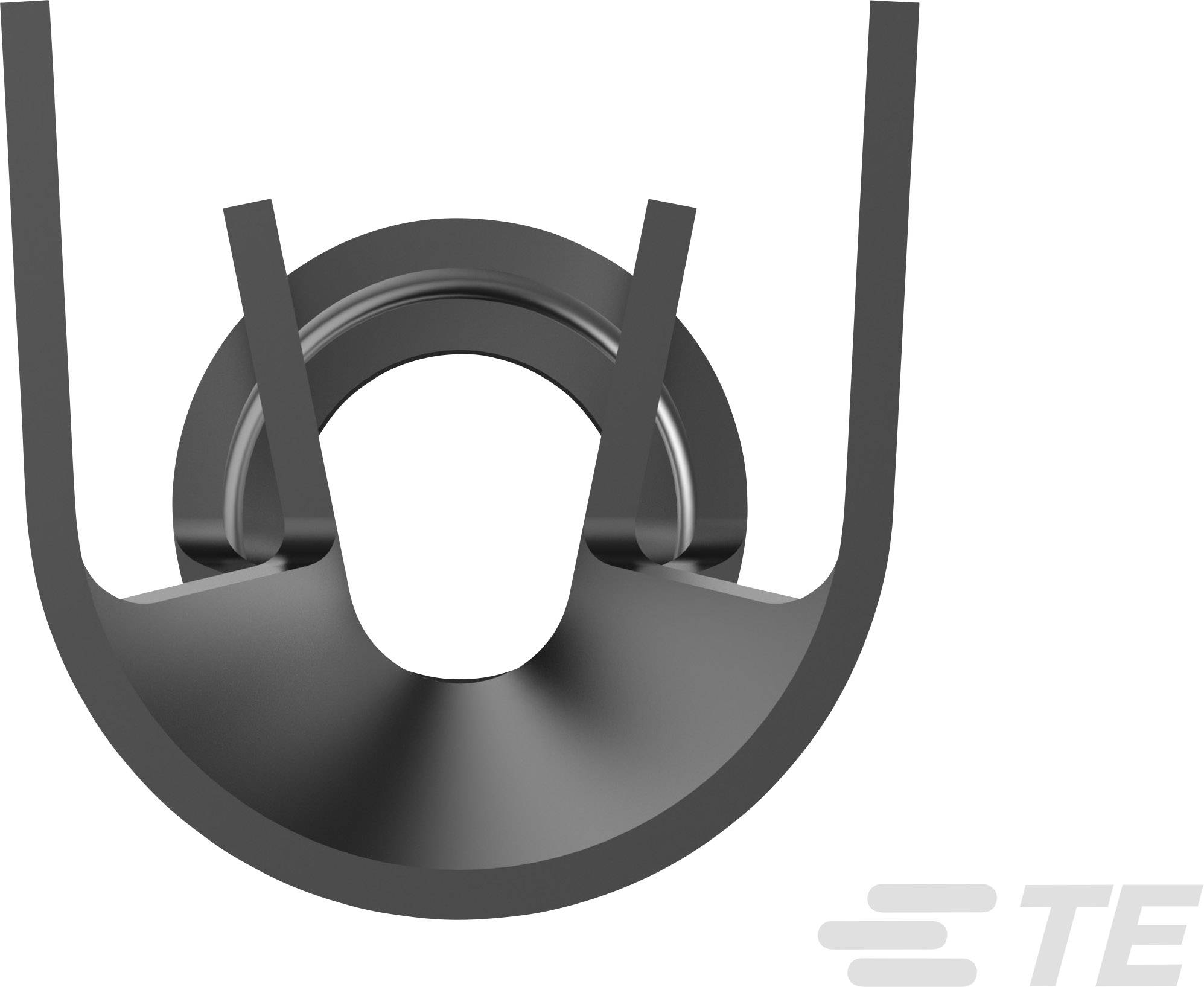

Cross-section of a clip-like holder with two lateral supports; suitable for securing round objects.

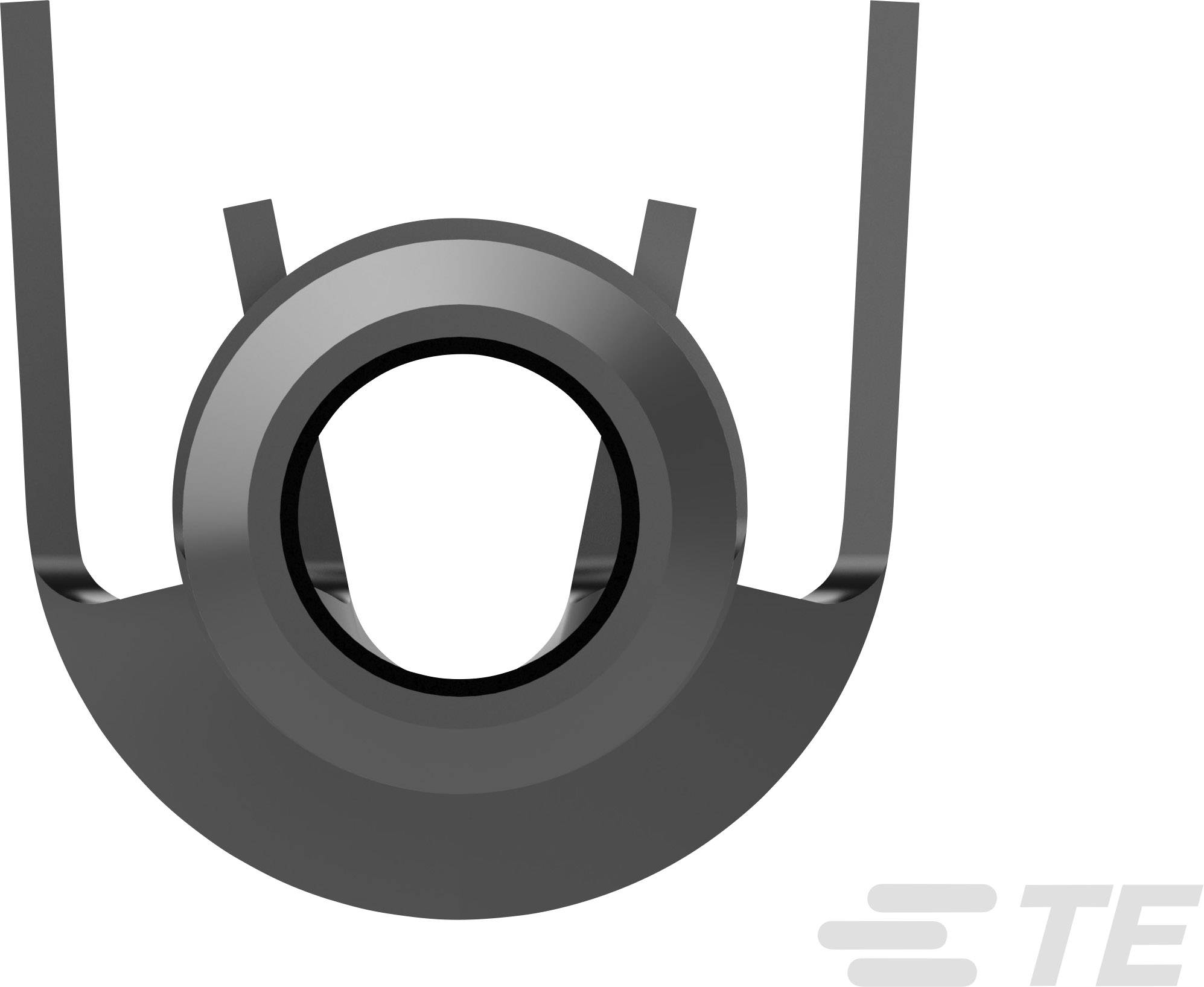

A round, black metal bracket with two raised side wings and a central opening. 'TE' brand logo in the corner.
1/5
Product type
Crimp contact
AWG
20 - 14
Connection
Crimp
Manufacturer part #
770249-3
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 2 Nov
140 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10000
Multiple: 10000
Total (€ 0.60 / piece)
€ 6,000.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Socket contact 770249-3

Our service for you

Technical specifications

  • Wire insulation range: 3.30 - 5.08 mm
Product type

Crimp contact

20 - 14

Connection

Crimp

Manufacturer part #

770249-3

Content

1 pc(s)

Contact surface

Tin plated (phosphor bronze)

Nominal voltage

600 V AC

Nominal current

7 A

Series

MATE-N-LOK

Max. temperature

+120 °C

Min. temperature

-55 °C

Type

770249-3

Socket Ø

2.18 mm

Connector type

Socket

Cross section

0.50 - 2 mm²

Documents & Downloads

Datasheet

Datasheet 1663323 Socket contact 770249-3 770249-3 TE Connectivity Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1663323 Socket contact 770249-3 770249-3 TE Connectivity Content: 1 pc(s)
