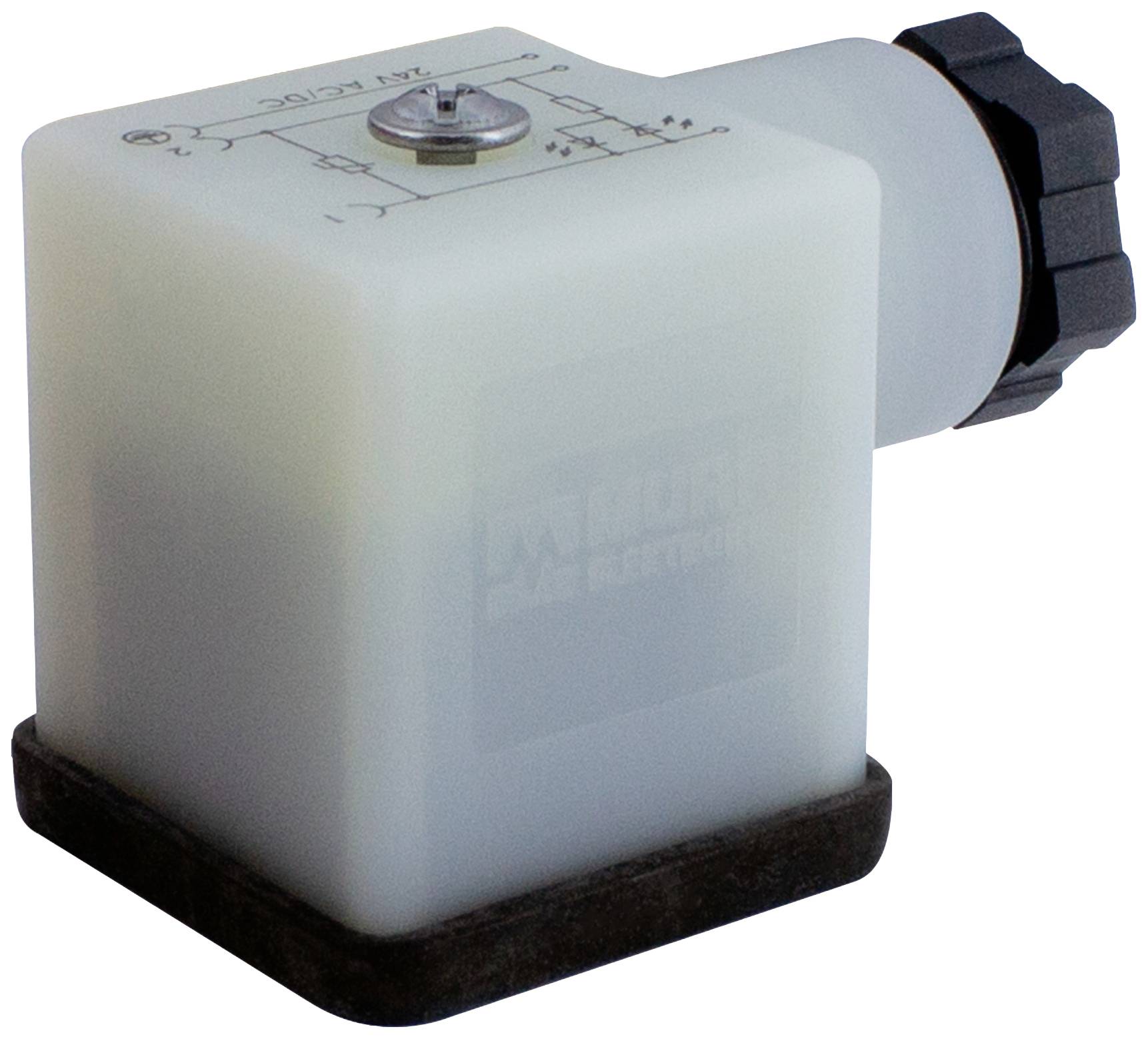

Solenoid Connectors Opaque 7000-29006-0000000 Murrelektronik Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Square connector
Type
A standard
Connection
Screw terminal
IP rating
IP65
Number of pins
3
Datasheet (PDF)
100 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 9.99 / piece)
€ 9.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Connection cross-section: 0.5 mm² - 1.5 mm²
- Tightening torque (cable gland): 1.8 ±0.2 Nm
- Tightening torque (clamping screws): 0.2 ±0.1 Nm
- Fastening method: Plugged, screwed
- Assignment: 2 contacts + PE
- Operating current per contact: Max. 1.5 A
- Housing: PA6 GF20
- Clamping range 4 mm - 6 mm
- Material (gasket): NBR
- Product type
Square connector
- Type
A standard
- Connection
Screw terminal
IP65
- Number of pins
3
- Nominal voltage
24 V DC/AC
- Display
LED
- Total no. of pins
3
- Weight
28 g
- Manufacturer part #
7000-29006-0000000
- Factory colour
Opaque
- Content
1 pc(s)
- Cable cross section
0.5 - 1.5 mm²
- RoHS-compliant
Yes
- Circuit layout description
incl. yellow LED
- Max. temperature
+90 °C
- Min. temperature
-40 °C
- Type
7000-29006-0000000
- Features
Oil-resistant
- Fastening type
M16
- Screw connection
M16×1.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2311102 Solenoid Connectors Opaque 7000-29006-0000000 Murrelektronik Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2311102 Solenoid Connectors Opaque 7000-29006-0000000 Murrelektronik Content: 1 pc(s)
