Sonel MIC-10k1 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,688.24 / piece)
€
Highlights & Details
Insulation measuring instrument MIC-10K1
- 50...10000 V test voltage for measurement range up to 40 tω
- Testing voltage adjustable in 10 V steps (50...1000V) and 25 V steps (1...10 kV).
- The device under test is discharged automatically after the measurement
- Time interval measurements with acoustic 5 sec. signalling
- 3 test times for the determination of the absorption coefficient
- Determination of the polarisation index (PI) and the dielectric absorption ratio (DAR)
- Test method (SV)
- Index d. dielectric discharge (DD)
- Fault location by burning method
- Echzeitanzeige the act. Test voltage
- Adjustable test current (1,2mA, 3 mA, 5 mA)
- 2- and 3-wire measurement
- Threshold settings for measuring insulation and continuity measurement (≥ 200 mA)
- Leakage current measurement
- Test lead up to 20 m available
- Safety device against live parts
- Testing of multi-core cables with AutoISO-5000 Adapter
- Digital filter function in test environment with large disturbances
- AC/DC measurement 0...750 V
- Display of graphs while d. Measurement
- Adapter
- Capacitance testing
- Temperature reading
- Bluetooth
- 5.6" LCD display
- Built-in Schenllladegerat
Technical specifications
- The insulation resistance range 0...999 kΩ: Resolution: 1 kΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 1.00...9.99 MΩ: Resolution: 0.01 MΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 10.0. 99.9 MΩ: Resolution: 0.1 MΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 100...999 MΩ: Resolution: 1 MΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 1.00...9.99 GΩ: Resolution: 0.01 GΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 10.0...99.9 GΩ: Resolution: 0.1 GΩ, accuracy: ± (3% v.M. such + 10 digits); range insulation resistance 100...999 GΩ: Resolution: 1 GΩ, accuracy: ±(3.5% v.M. such + 10 digits); range insulation resistance 1.00...9.99 TΩ: Resolution: 0.01 TΩ, accuracy: ± (7.5% v.M. such + 10 digits); Range - insulation resistance 10...40 tω: Resolution: 0.1 TΩ, accuracy: ± (12.5% v.M. such + 10 digits); range insulation voltage 50 V: 200 GΩ (AutoISO-5000 Adapt.: 20 GΩ); range isolation voltage 100V: 400 GΩ (AutoISO-5000 Adapt.: 40 GΩ); Range Insulation voltage 250 V: 1.00 TΩ (AutoISO-5000 Adapt.: 100 GΩ); Range Insulation voltage 500 V: 2.00 TΩ (AutoISO-5000 Adapt: 200 GΩ); range insulation voltage 1000 V: 4.00 TΩ (AutoISO-5000 Adapt.: 400 GΩ); Range - insulation voltage 2500 V: 10.00 TΩ (AutoISO-5000 Adapt.: 400 GΩ); range insulation voltage 5000 V: 20.0 TΩ (AutoISO-5000 Adapt.: 400 GΩ); range insulation voltage 10000 V:40 tω; Level Test uiso 50...1000 V: 10 V step; Level Test Uiso 1000...5000 V: 25 V step; Level Test Uiso 5000...10000 V: 25 V step; range AC/DC measurement: 0.0.. 29.9 V, Resolution: 0.1 V, accuracy: ± (2% v.M. such + 20 digits); range AC/DC measurement: 30.. 299,9 V, Resolution: 0.1 V, accuracy: ± (2% v.M. such + 6 digits); range AC/DC measurement: 300. .750 V, Resolution: 1 V, accuracy: ± (2% v.M. such + 2 digits); frequency range: 45...65 Hz; test continuity measurement: ± 200 mA; range continuity measurement 0.00... 19.99 Ω: Resolution: 0.01 Ω, accuracy: ± (2% v.M. such + 3 digits); range continuity measurement 20.0... 199.9 Ω: Resolution: 0.1 Ω, accuracy: ± (2% v.M. such + 3 digits); range continuity measurement 200...999 Ω: Resolution: 1 Ω, accuracy: ± (4% v.M. such + 3 digits); range capacitance measurement 0...999 nF: Resolution: 1 nF, accuracy: ± (5% v.M. such + 5 digits); range capacitance measurement 1.00... 49.99 µF: Resolution: 0.01µF, accuracy: ± (5% v.M. such + 5 digits); range temperature measurement: -40,0 ... 99.9 °C, resolution 1 °C, accuracy: ± (3% v.M. such + 8 digits); range temperature measurement: -40,0 ... 211 °F, resolution: 1°F, accuracy: ± (3% v.M. such + 16 digits)
- Product type
Insulation tester
- Test voltage
50 V
100 V
250 V
500 V
1000 V
2500 V
5000 V
10000 V
- Reading type
Insulation resistance
ISO standards
- Dim
(L x W x H) 30 x 20 x 43 cm
- Weight
9.92 kg
- Display type
Digital
- Frequency range
- Insulation resistance (max.)
40 TΩ
- Reading category
CAT III 1000 V
CAT IV 600 V
- Width
20 cm
- Height
43 cm
- Length
30 cm
Variants(All information is without VAT, plus shipping costs)
Calibrated to
Test voltage
Sonel MIC-10k1 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V 40 TΩ
This article
ISO standards
50 V
Minimum order quantity: 1
Multiple: 1
€ 3,688.24*
Sonel MIC-10 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V 10 GΩ
ISO standards
50 V
Minimum order quantity: 1
Multiple: 1
€ 436.13*

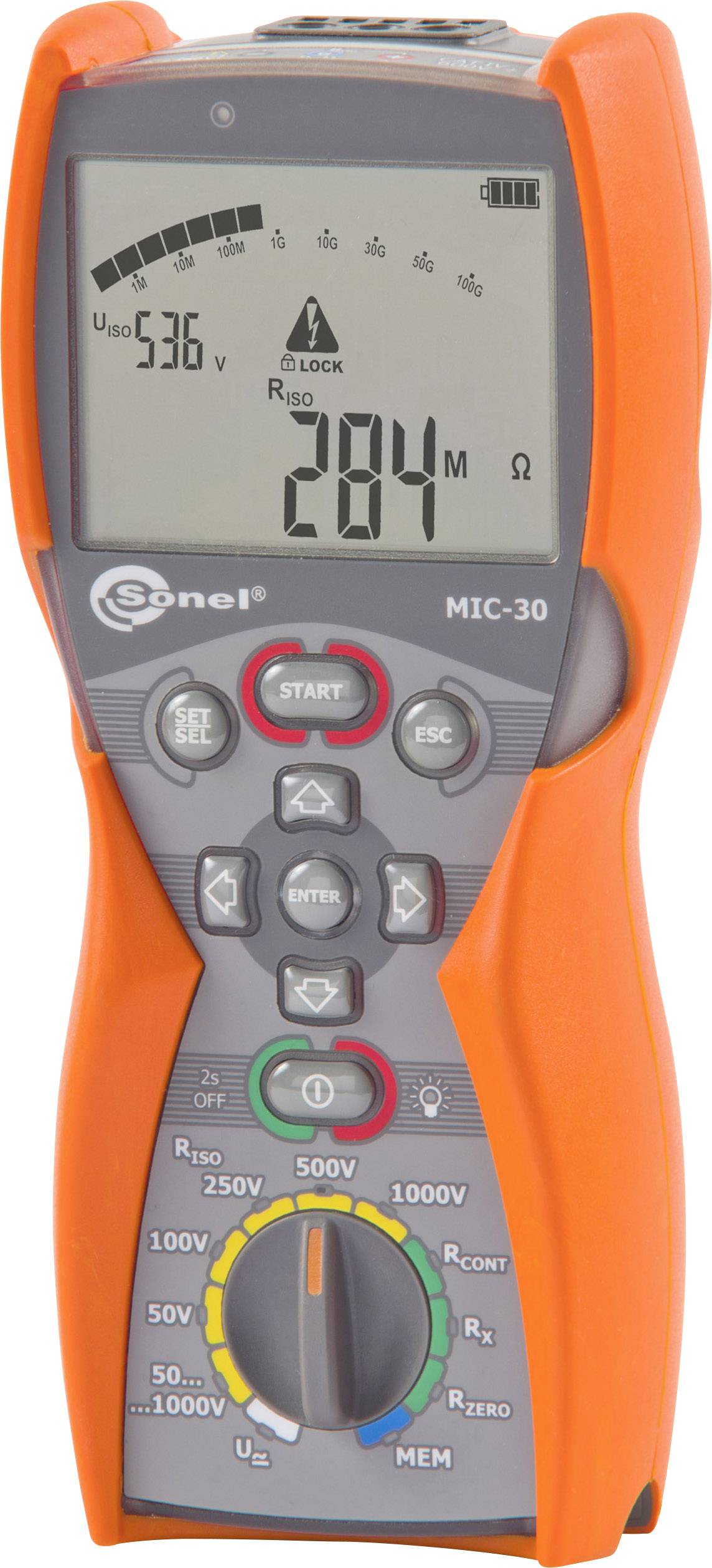

Sonel MIC-30 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V 100 GΩ
ISO standards
50 V
Minimum order quantity: 1
Multiple: 1
€ 679.83*
Sonel MIC-5005 Insulation tester Calibrated to (ISO standards) 250 V, 500 V, 1000 V, 2500 V, 5000 V 15 TΩ
ISO standards
250 V
Minimum order quantity: 1
Multiple: 1
€ 1,452.94*
Sonel MIC-30 Insulation tester Calibrated to (DAkkS standards) 50 V, 100 V, 250 V, 500 V, 1000 V 100 GΩ
DAkkS standards
50 V
Minimum order quantity: 1
Multiple: 1
Documents & Downloads
Datasheet
Datasheet 1427985 Sonel MIC-10k1 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000
User & Safety Instructions
User & Safety Instructions 1427985 Sonel MIC-10k1 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000
Information
Information 1427985 Sonel MIC-10k1 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000
Description
The new MIC-10K1 of sonel from the series of 10 kV Insulation test devices, now with extended measuring functions. You can resistances up to 40 Terra ohms at 10 kV test voltage according to EN 61557-2 can be measured. Even in the case of high-frequency interferences are absolutely precise measuring results. The new "burning", you can now also a locating the fault location can be carried out. All parameters on the diagnostic insulation measurement as PI,, DD, step test (SV), the capacity measurement as well as riso, RPE and temperature measurement can be carried out. This measuring processes can be displayed graphically on the display immediately or via Bluetooth to the PC-analysis software.
This text is machine translated.
This text is machine translated.
Features
- Robust IP67 hard shell case
- CAT III 1000 V
- CAT IV 600V
- Test lead up to 20m.
- Alligator clips and probes for sensing
- Temperature probes
- Mains cable
- Rechargeable battery
- USB cable
- Sonel Reader software
- Measurements according to EN 61557
Scope of delivery
- Cable 11 kV, 3 m, (cat IV 1000 V), with banana sockets, blue
- Line 11 kV, 3 m, shielded, (cat IV 1000 V), with banana sockets, black
- Line 11 kV, 3 m, (cat IV 1000 V), with banana sockets, Red
- Alligator clip blue 11 kV 32 A
- Alligator clip black 11 kV 32 A
- Alligator clip red 11 kV 32 A
- USB cable
- Mains cable 230 V
- Bag
- Calibration certificate, issued by an accredited laboratory (MIC-10k1, MIC-10s1)
- Calibration certificate (MIC-5050, MIC-05s1).
Frequently Bought Together
(*All information is plus legal VAT) This article
Sonel MIC-10k1 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000
Conrad Electronic
€ 3,688.24*

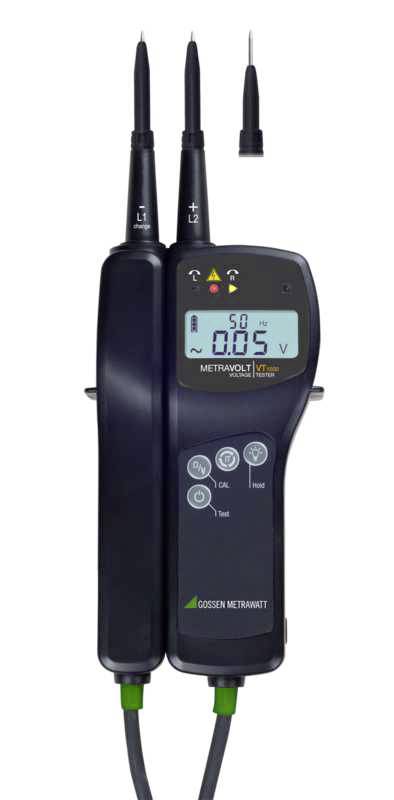

Gossen Metrawatt METRAVOLT VT 1500 Two-pole voltage tester CAT IV 1000 V LCD, LED
Conrad Electronic
€ 536.97*

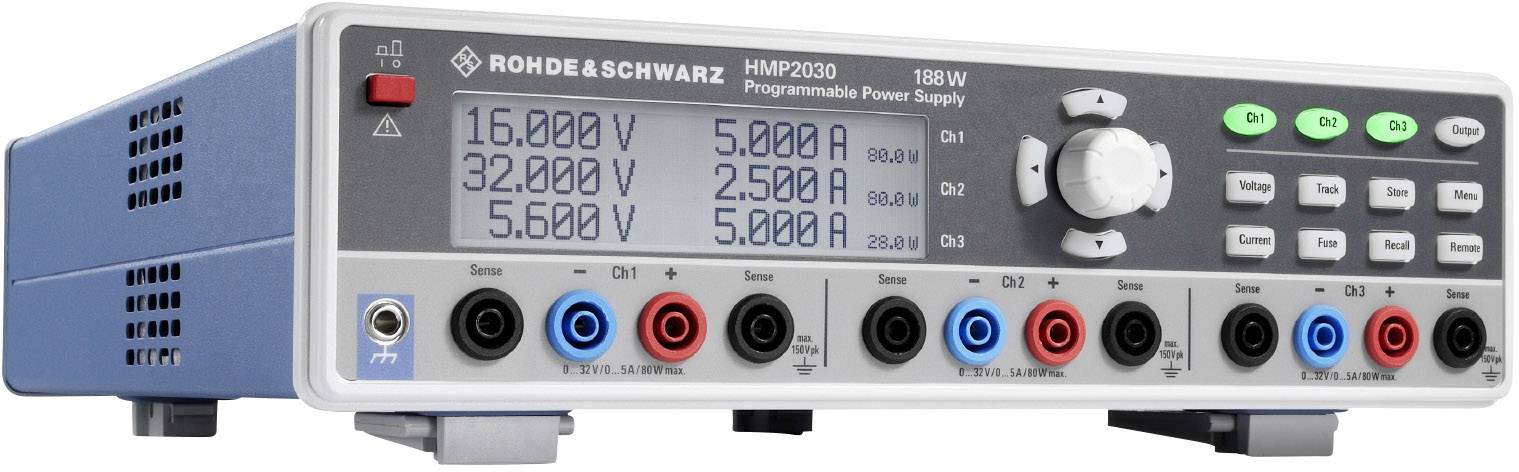

Rohde & Schwarz HMP2030 Bench PSU (adjustable voltage) 32 V (max.) 5 A (max.) 188 W remote controlled, programmable No.
