Name: SPAX 0191040500803 Countersunk screw 5 mm 80 mm T-Star Plus Steel 100 pc(s)
Brand: SPAX
SKU: 3742575
Availability: InStock

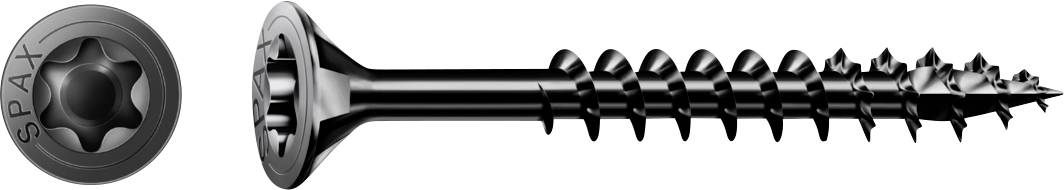

Two views of a SPAX screw: a close-up of the head on the left and the full threaded screw on the right, shown on a white background.

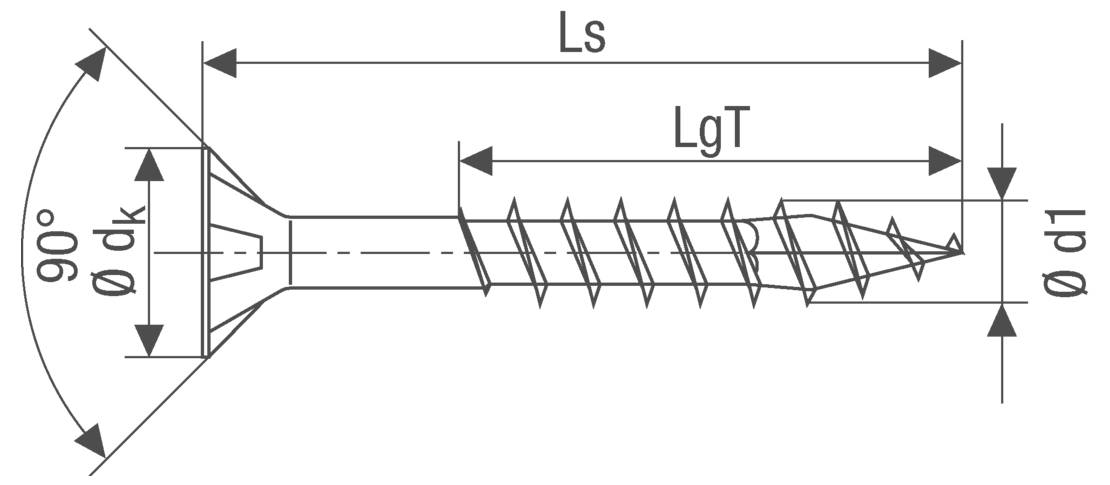

Technical screw diagram showing 90° countersunk head, head diameter dk, body length Ls, thread length LgT, and tip diameter d1.

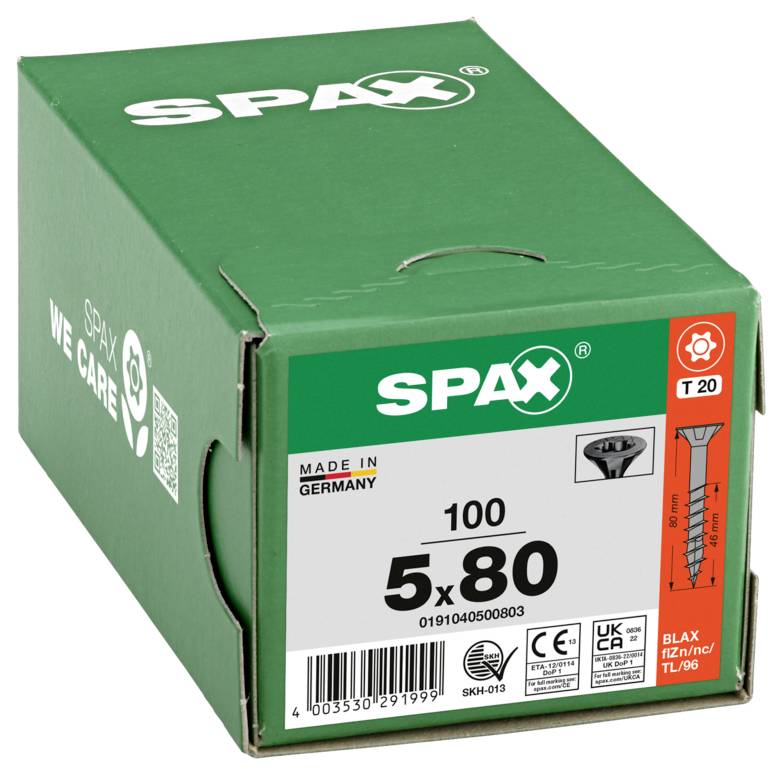

Green SPAX screw box labeled '5x 80' and 'Made in Germany,' with product and size details on the front.

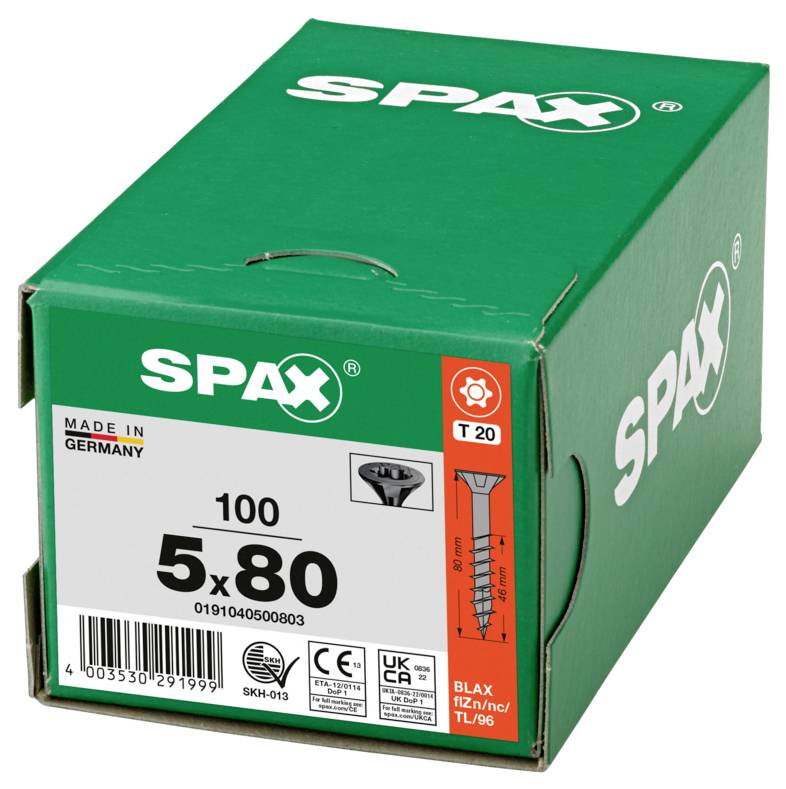

Green SPAX screw box labeled '5x80', '100', and 'Made in Germany', showing T20 drive and screw type illustration.

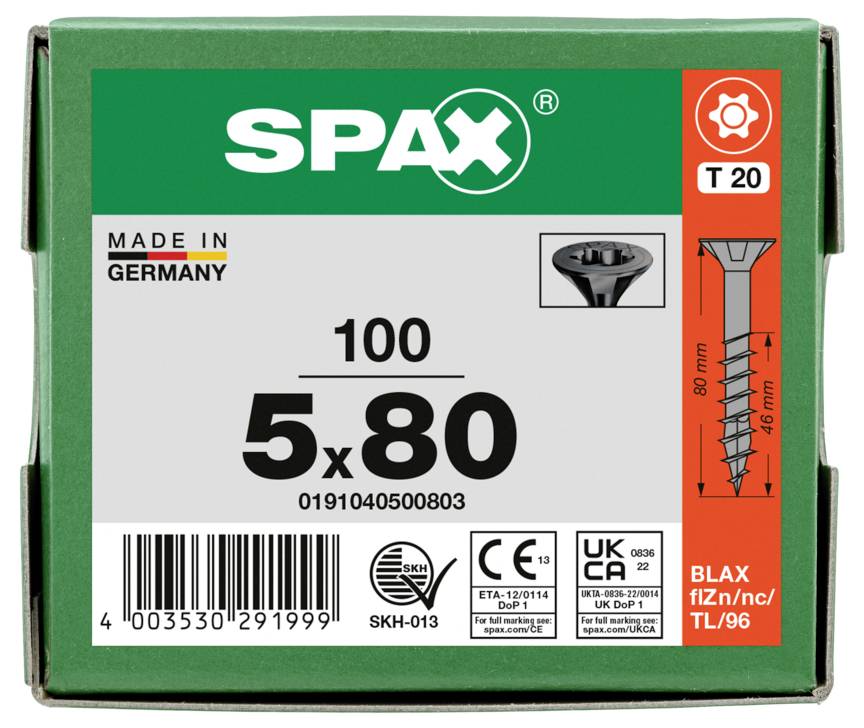

Box of SPAX screws, labeled '100 5x80', 'Made in Germany', with a screw illustration and product/barcode details.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

16 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SPAX SINK MULTIHEAD T-STAR PLUS T20 PART THREAD BLK ZINC PLATED 100ST

Without pre-drilling (depending on wood)
Fast and safe processing with low application of force (more fittings with one battery charging)
Can be used everywhere
Reduces effectively the splice of wood material even with small edge distances

Technical specifications

Head diameter: 9.7 mm
Head base: MULTI head
Head angle: 90º
Blade size T20
Thread shape: Partial thread
Thread length: 46 mm
Surface: Black BLAX
Corrosion protection code: FlZn/NC/TL/96
Tip: 4CUT
MIG certificate: Yes
MPA certificate: Yes
CE 12/0114 certificate: Yes

Product type: Countersunk screw

Drive: T-Star Plus

Material: Steel

(Ø): 5 mm

Length: 80 mm

Head shape: Countersunk

Dim: (Ø x L) 5 mm x 80 mm

Content: 100 pc(s)

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Length

(Ø)

SPAX 0191040300303 Countersunk screw 3 mm 30 mm T-Star Plus Steel 200 pc(s)

Item no:3742603

Fast track dispatch on Wed 4 Nov

2 Set(s)Conrad Electronic

30 mm

3 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

SPAX 0191040300353 Countersunk screw 3 mm 35 mm T-Star Plus Steel 200 pc(s)

Item no:3742601

Fast track dispatch on Wed 4 Nov

10 Set(s)Conrad Electronic

35 mm

3 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.49^*

SPAX 0191040300403 Countersunk screw 3 mm 40 mm T-Star Plus Steel 200 pc(s)

Item no:3742595

Fast track dispatch on Wed 4 Nov

3 Set(s)Conrad Electronic

40 mm

3 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.99^*

SPAX 0191040350303 Countersunk screw 3.5 mm 30 mm T-Star Plus Steel 200 pc(s)

Item no:3742605

Fast track dispatch on Wed 4 Nov

11 Set(s)Conrad Electronic

30 mm

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

SPAX 0191040350353 Countersunk screw 3.5 mm 35 mm T-Star Plus Steel 200 pc(s)

Item no:3742599

Fast track dispatch on Wed 4 Nov

3 Set(s)Conrad Electronic

35 mm

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.49^*

SPAX 0191040350403 Countersunk screw 3.5 mm 40 mm T-Star Plus Steel 200 pc(s)

Item no:3742597

Fast track dispatch on Wed 4 Nov

1 Set(s)Conrad Electronic

40 mm

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.99^*

SPAX 0191040350453 Countersunk screw 3.5 mm 45 mm T-Star Plus Steel 200 pc(s)

Item no:3742585

Fast track dispatch on Wed 4 Nov

5 Set(s)Conrad Electronic

45 mm

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.49^*

SPAX 0191040400303 Countersunk screw 4 mm 30 mm T-Star Plus Steel 200 pc(s)

Item no:3742598

Fast track dispatch on Wed 4 Nov

10 Set(s)Conrad Electronic

30 mm

4 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.49^*

SPAX 0191040400353 Countersunk screw 4 mm 35 mm T-Star Plus Steel 200 pc(s)

Item no:3742594

Fast track dispatch on Wed 4 Nov

7 Set(s)Conrad Electronic

35 mm

4 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.49^*

SPAX 0191040400403 Countersunk screw 4 mm 40 mm T-Star Plus Steel 200 pc(s)

Item no:3742590

Fast track dispatch on Wed 4 Nov

6 Set(s)Conrad Electronic

40 mm

4 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742575 SPAX 0191040500803 Countersunk screw 5 mm 80 mm T-Star Plus Steel 100 pc(s)

Description

The SPAX-typical T-STAR plus drive is a so-called Torx socket. This shape increases the attack surface in our T-STAR plus, and the T-STAR plus bits fit optimally in the screw head. The best possible power transfer from screwdriver to screw by T-STAR plus enables a fast working, and much more efficient than with all other drives.

The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.

In contrast to the partial thread, the full thread extends over the entire length of the screw. The more threads a screw has, the greater the tensile and compressive forces that can be deflected from screw to wood via it. Our threaded screws are used mainly for high-strength wood joints.

The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.

BLAX surface in a powerful metallic black shade. Applicable according to EN 1995-1-1 in utilization class 1

This text is machine translated.

Hints

The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.

The screws with partial thread are extremely suitable for attaching thin components such as wood material plates, boards or boards to thicker components such as square timber or beams. The short thread screws into the thick component; the thread-free shaft remains in the attachment part. This gives rise to the maximum contact pressure between the two. The thread-free part should be at least equal to the thickness of the attachment part.

The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.
