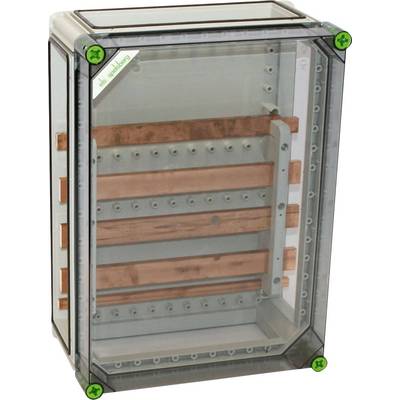

Spelsberg 04135601 GSi 356 Plus Switchboard cabinet Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
320 mm
Height
440 mm
Depth
179 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 276.47 / piece)
€
Technical specifications
- Protection system: IP65
- Number of pins: 5
- Rated current rail system 630 A.
- Material: Plastic
- Cover type: Transparent
- Product type
Switchboard cabinet
- Mounting type
Surface-mount
- Width
320 mm
- Height
440 mm
- Dim
(W x H x D) 320 x 440 x 179 mm
- Depth
179 mm
- Mounting
Busbar
- Content
1 pc(s)
Surface mounted (plaster)
320
440 mm
179 mm
5
Plastic
IP65
3R
Documents & Downloads
Datasheet
Datasheet 2379729 Spelsberg 04135601 GSi 356 Plus Switchboard cabinet Surface-mount Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379729 Spelsberg 04135601 GSi 356 Plus Switchboard cabinet Surface-mount Content 1 pc(s)
Description

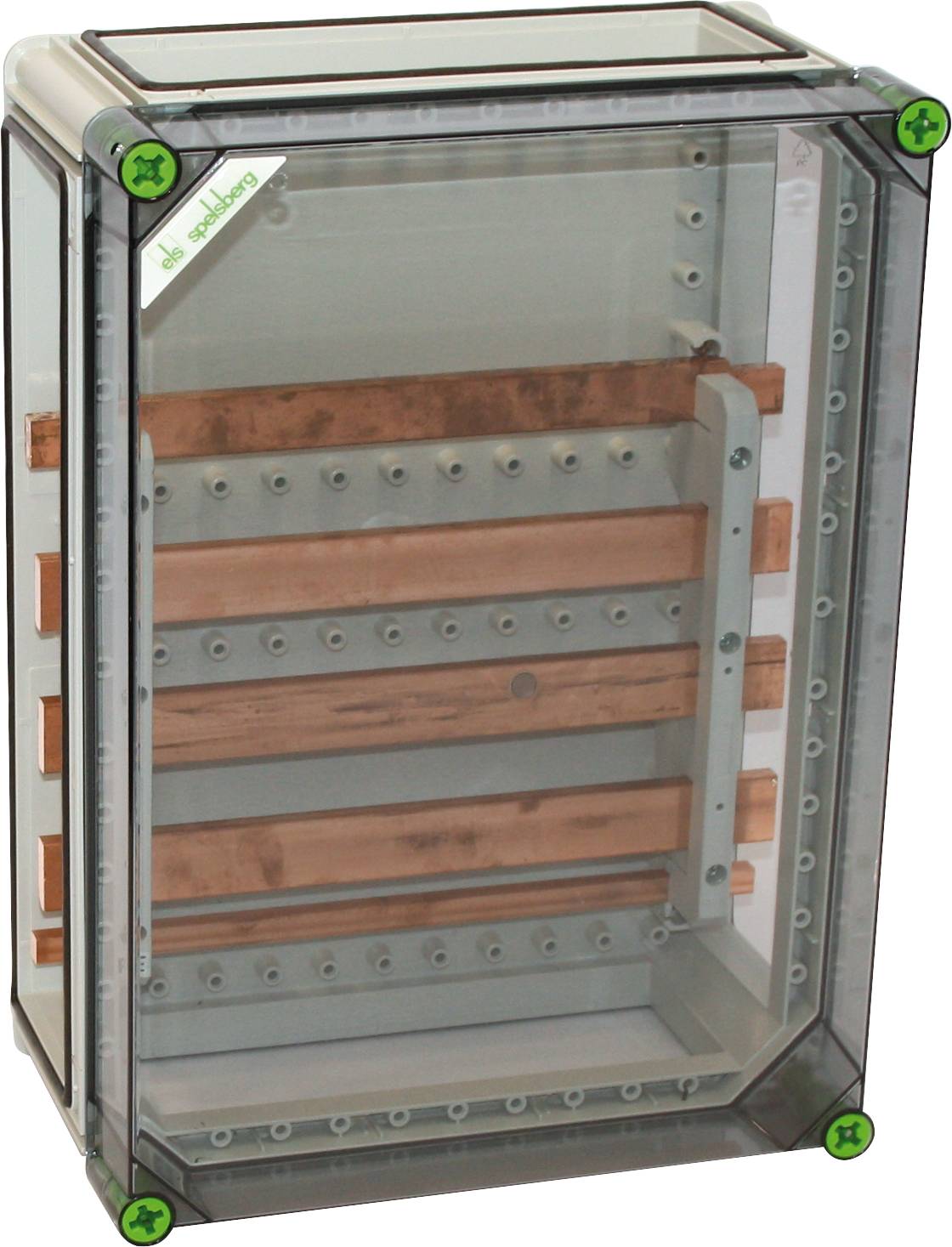

Busbar housing with additional connection space, industrial quality, busbar system, 5-pole, without terminals, For individual assembly, with transparent cover, 3 x housing connectors (GGV), with 5-pin 630A busbar system, with CU rails, L1...L3: 30 x 10mm, N: 25 x 10mm, PE: 12 x 10mm
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
